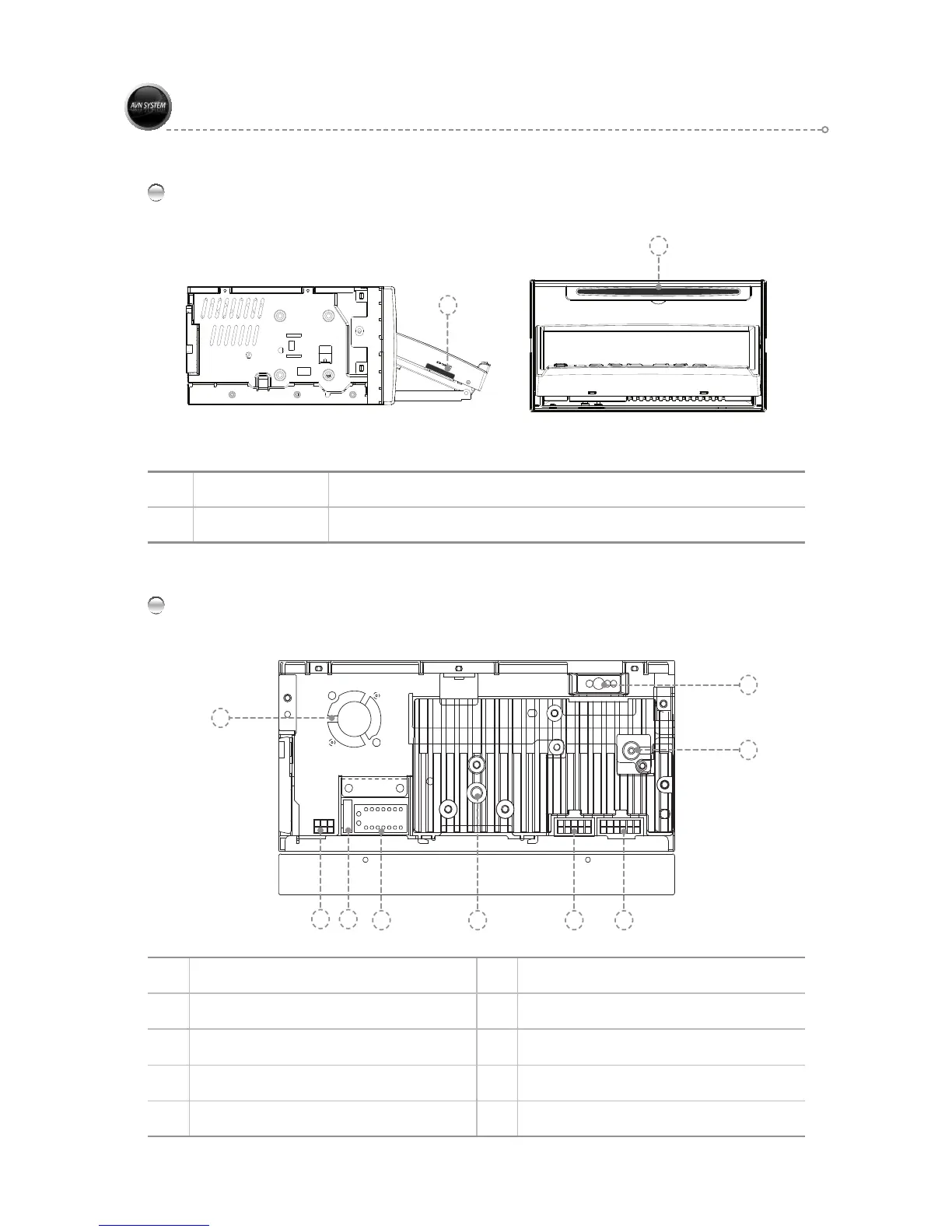

Main Unit - Left Side

Main Unit - Rear

4 5 6 7

Part Names and Functions

1 Fan 6 AV IN PUT Connection

2 Steering Connection 7 Preout Connection

3 Fuse (20A) 8 External Cable Ass'y

4 VCC Connection & Speaker 9 SAT.RADIO Cable Ass'y

5 Center Hole

1 SD CARD Slot

The SD Card Slot is visible when the TILT button is pressed.

2 CD Slot

The CD Slot is visible when the EJECT button is pressed.




