Procedural Instructions on the TSC
8
SpaceStation, 2.0 gb 8- 3
2.0
Housing Leakage Current
(with the SpaceStation with SpaceCom)
Measurement is to be carried out at nominal voltage +10% in sin-
gle fault condition (SFC = Single Fault Condition) incl. mains ca-
ble.
1. Measure the housing leakage current between mains input at
the mains cable and the metal frame of the Ethernet (RJ 45)
connection in the SpaceCom plug strip.
Note
The metal frames of the connectors in the SpaceCom plug strip
are connected with each other.
2. Document value.

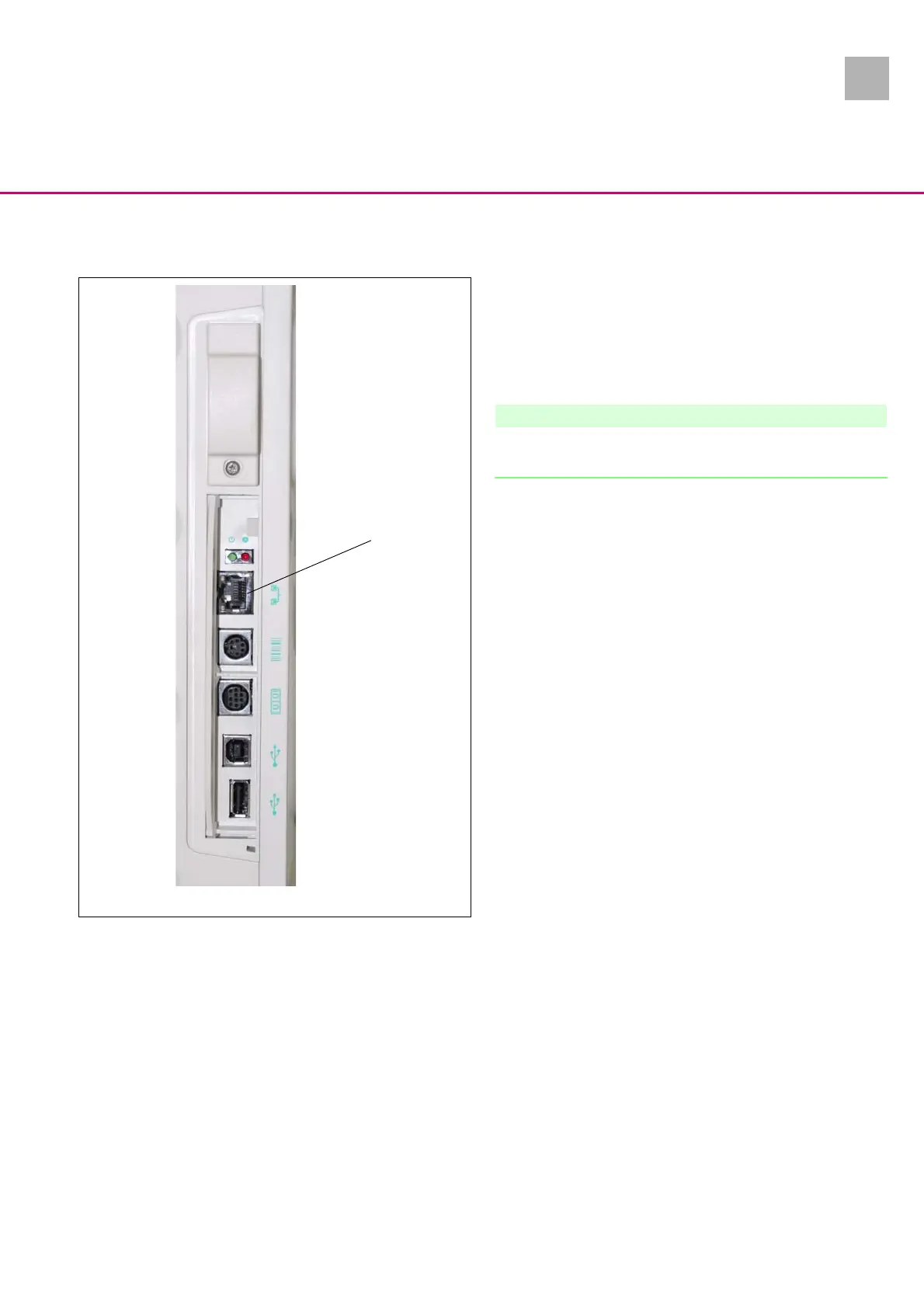

Abb.: 8 - 1
Legende zu Abb. 8 - 1:
ItemDesignation
1 Metal frame of the Ethernet (RJ 45) connection
1
