Disassembly / Assembly SpaceStation
3
SpaceStation, 1.0 gb 3- 13
1.0
5. Loosen two screws (Abb.: 3 - 13 / Item 1) and remove screws
together with the insulating washers (Abb.: 3 - 13 / Item 3)
from the interface board (Abb.: 3 - 13 / Item 2).
6. Put the interface board carefully aside for all further activi-
ties.
Note
Take care not to squeeze the interface board ribbon cable.

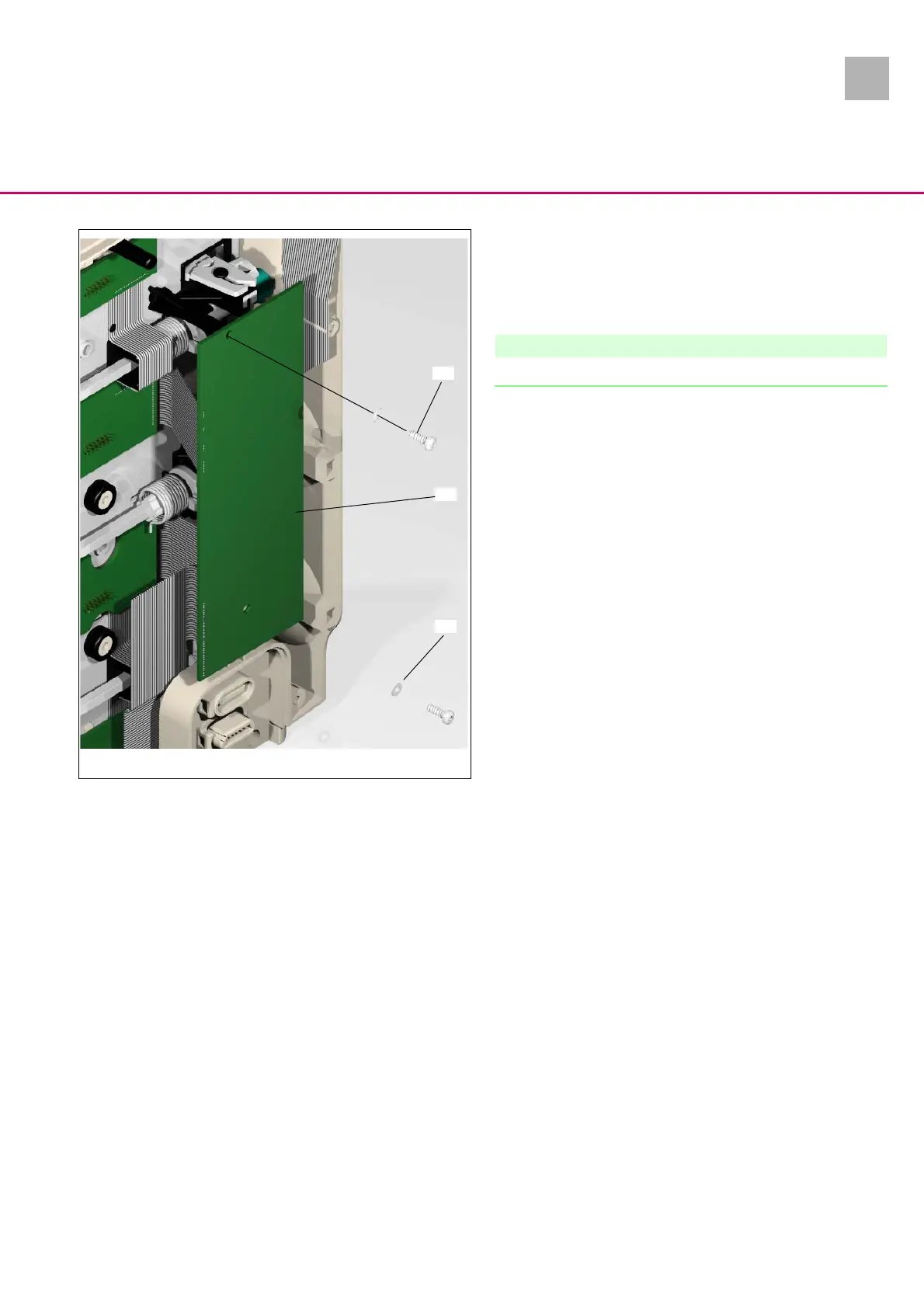

Abb.: 3 - 13
Legende zu Abb. 3 - 13:
ItemDesignation
1 Screw EJOT 30x9 WN 5452 TORX 10IP A2
2 Interface board
3 Insulating washer M3
1
3
2
