Disassembly / Assembly SpaceStation
3
3- 22 SpaceStation, 1.0 gb
1.0
2. Tighten the data connector holder screws to connectors F3
and F4 with a torque of 0.25 – 0.05 Nm.
3. Install the subsystem interface board / module lock in the
housing in such a way that the rubber cable lies in the hous-
ing bottom.
CAUTION
When mounting the data connector holder make sure that the
rubber cable is not squeezed between the housing and the con-
nector holder. This would result in an incorrect sealing of the
housing and damage to the rubber cable.

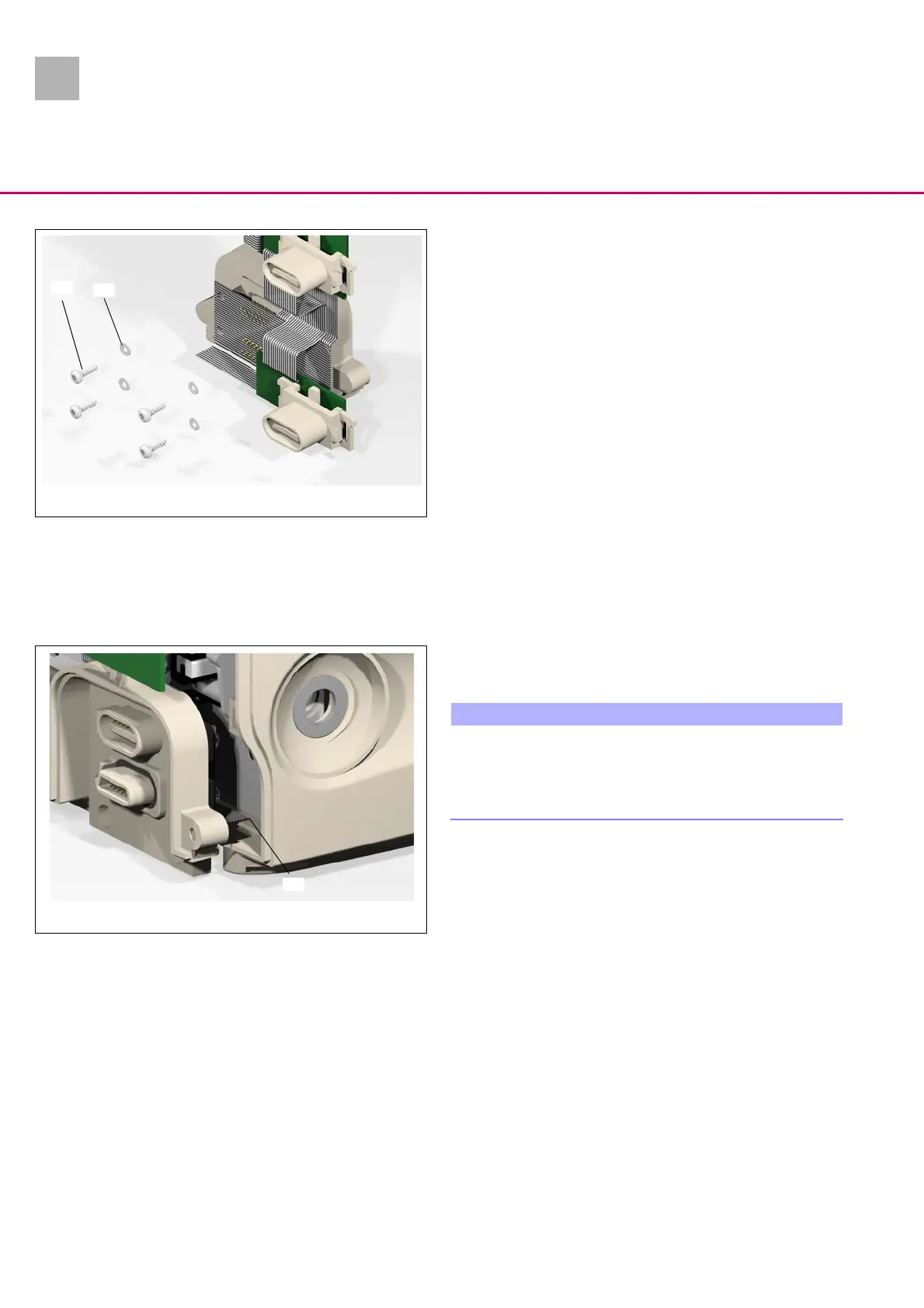

Abb.: 3 - 24
Legende zu Abb. 3 - 24:
ItemDesignation
1 Screw EJOT 30x9 WN 5452 TORX 10IP A2S
2 Insulating washer M3
1
2
Abb.: 3 - 25
Legende zu Abb. 3 - 25:
ItemDesignation
1 Rubber cable
1
