Disassembly / Assembly SpaceCom
4
4- 8 SpaceStation, 2.0 gb
2.0
5. Pull off connector (Abb.: 4 - 6 / Item 2) of the fan connecting
cable (Abb.: 4 - 6 / Item 1) at the SPCO board.
6. Unscrew one screw (Abb.: 4 - 7 / Item 2) and remove the con-
tact strip (Abb.: 4 - 7 / Item 1) carefully out of the housing
back panel.
Note
If necessary, the spring-mounted contact pins must be carefully
inserted when the contact strip is dismounted.

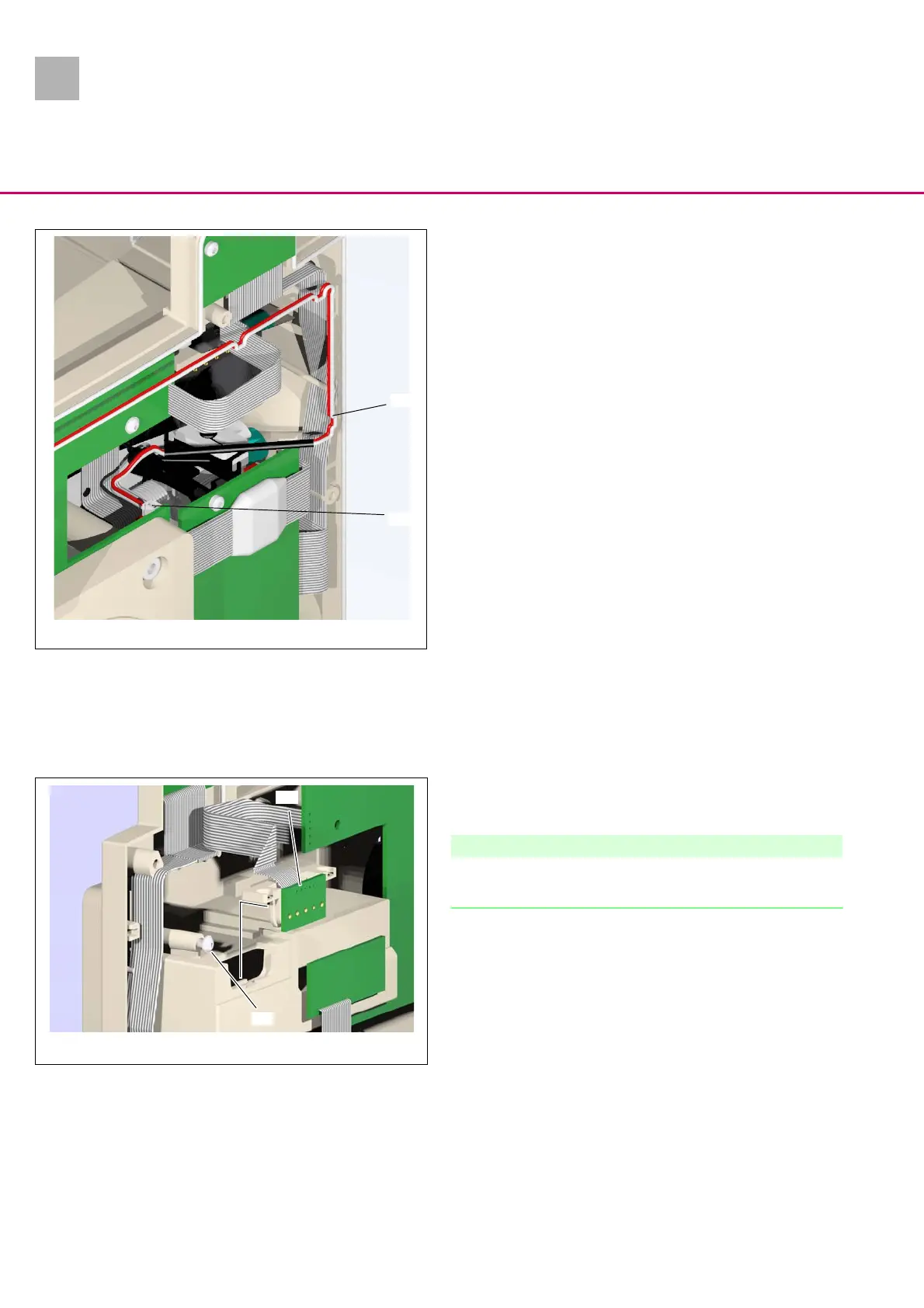

Abb.: 4 - 6
Legende zu Abb. 4 - 6:
ItemDesignation
1 Fan connecting cable (presented without back panel)
2 Connector
2
1
Abb.: 4 - 7
Legende zu Abb. 4 - 7:
ItemDesignation
1Contact strip
2 Screw A2 WN 5452 30x9
2
3
