Disassembly / Assembly SpaceCom
4
SpaceStation, 2.0 gb 4- 9
2.0
Disassembly
Designation Ord. No.
Housing back panel SPCO . . . . . . . . . . . . . . . . . . . . . . . 3452 1052
Fan SPCO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3452 1048
Cover caps and screws
(see „Service Parts and Screw Kit“ ➨ S. 4 - 2)
1. Note and outline the cable layout of the fan connecting cable
(Abb.: 4 - 8 / Item 3).
2. Unscrew four screws (Abb.: 4 - 8 / Item 1).
3. Remove fan grid (Abb.: 4 - 8 / Item 4) out of the housing back
panel (Abb.: 4 - 8 / Item 2).
4. Remove fan (Abb.: 4 - 8 / Item 5) out of the housing back
panel.

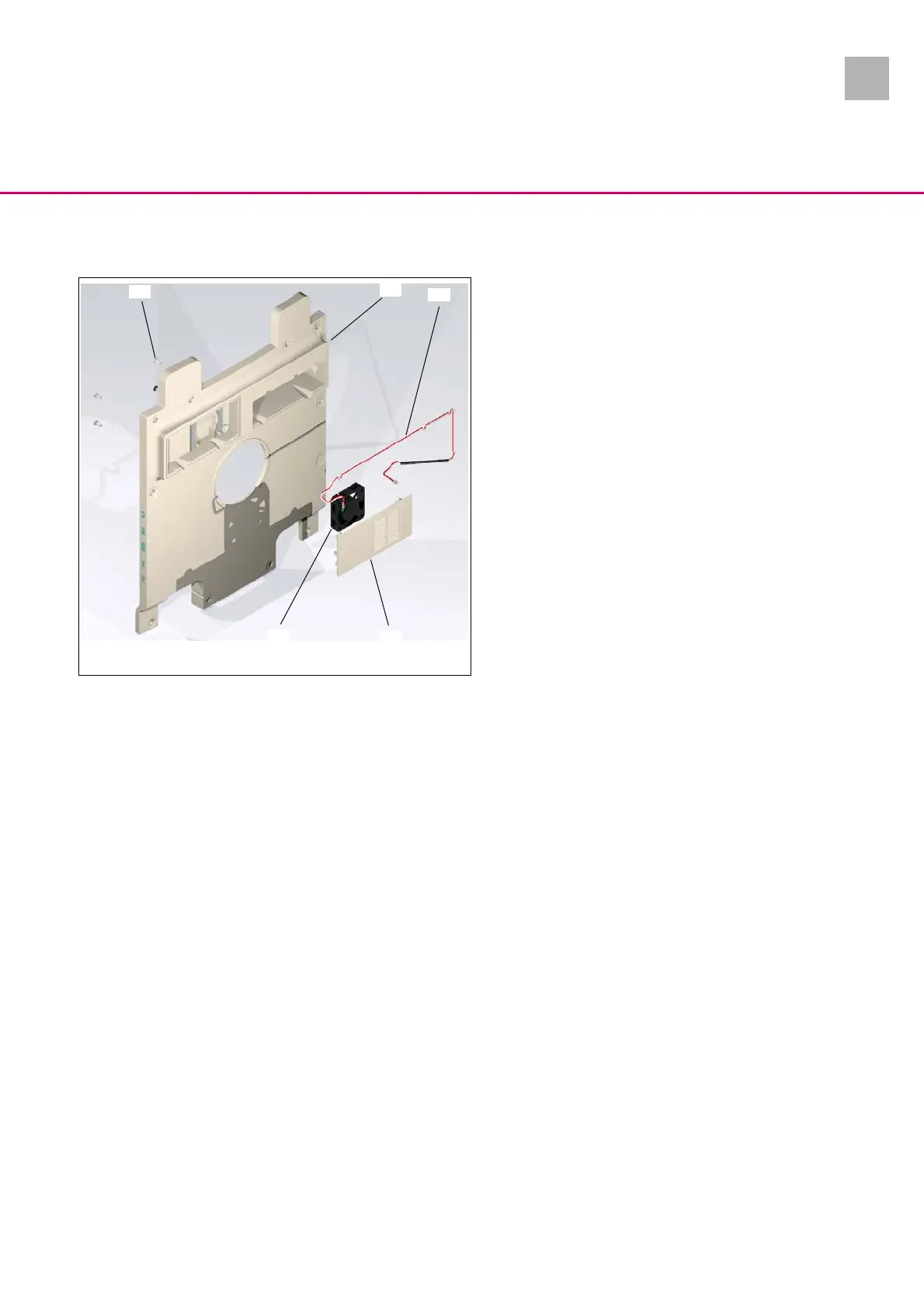

Abb.: 4 - 8
Legende zu Abb. 4 - 8:
ItemDesignation
1 Screw EJOT 30x9 WN 5452 TORX 10IP A2
2 Housing back panel SPCO
3 Fan connecting cable
4 Fan grid SPCO
5 Fan SPCO
3
2
1
4
5
