2. Nonport Side of Device
6. Fasten the port side of the device to the rack rails. Use three 10-32 x 5/8 inch (1.58 cm) screws per rail. Tighten the
screws to a torque of 37 cm-kg. (32 in.-lb). See the following figure.

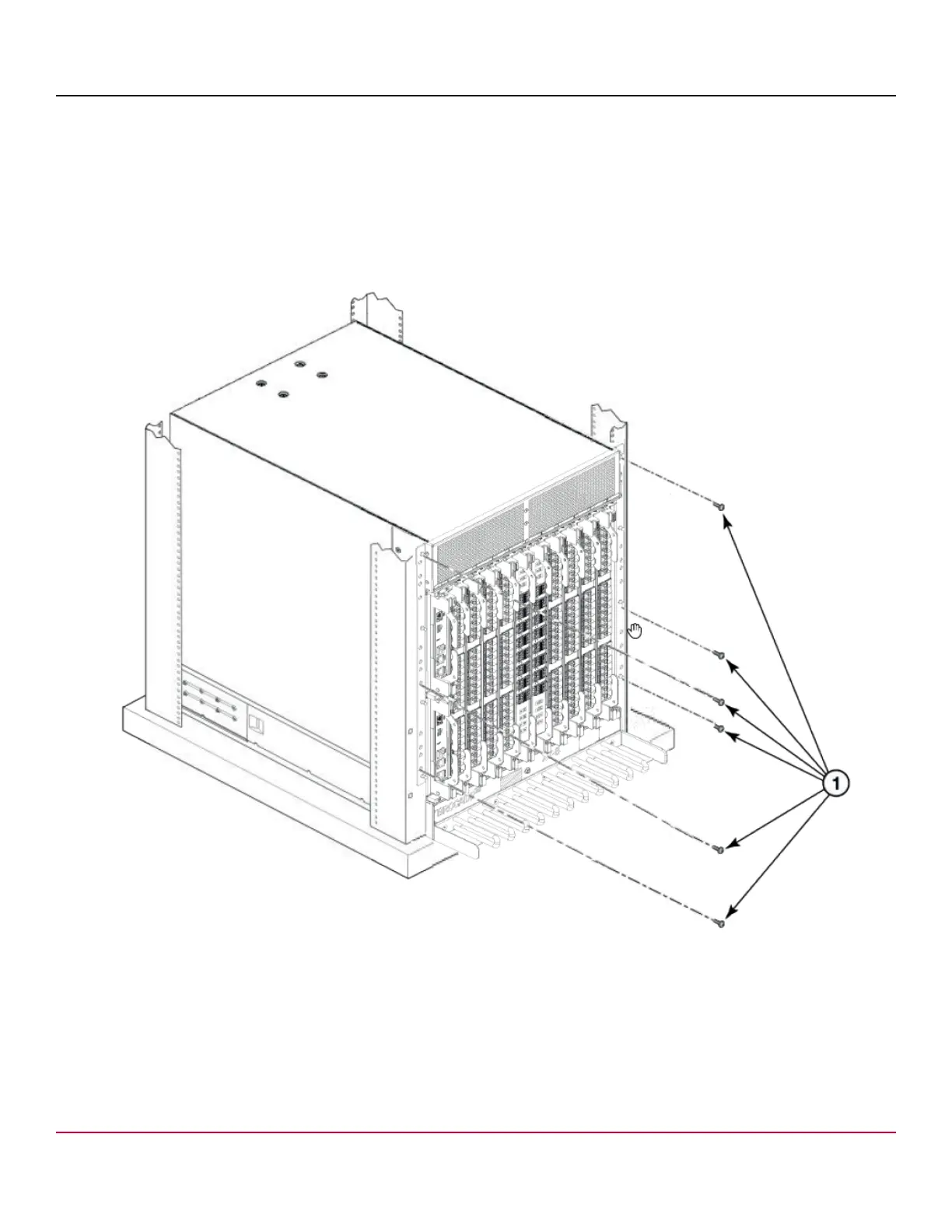

Figure 7: Attaching the Port Side of the Device to Rack Rails
1. 10-32 x 5/8 in. (1.58 cm) Panhead Phillips Screw with Washer
