Perform the following steps to load the device into the mid-mount trays.
1. Ensure that the door is removed from the port side of the device. For instructions, see the door removal and
replacement procedures in your device installation guide.
2. Orient the device (see the following figure) and use a hydraulic lift to raise it to the level of the trays.
3. If applicable, lock the wheels of the lift.
4. Slide the device into the trays until the front edge of the device is seated against the front tray.

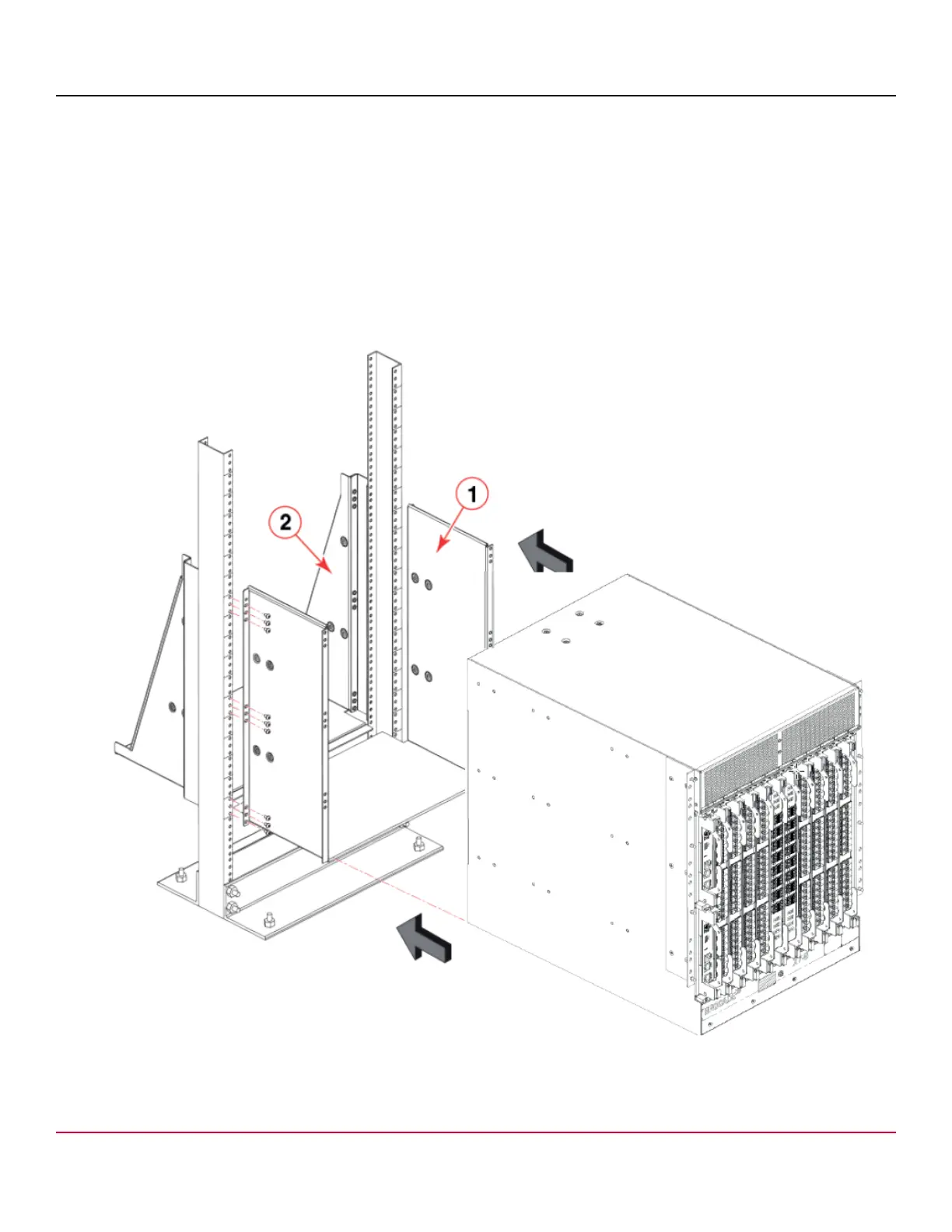

Figure 11: Placing the Device in the Trays
1. Tray, Front, Mid-Mount, Chassis
