Brother DCP-L5652DN Service Manual

3-44
Confidential
Fig. 3-34

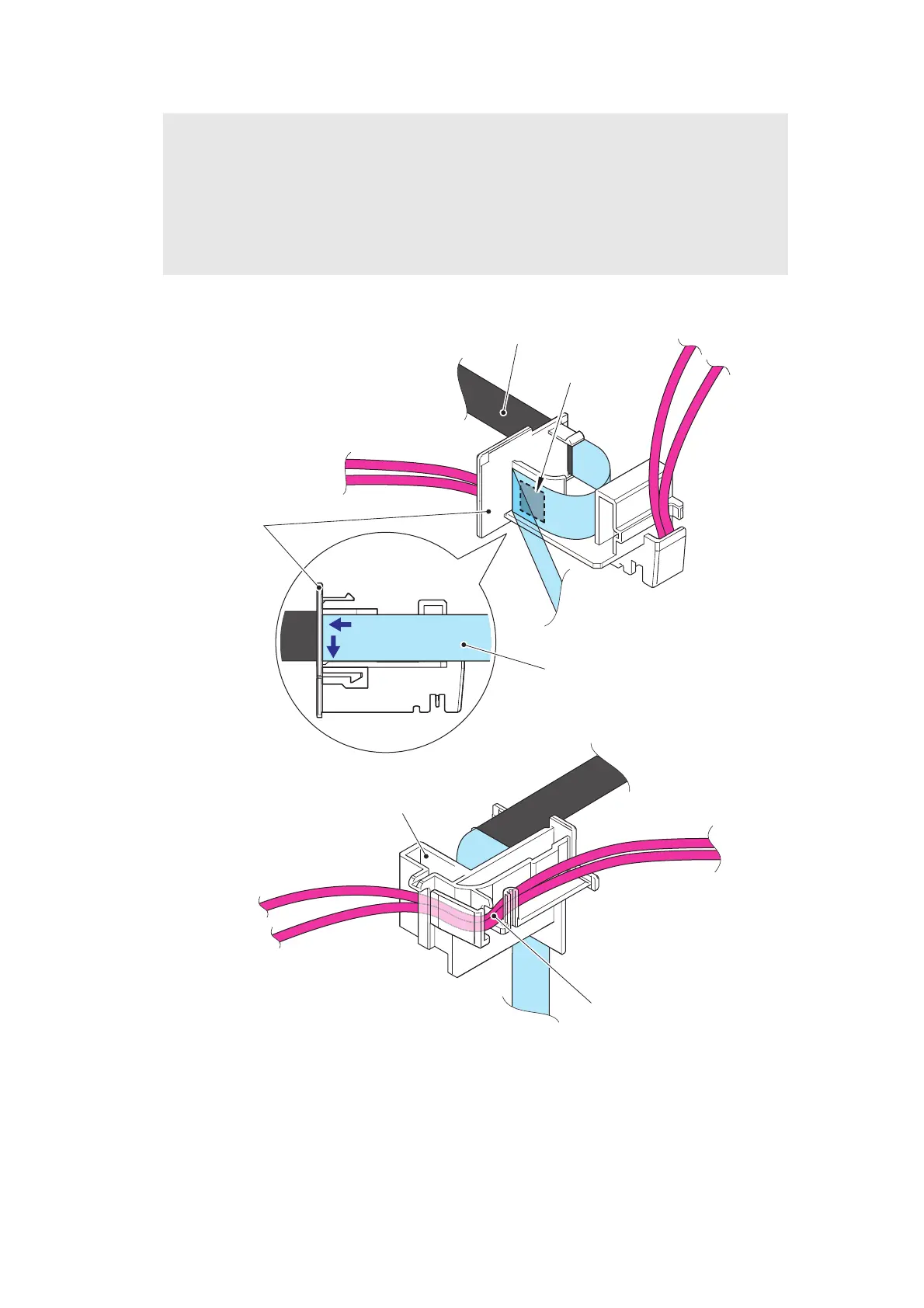

Assembling Note:
• Connect the ADF sensor harness and second side CIS flat cable* to the flat cable
holder as described in the figure below.
• In order to attach the second side CIS flat cable to the flat cable holder, attach it
properly in the direction of the arrows.
• For the sticking position of the double-sided tape, refer to the folding diagram of the flat
cable, Fig. 3-46, Fig. 3-47 and Fig. 3-48.
Second side CIS flat cable*
Flat cable holder
Double-sided tape
ADF sensor harness
* Models with duplex scanning only
Flat cable holder
Second side CIS flat cable*

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
