Brother DCP-L5652DN Service Manual

3-89
Confidential

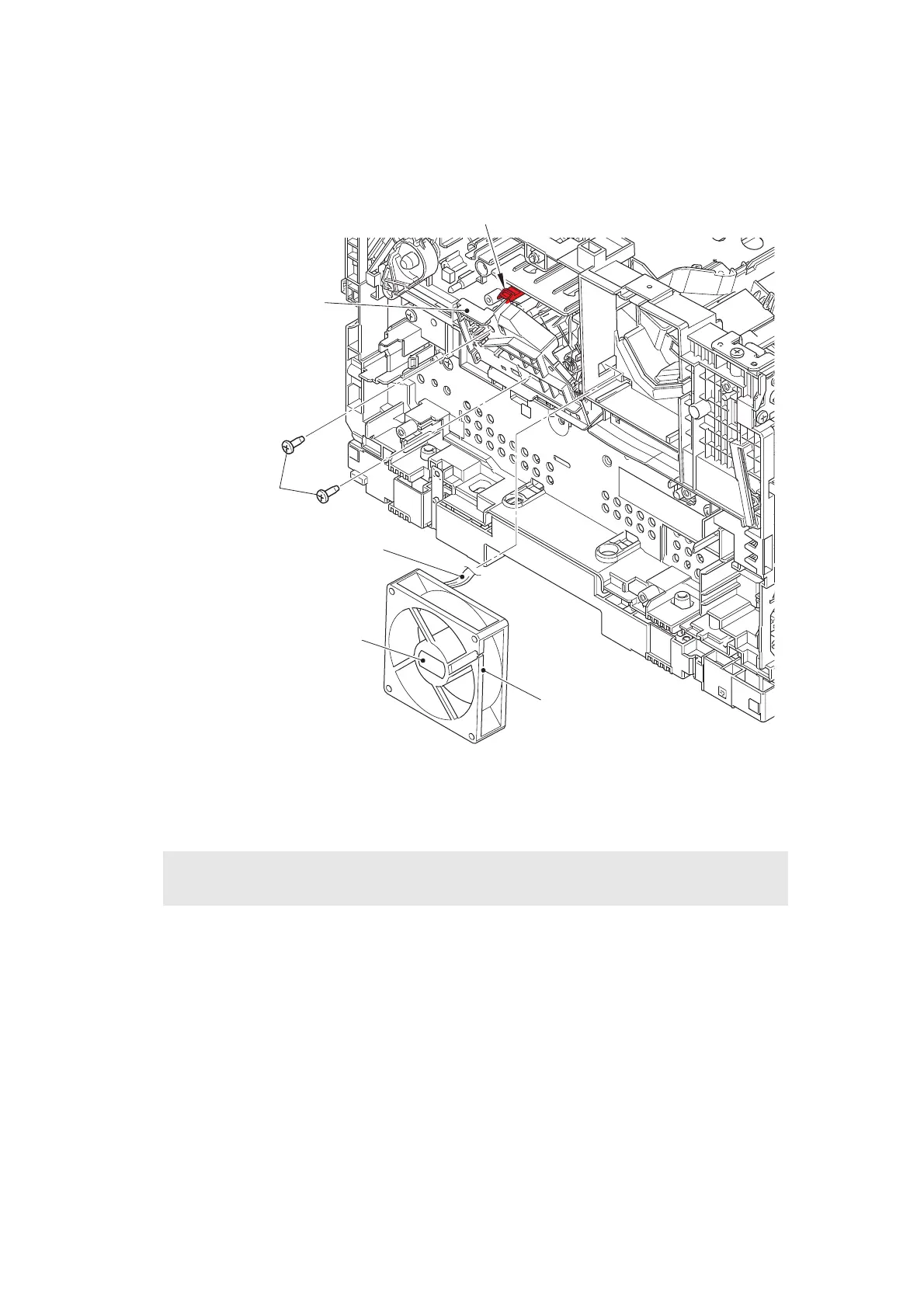

(2) Remove the two taptite bind B M4x12 screws. Release the hook, and open the upper
side of the hold cover 2.
(3) Release the main fan harness from the securing fixtures. Remove the main fan, and pull
out the main fan harness from the hole.
Fig. 3-89
Harness routing: Refer to “11. Rear side of the machine”.
Assembling Note:
• Attach the main fan so that the surface with the label faces out.
Main fan
Label
Taptite bind B M4x12
Hold cover 2
Hook
Main fan harness

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
