Brother DCP-L5652DN Service Manual

7-5
Confidential

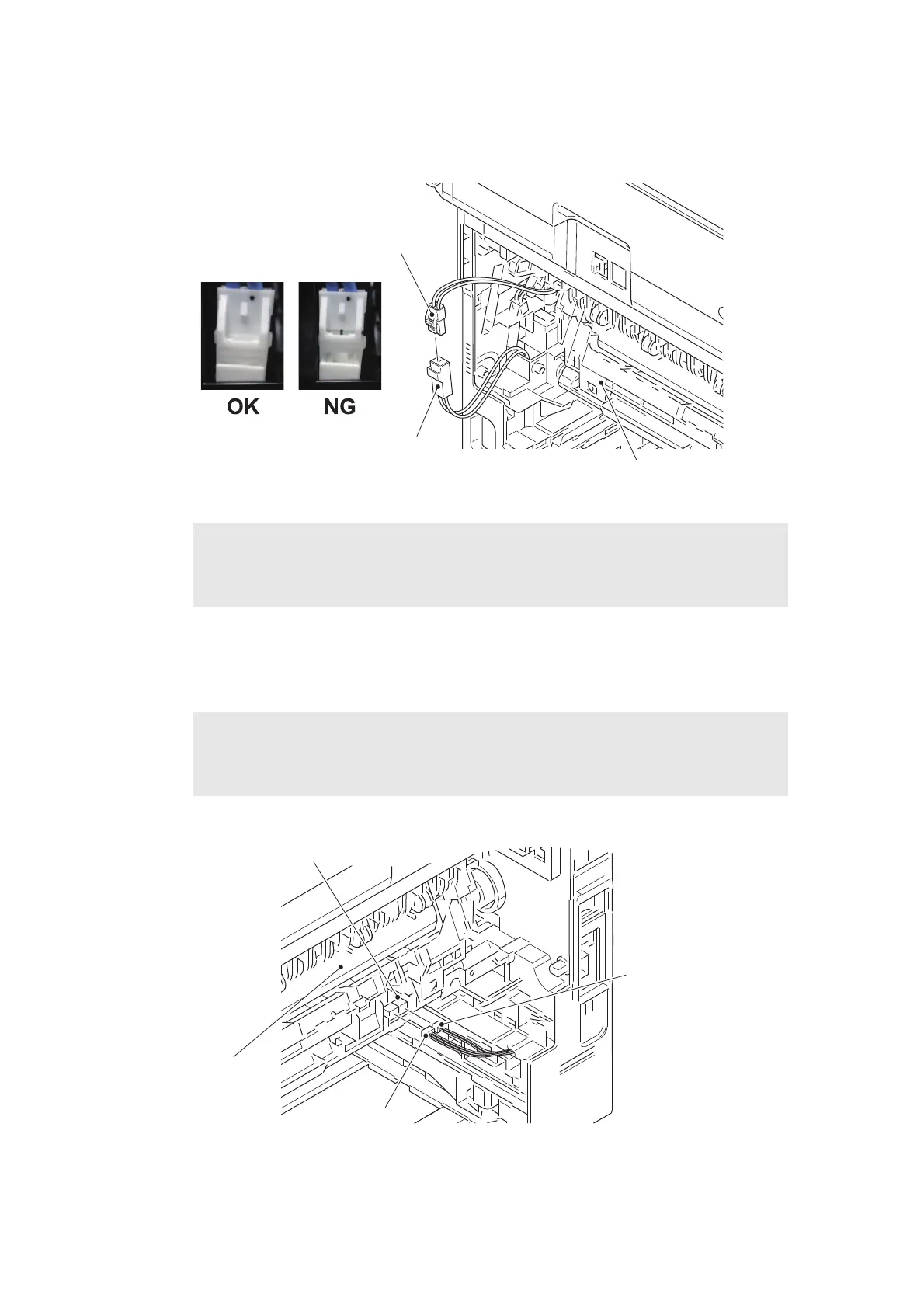

(11) Release the heater harness of the fuser unit from the securing fixtures, and disconnect it
from the low-voltage heater harness.
Fig. 7-6
Harness routing: Refer to “11. Rear side of the machine”.
(12) Disconnect the center thermistor harness and the side thermistor harness from the eject
sensor PCB ASSY.
Fig. 7-7
Harness routing: Refer to “11. Rear side of the machine”.
Assembling Note:
• After connecting the heater harness, pull the connector on the heater harness side while
holding the connector on the low-voltage heater harness side to make sure it is locked.
Note:
• When disconnecting the harness, hold the top of the PCB connector to prevent the
PCB connector being damaged.
<Frame R side>
Heater harness
Fuser unit
Low-voltage heater harness
Center thermistor
harness
Eject sensor PCB ASSY
Side thermistor
harness
Fuser unit
<Frame L side>

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
