Brother MFC-J2320 Service Manual

Confidential
2-76


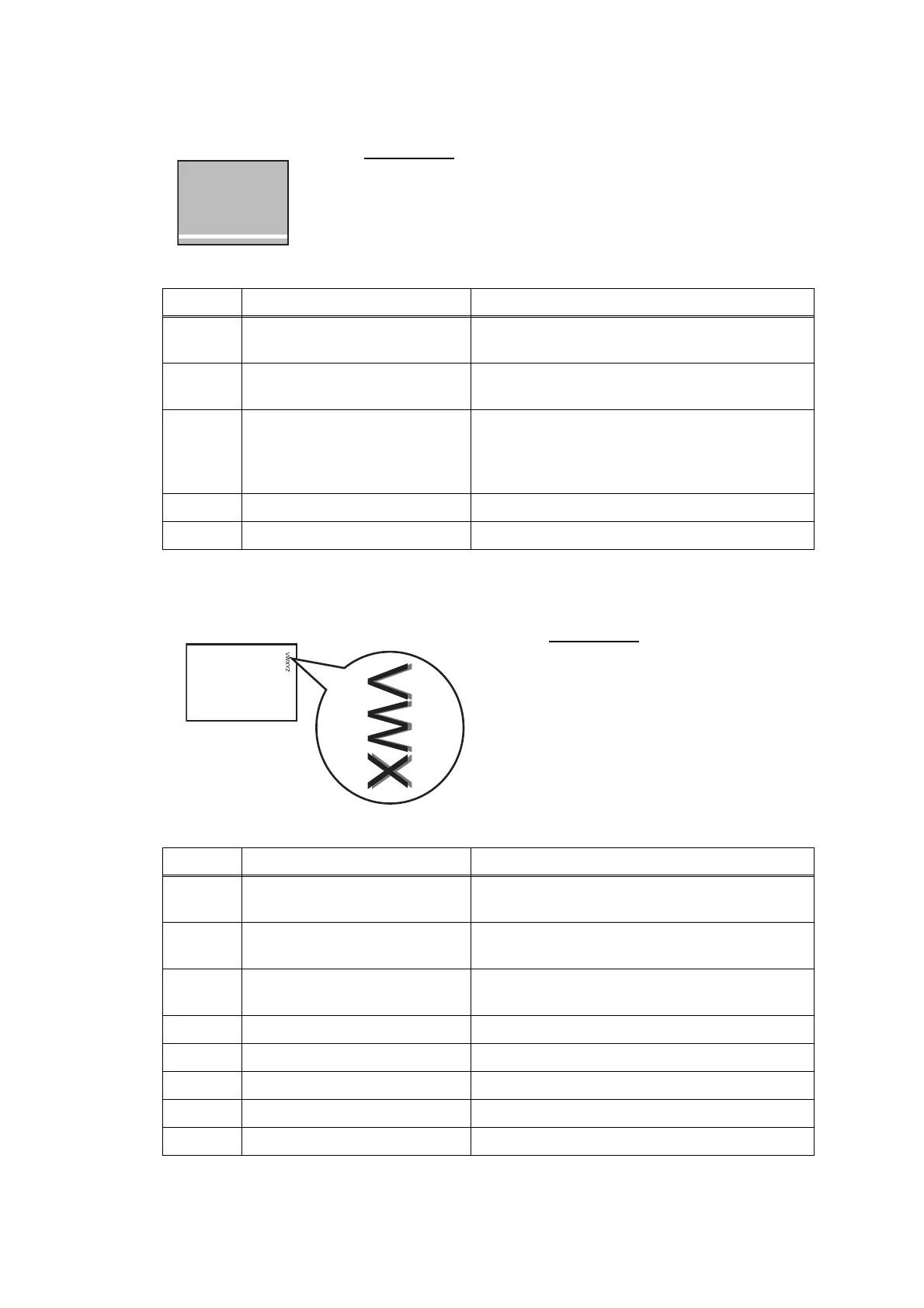

Separated lines at the trailing edge of the recording paper
 Characters having shadows (ghost)
User Check
- Carry out head cleaning.
Step Cause Solution
1 Paper feeding correction value
not updated
Adjust the paper feeding correction value (refer
to Chapter 5, Section 1.3.19.)
2 PF encoder disk stained Clean the PF encoder disk and flushing guide
(refer to Chapter 3, Section 1.)
3 Non-discharge of ink from
head
Carry out the recommended purge procedures
(refer to the recommended procedures in
Chapter 5, Section 1.3.29 "Purge Operation
(Maintenance mode 76)".)
4 PF encoder disk defective Replace the PF encoder disk.
5 Main PCB defective Replace the main PCB ASSY.
User Check
- Carry out head cleaning.
Step Cause Solution
1 Paper feeding correction value
not updated
Adjust the paper feeding correction value (refer
to Chapter 5, Section 1.3.19.)
2 Vertical print lines not aligned Adjust vertical print line alignment (refer to
Chapter 5, Section 1.3.23.)
3 PF encoder disk stained Clean the PF encoder disk and flushing guide
(refer to Chapter 3, Section 1.)
4 CR encoder strip stained Clean the CR encoder strip.
5 PF encoder disk defective Replace the PF encoder disk.
6 CR encoder strip defective Replace the CR encoder strip.
7 Head defective Replace the head/carriage unit.
8 Main PCB defective Replace the main PCB ASSY.

Brother MFC-J2320 Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi
Max Print Resolution	6000 x 1200 dpi
Max Print Size	A3
Scanner Type	Flatbed with ADF
Max Scan Resolution	1200 x 2400 dpi
Copy Speed (Black)	12 cpm
Copy Speed (Color)	9 cpm
Paper Tray Capacity	250 sheets
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Display	2.7" LCD touchscreen
Paper Handling	A3, A4
