Brother MFC-J2320 Service Manual

3-8
Confidential

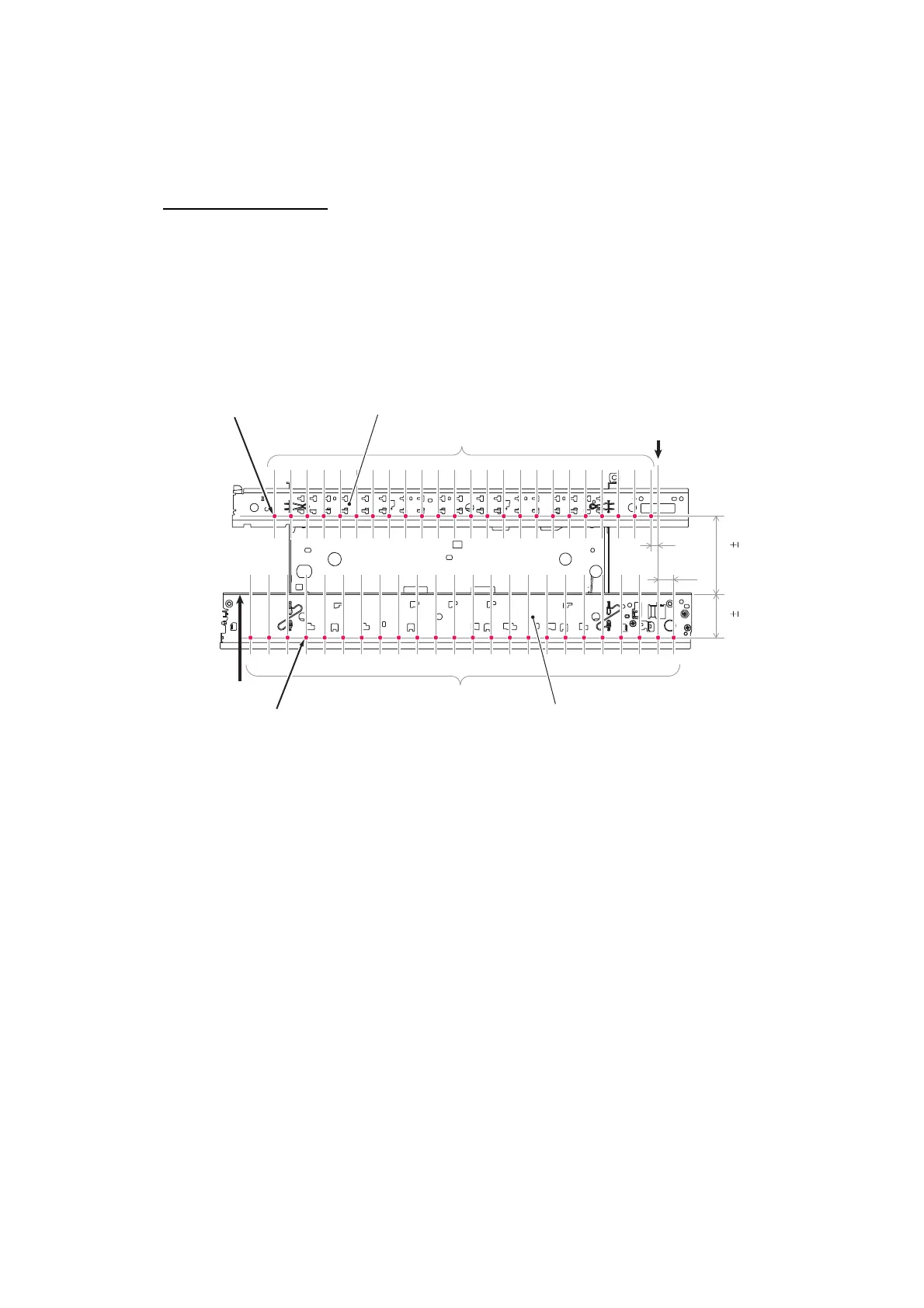

 CR guide rail and CR frame (top face)
Apply a 2 mm diameter ball of grease (FLOIL BG1319) to each of the 48 lubrication
points below.
Lubrication procedure
(1) Move the head/carriage unit to the left end of its travel.
(2) Before applying grease, wipe dust or dirt off the lubrication area with an alcohol
soaked cloth.
(3) Move the head/carriage unit from the left to the right ends of its travel to spread the
applied grease on the CR guide rail and CR frame.
4
14
42.65 0.5 76.05 0.5
Apply grease here.
CR guide rail
16.2 mm interval x 24
Home position of
head/carriage unit
Apply grease here.
Reference Y
17.8 mm interval x 24
CR frame
(mm)

Brother MFC-J2320 Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi
Max Print Resolution	6000 x 1200 dpi
Max Print Size	A3
Scanner Type	Flatbed with ADF
Max Scan Resolution	1200 x 2400 dpi
Copy Speed (Black)	12 cpm
Copy Speed (Color)	9 cpm
Paper Tray Capacity	250 sheets
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Display	2.7" LCD touchscreen
Paper Handling	A3, A4
