Brother MFC-J2320 Service Manual

3-9
Confidential

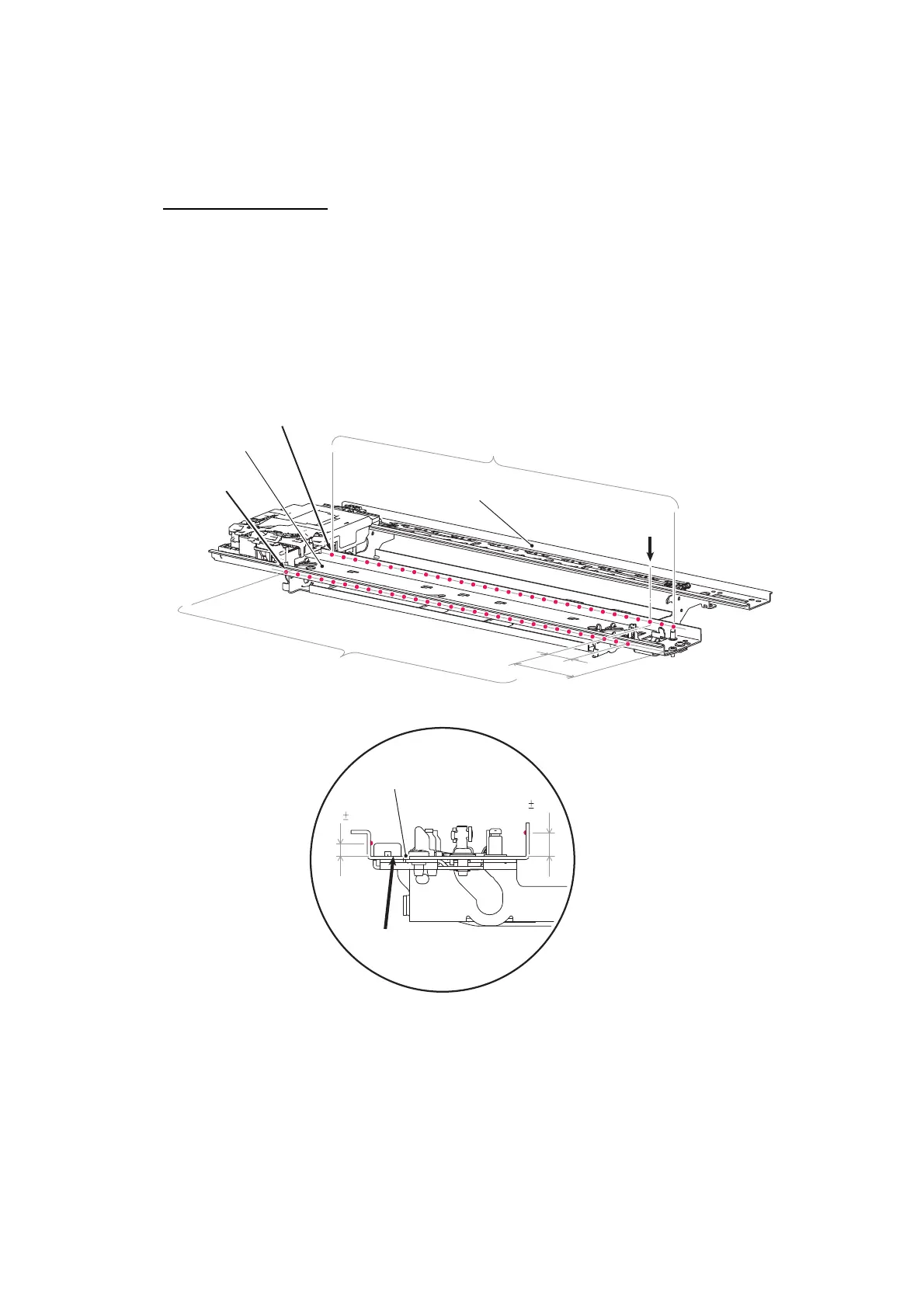

 CR frame (inner sides of the front and rear upright edges)
Apply a 2 mm diameter ball of grease (FLOIL BG1319) to each of the 60 lubrication
points below.
Lubrication procedure
(1) Move the head/carriage unit to the left end of its travel.
(2) Before applying grease, wipe dust or dirt off the lubrication area with an alcohol
soaked cloth.
(3) Move the head/carriage unit from the left to the right ends of its travel to spread the
applied grease on the CR guide rail and CR frame.
26
34.3
7.65 0.5
3.7 0.5
Apply grease here.
Apply grease
here.
CR frame
Home position of
head/carriage unit
CR guide rail
14.2 mm interval x 30
14.2 mm interval x 30
(mm)
CR frame
Reference on the
sliding surface Z

Brother MFC-J2320 Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi
Max Print Resolution	6000 x 1200 dpi
Max Print Size	A3
Scanner Type	Flatbed with ADF
Max Scan Resolution	1200 x 2400 dpi
Copy Speed (Black)	12 cpm
Copy Speed (Color)	9 cpm
Paper Tray Capacity	250 sheets
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Display	2.7" LCD touchscreen
Paper Handling	A3, A4
