Brother MFC-J2320 Service Manual

3-35
Confidential

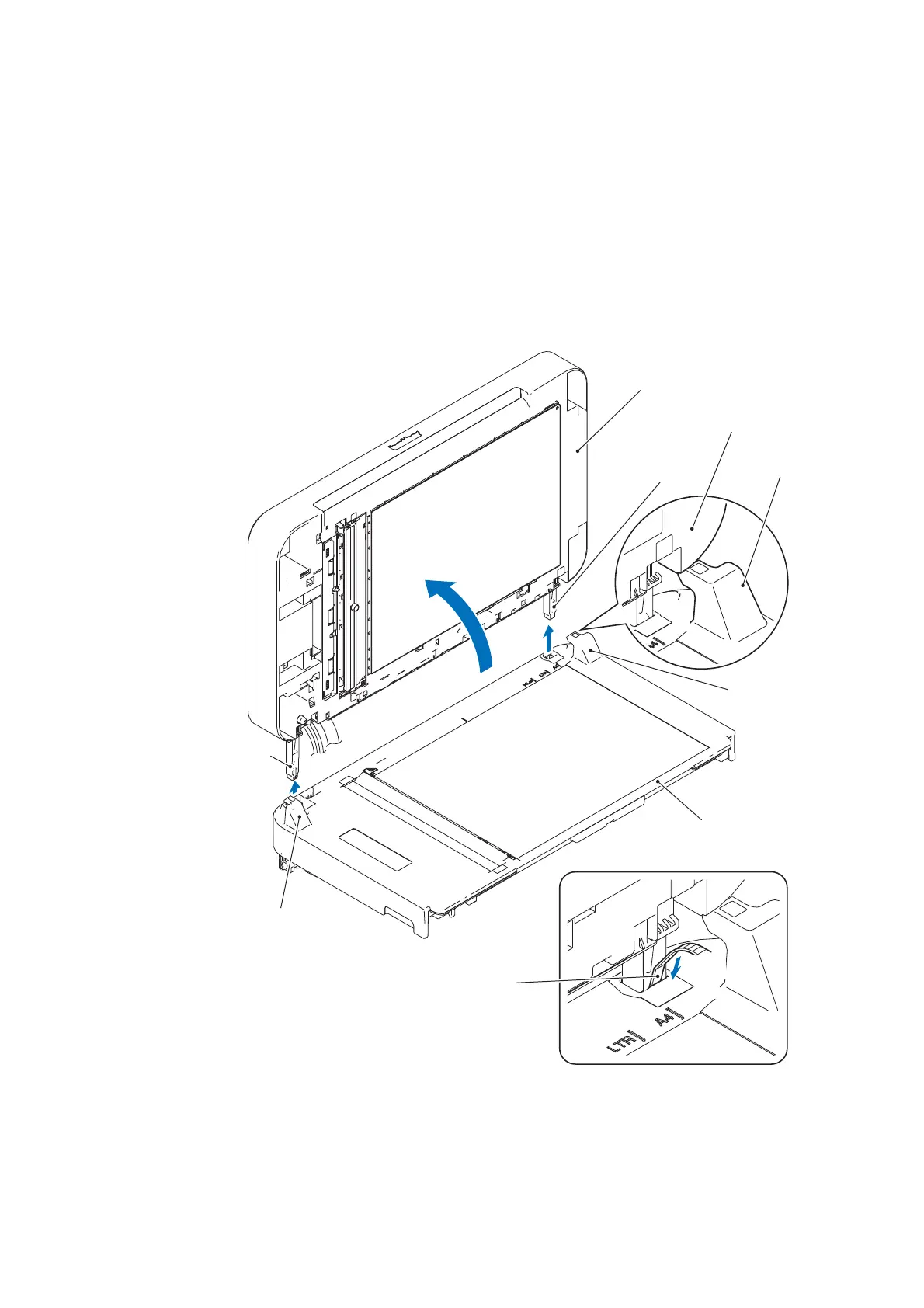

(10)Open the ADF unit, and raise it slightly avoiding the Stopper of the Document
scanner unit.
(11)From the front side of the ADF hinge L/R fitting hole, put in a cable tie-like tool with
its edge bent, and pull out the ADF unit.
(12)Pull the ADF unit harness off the Document scanner unit.
Assembling Note: Before wiring the harnesses of the ADF unit through the Harness
holder, put a 20-mm-thick pad on the Scanner glass of the Document scanner cover.
Otherwise, when you scan a thick book on the Scanner glass, the ADF unit cannot be
closed due to those tense harnesses.
Fig. 3-17
ADF unit
Stopper
Stopper
Stopper
11b
10
ADF unit
ADF hinge R
ADF
hinge L
Document
scanner unit
Cable tie
11a
11c

Brother MFC-J2320 Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi
Max Print Resolution	6000 x 1200 dpi
Max Print Size	A3
Scanner Type	Flatbed with ADF
Max Scan Resolution	1200 x 2400 dpi
Copy Speed (Black)	12 cpm
Copy Speed (Color)	9 cpm
Paper Tray Capacity	250 sheets
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Display	2.7" LCD touchscreen
Paper Handling	A3, A4
