Brother MFC-J2320 Service Manual

3-97
Confidential
<Except for US/CAN>

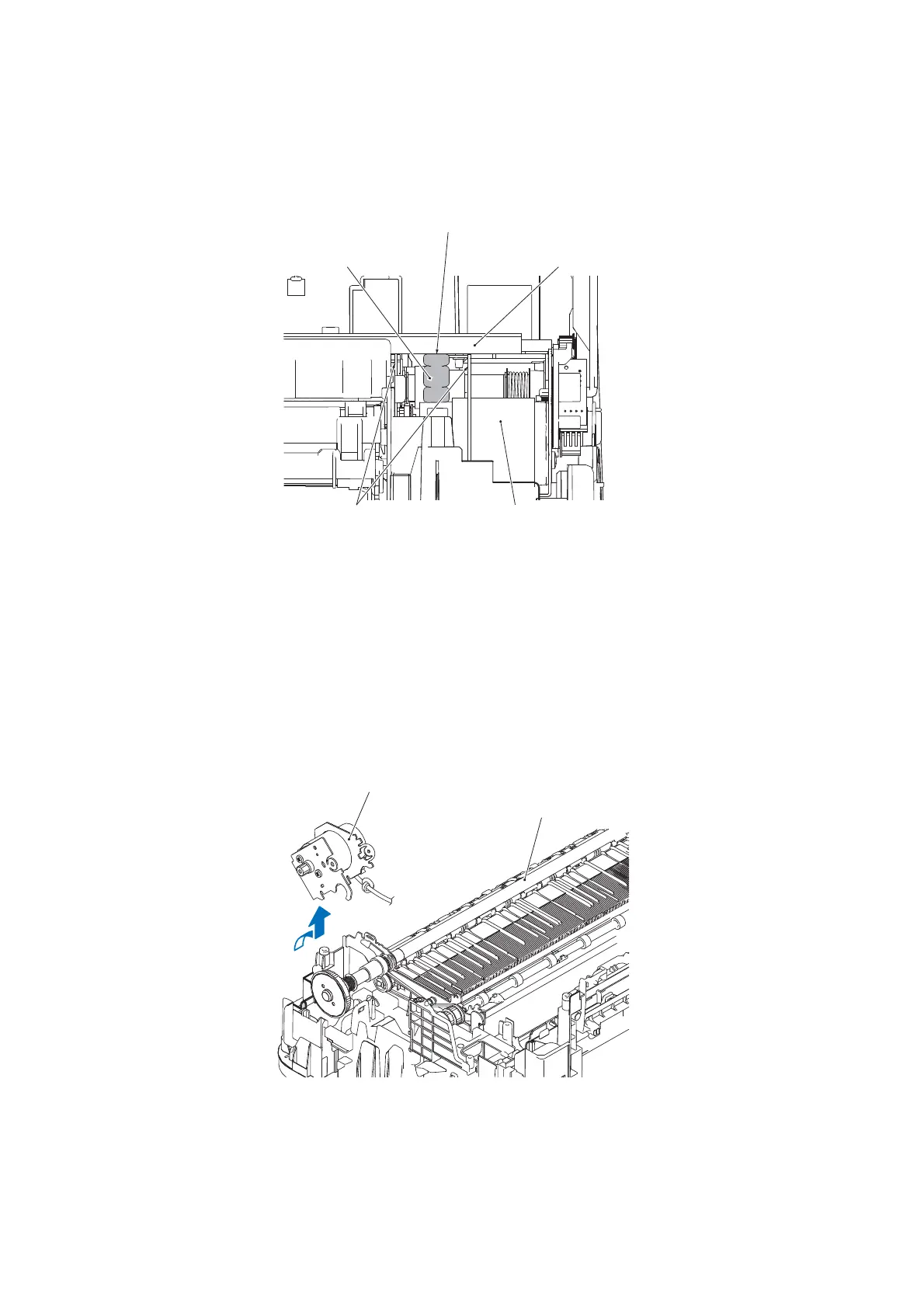

Assembling Note: When attaching the CR guide rail, set the Paper feed motor gasket
as shown below.
Fig. 3-109
(2) Release the wiring of the Paper feed motor harness.
(3) Turn the Paper feed motor frame ASSY 45 degrees in the direction of the arrow
and pull it straight up.
It may not be pulled straight up depending upon the position of the black bushing.
Rotate the bushing to the proper position and pull it out.
Fig. 3-110
Paper feed motor
Paper feed motor gasket
CR guide rail
Make sure that the upper surface of the Paper feed motor gasket
is in contact with the lower surface of the CR guide rail.
Make sure that the gasket does
not contact with the sheet-metals
in the both sides.
Paper feed roller
Paper feed motor frame ASSY

Brother MFC-J2320 Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi
Max Print Resolution	6000 x 1200 dpi
Max Print Size	A3
Scanner Type	Flatbed with ADF
Max Scan Resolution	1200 x 2400 dpi
Copy Speed (Black)	12 cpm
Copy Speed (Color)	9 cpm
Paper Tray Capacity	250 sheets
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Display	2.7" LCD touchscreen
Paper Handling	A3, A4
