Brother MFC-J2320 Service Manual

3-98
Confidential

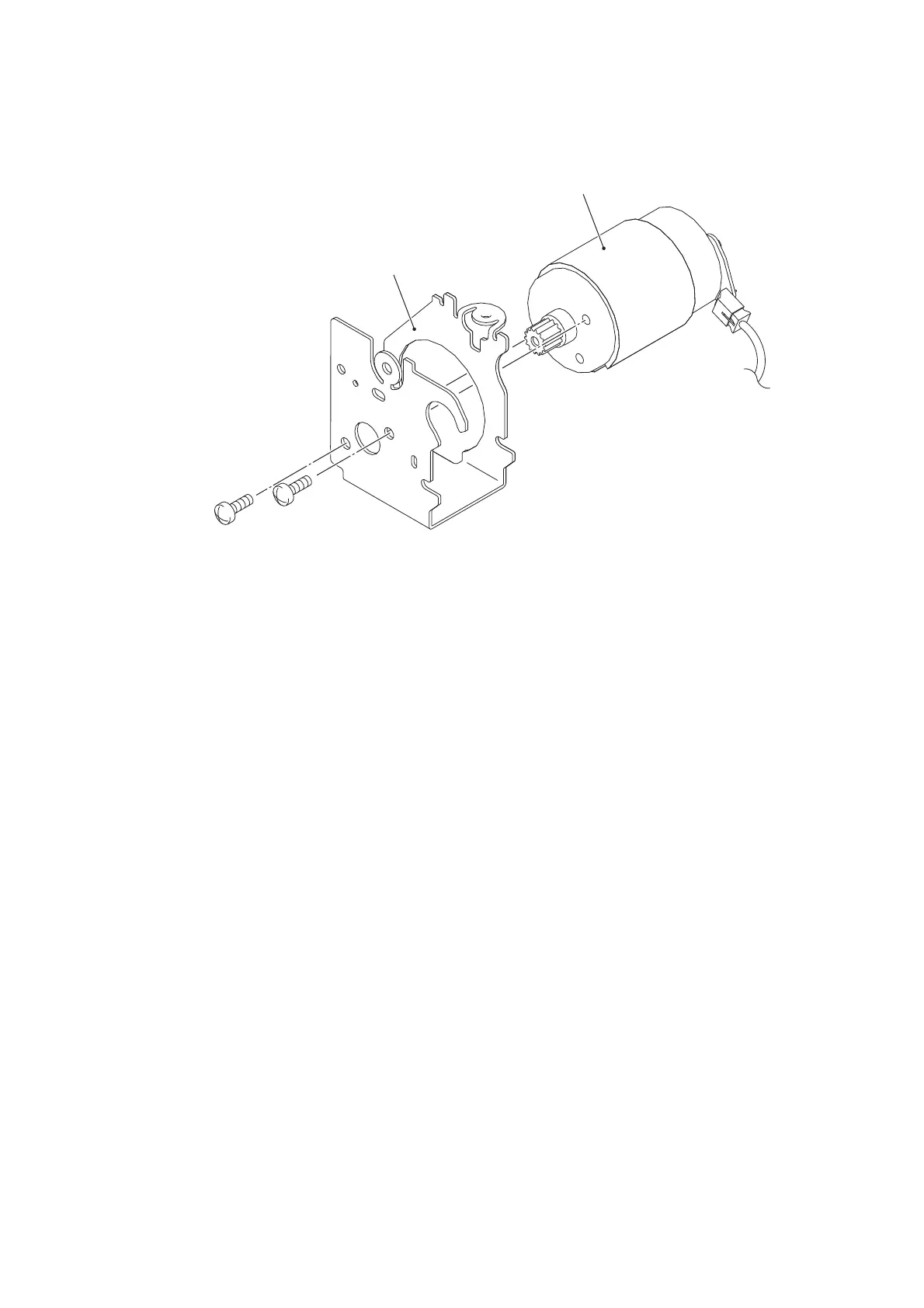

(4) Remove the two screws (SCREW BIND M3x6) and take the Paper feed motor off
the Paper feed motor frame.
Fig. 3-111
Assembling Note: When attaching the Paper feed motor to the Paper feed motor
frame, align it in the position indicated above.
<Except for US/CAN>
(5) Remove the Paper feed motor gasket from the Paper feed motor.
Note: If you replace the Paper feed motor, you also need to replace the Paper feed
motor gasket with a new one.
Paper feed motor frame
Paper feed motor
SCREW BIND M3x6
