3-38
Confidential

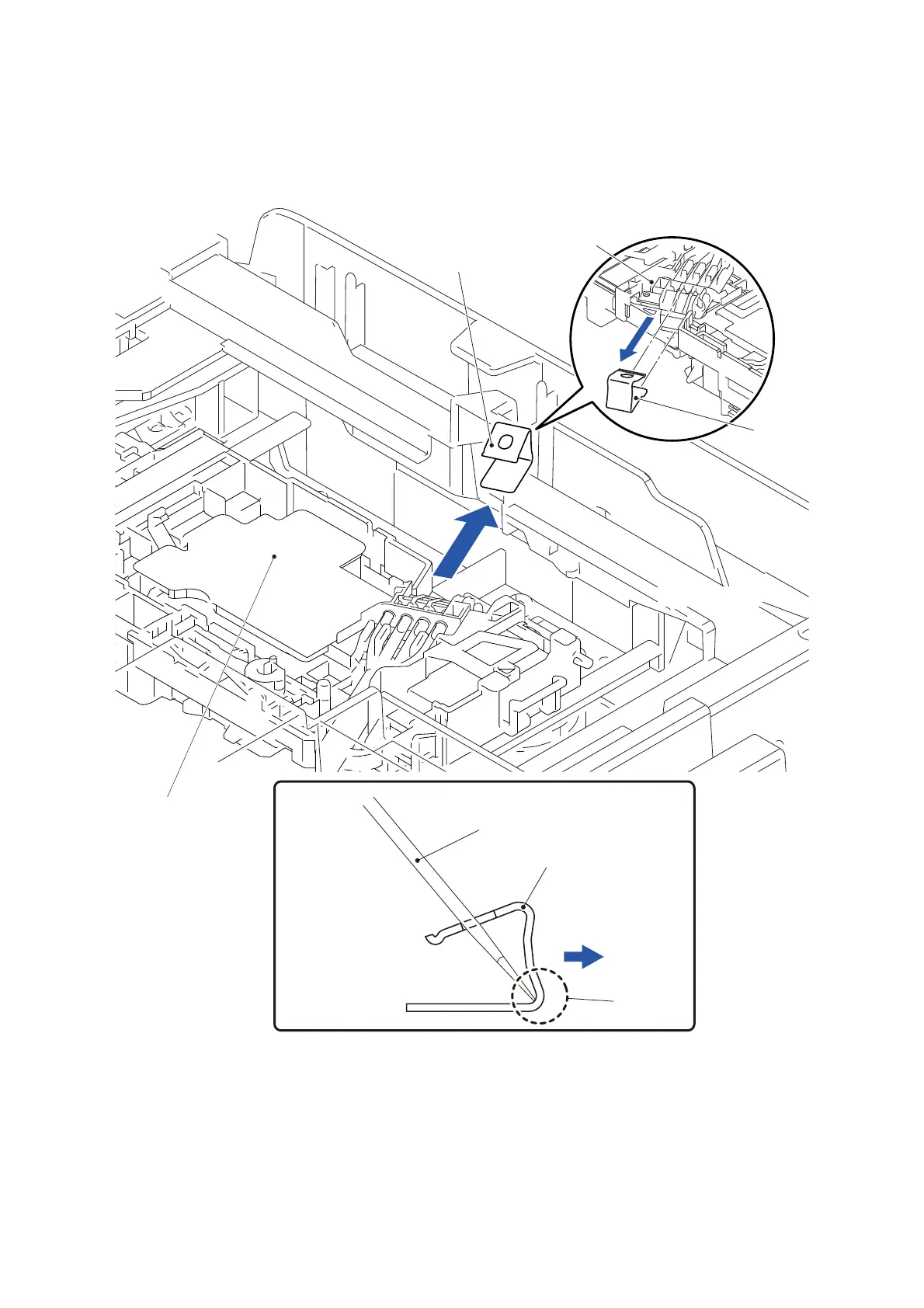

(13) Remove the Head joint spring from the Head/carriage unit.
Note: It can be easily removed if you press the section “A” by inserting a thin
screwdriver, etc. from the spring hole.
Fig. 3-9
Head/carriage unit
Head joint spring
Head/
carriage unit
Head joint spring
Head
joint
spring
Screwdriver
“A”
