Brother MFC-J6535DW Service Manual

3-48
Confidential
(4) < India model only >
Remove the two screws (TAPTITE CUP B M3 x 10), peel off the MP dust foam,
release the two Hooks, and remove the MP tray cover from the MP tray ASSY.

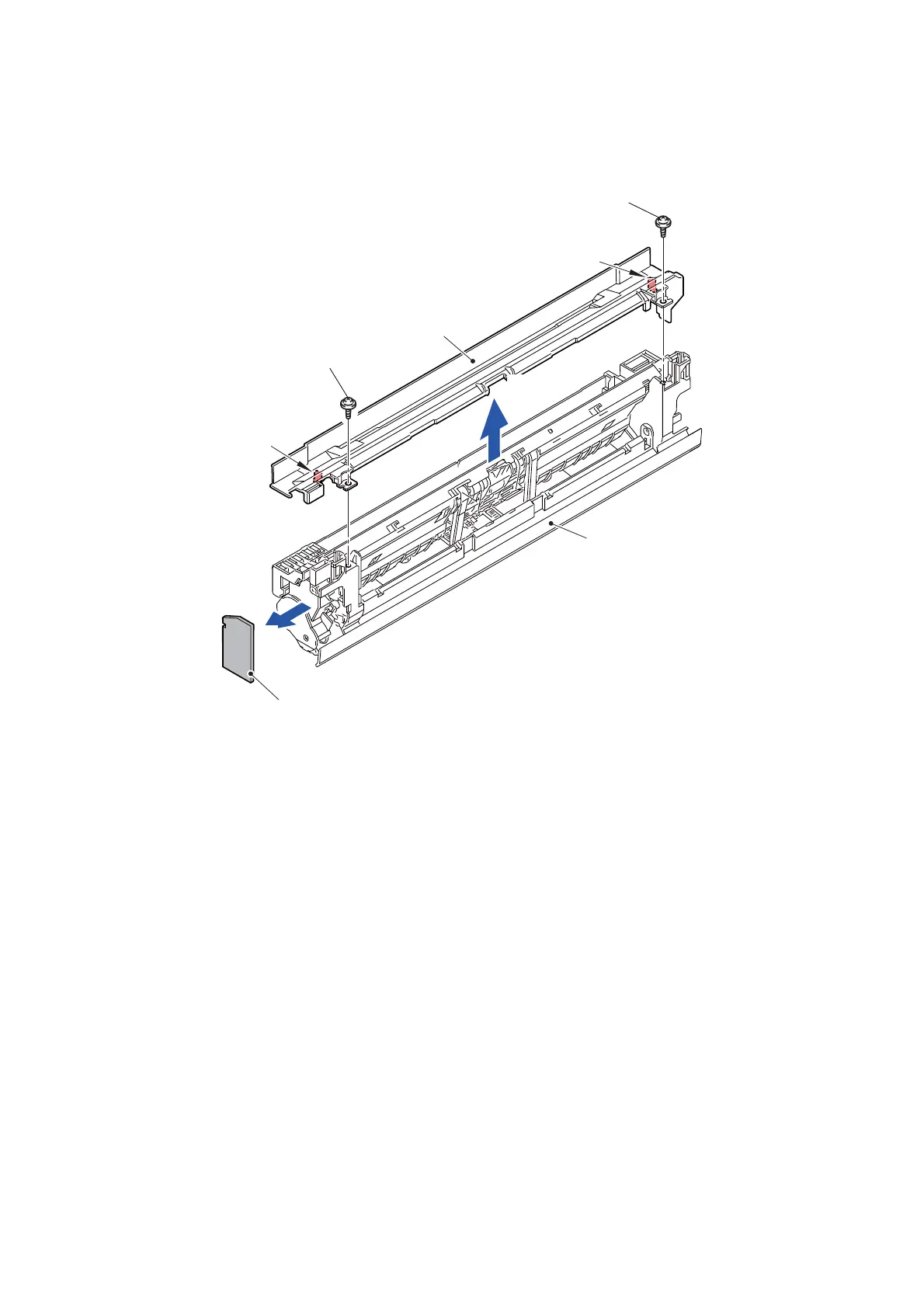

Fig. 3-27
Note: Once removed, the MP dust foam should be replaced with a new one.
TAPTITE CUP B M3x10
TAPTITE CUP B M3x10
MP tray cover
MP dust foam
MP tray ASSY
Hook
Hook
4b
4a
