Brother MFC-J6535DW Service Manual

3-49
Confidential

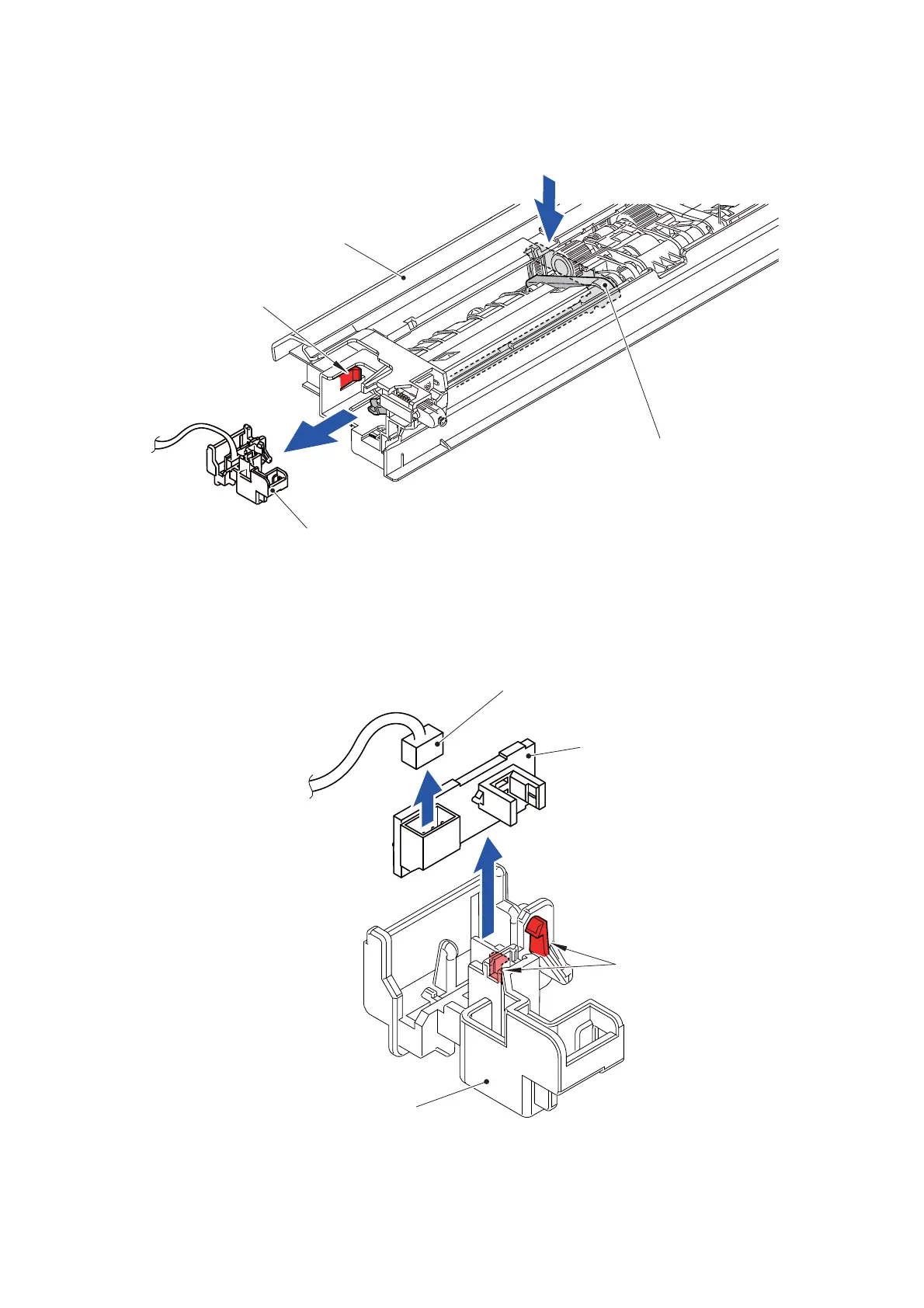

(5) While holding down the Paper actuator MP, release the one Hook and remove the
MP sensor holder.
Fig. 3-28
(6) Release the two Hooks and remove the MP paper detection sensor PCB from the
MP sensor holder.
(7) Disconnect the Connector from the MP paper detection sensor PCB.
Fig. 3-29
MP sensor holder
Paper actuator MP
MP tray ASSY
Hook
MP sensor holder
MP paper detection sensor PCB
Hooks
Connector
7
6
