374
TRIM AND TILT
REMOVAL AND INSTALLATION

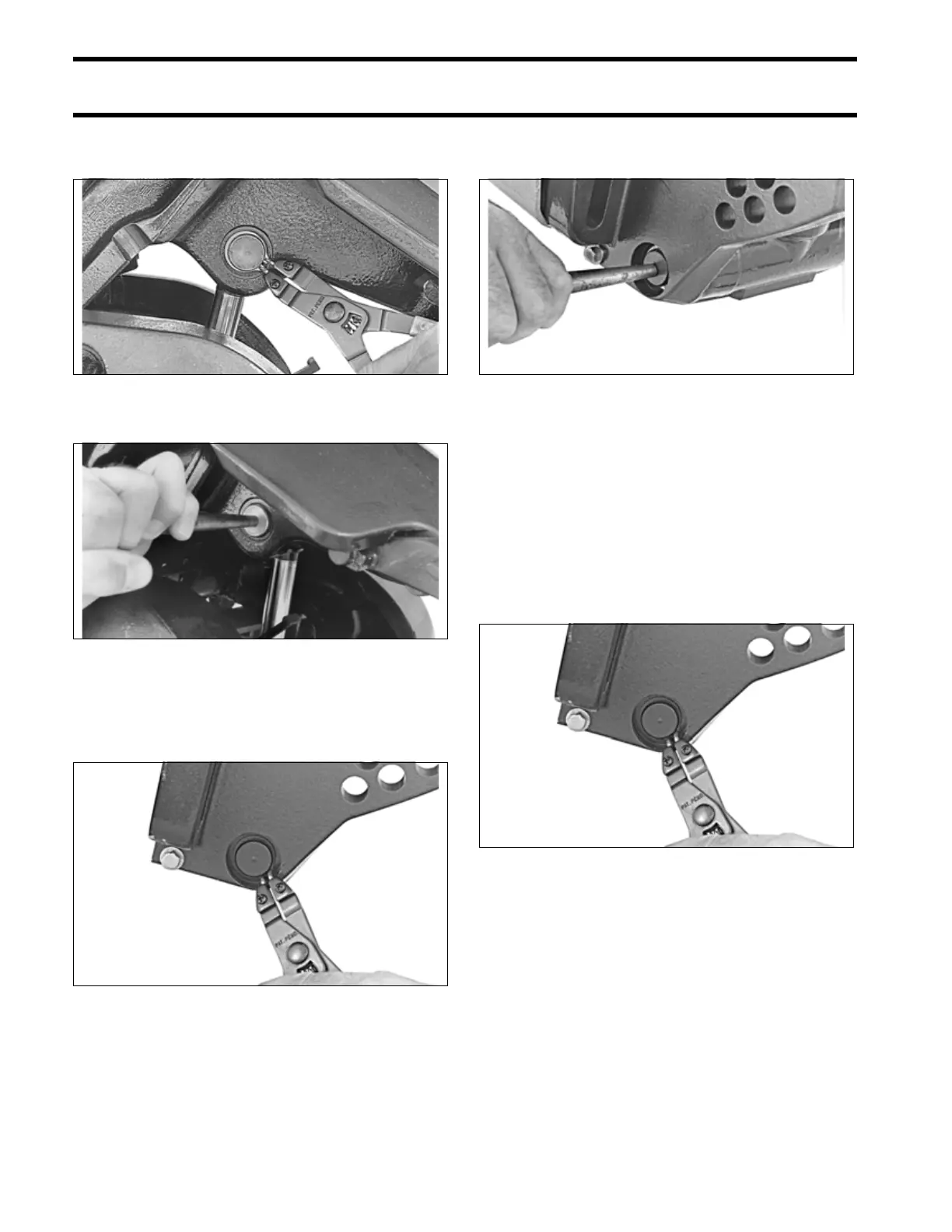

Remove the external snap rings from the upper
pin.
Use a punch to remove the upper pin.
Retract the tilt cylinder rod.
Remove the external snap rings from the lower
pin.
Use a punch to remove the lower pin and remove
the trim/tilt unit from the stern brackets.
Installation
Place trim/tilt unit into position. Apply Triple-Guard
grease to the lower pin and install the pin.
If loosened, torque the tilt tube nut to 50 to 54 ft.
lbs. (68 to 73 N·m), then loosen the nut by 1/8 to
1/4 turn.
Install external snap rings on lower pin with sharp
edge of ring facing out.
Extend tilt cylinder rod to match with holes in
swivel bracket.
Apply Triple-Guard grease to upper pin and install
the pin.
25064
25065
25077
25076
25077
To Next Page
