Bruker HPPR/2 User Manual

Cover2 Module
34 / 92 H172204_1_001

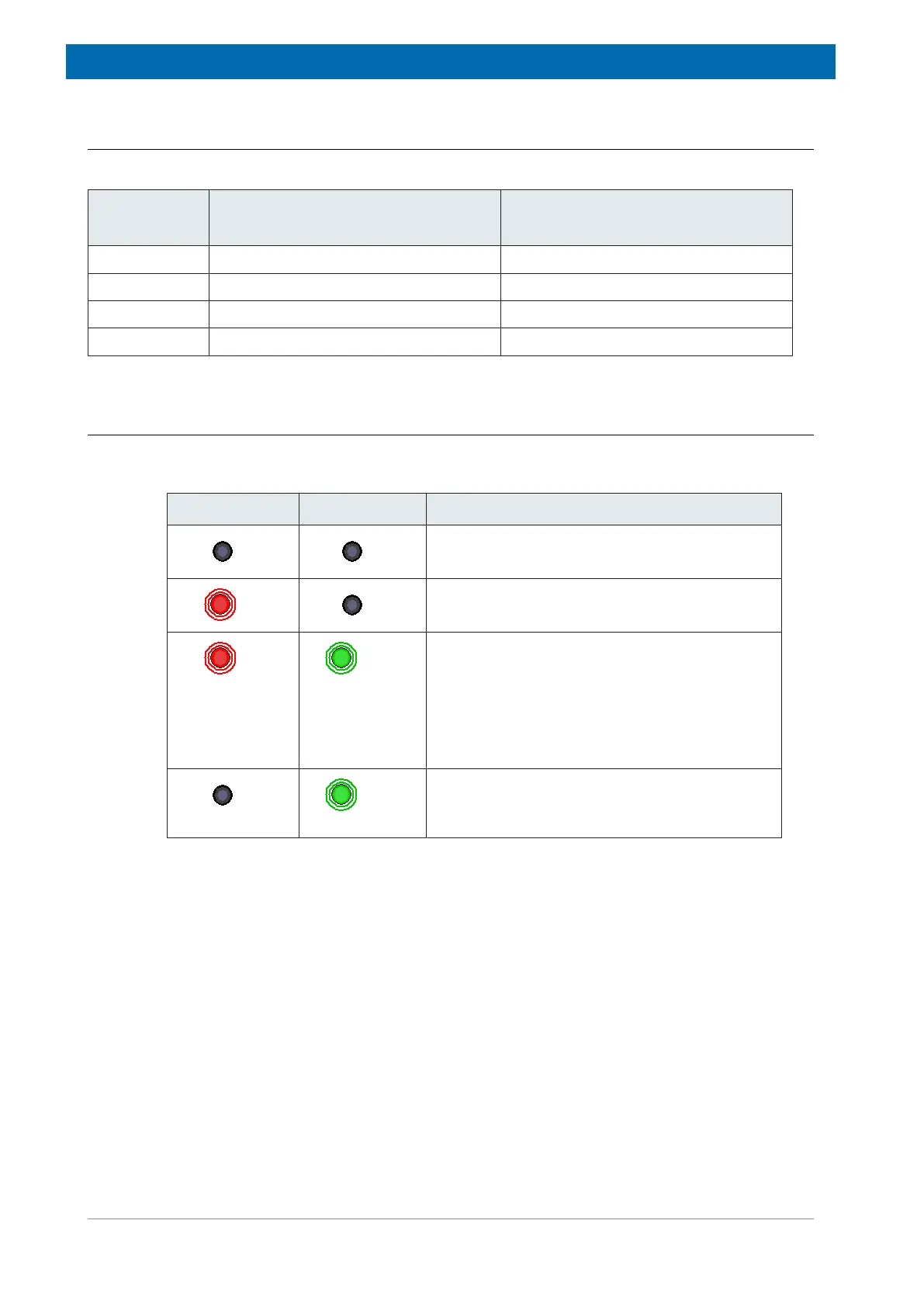

6.1.1 Cover2 and Display Versions
The HPPR/2 Cover2 module is available in several versions.
Bruker
Part No.
Name Description
Z124567 HPPR/2 COVER2 MODULE Standard, as shown above
Z144595 HPPR/2 MRI COVER2 MODULE Without display for MRI
Z144596 HPPR/2 MRI COVER2 LCD Separate display for MRI
Z162703 HPPR/2 MRI COVER2 LCD/2 Separate display for MRI, version 2
Table6.1: Part Numbers: HPPR/2 Cover2
6.1.2 LED Description
The LEDs indicate the current state of the HPPR/2 host. In AV NEO systems EPU is host.
The LEDs do not state anything about the MRI-HWIDS interface.
ERROR READY Description
off off
Power supply is off
red off
After power-on:
- Cover2 is waiting for a host.
red green
After power-on:
- Host is downloading Cover2 firmware.
- Host is initializing HPPR/2 modules and
connected devices.
After initialization:
- Host is in an error state.
off green
After initialization:
- Host is in normal operation, no error(s) from host
side.
Table6.2: LED States
