Cover2 Module
36 / 92 H172204_1_001
6.1.5 Modules Tab

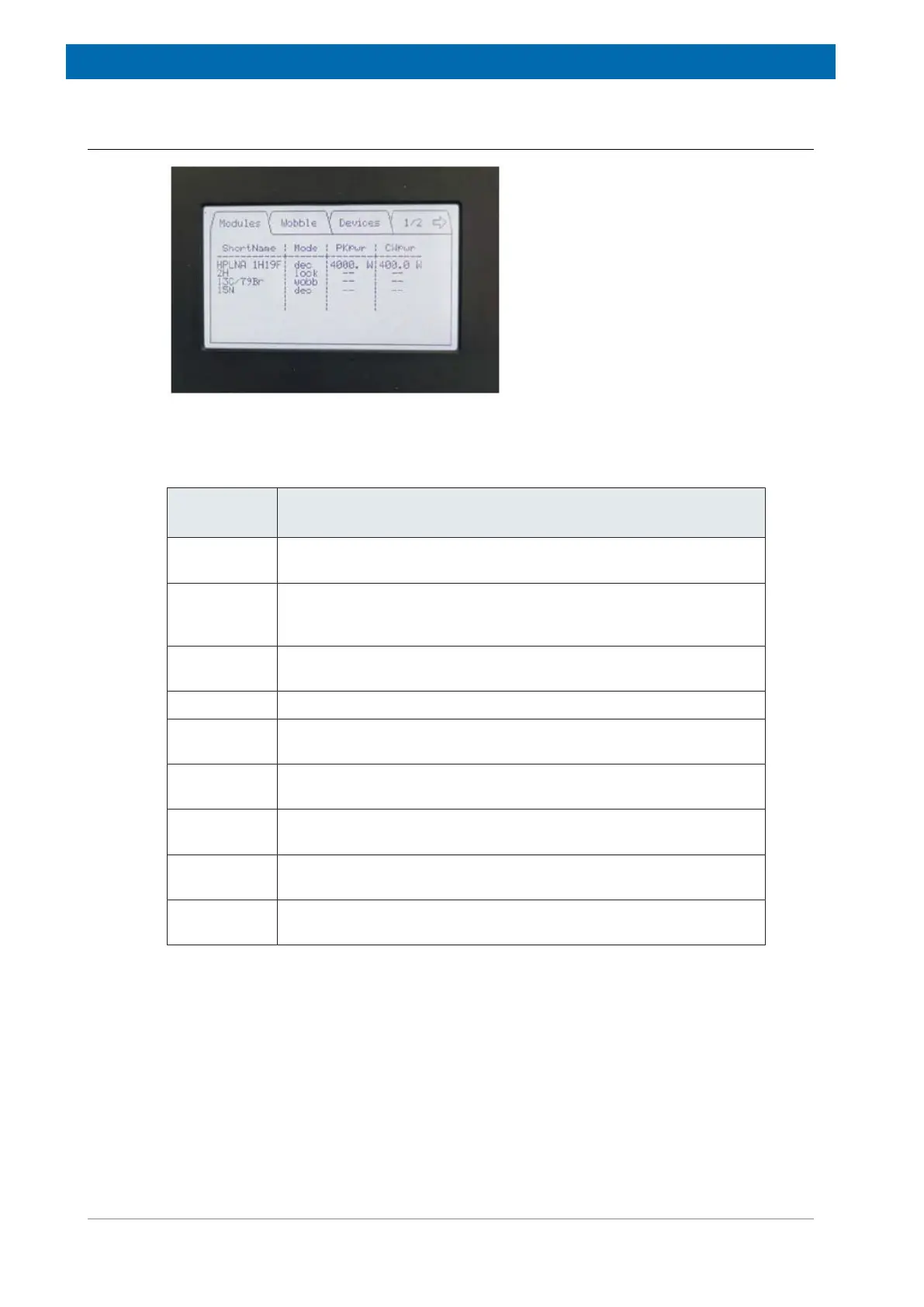

Figure6.3: Modules Tab
The following module modes are possible depending on the module type:
Module
Mode
Description
‘dec’ Decouple mode (default), module is not used for observe or lock and
is therefore always protected from transmit pulses.
‘obs’ Observe mode, this module is used as observe channel. The
protection of the module depends on the real time pulse
“RGP_HPPR”.
‘lock’ Lock mode, this module is used as lock channel. The protection of
the module depends on the real time pulse “LOCK_PP”.
‘wobb’ Tuning/Matching mode: This channel can be tuned and matched.
‘crp ...’ Cryo probe modes: Can be combined with all modes described
above (crp dec, crp obs, crp lock, crp wobb).
‘fwd pwr’ The forward power from the reflectometer is routed to the RF out of
the HPPR/2 (implemented in HPLNA modules only).
‘refl pwr’ The reflected power from the reflectometer is routed to the RF out of
the HPPR/2 (implemented in HPLNA modules only).
‘PwrErr’ Power error, a power error has occurred on this module. Check the
connection to the module and the preamplifier module itself.
‘EmStop’ Emergency stop, an emergency stop signal has occurred and is
queueing on this module.
Table6.4: Modules Modes
The red Error LED shows a possible error on the host.
