Bruker HPPR/2 User Manual

HPPR/2 MRI Baseplate AV4
H172204_1_001 71 / 92
12.2.1 Connectors
Pin Signal Pin Signal
1 RGP HPPR IN (5) 2 GND
3 RGP HPPR IN (6) 3 GND
5 RGP HPPR IN (7) 6 GND
7 RGP HPPR IN (8) 8 GND
9 RGP HPPR IN (1) 10 GND
11 RGP HPPR IN (2) 12 GND
13 RGP HPPR IN (3) 14 GND
15 RGP HPPR IN (4)
Table12.1: Pinout RGP HPPR IN Connector

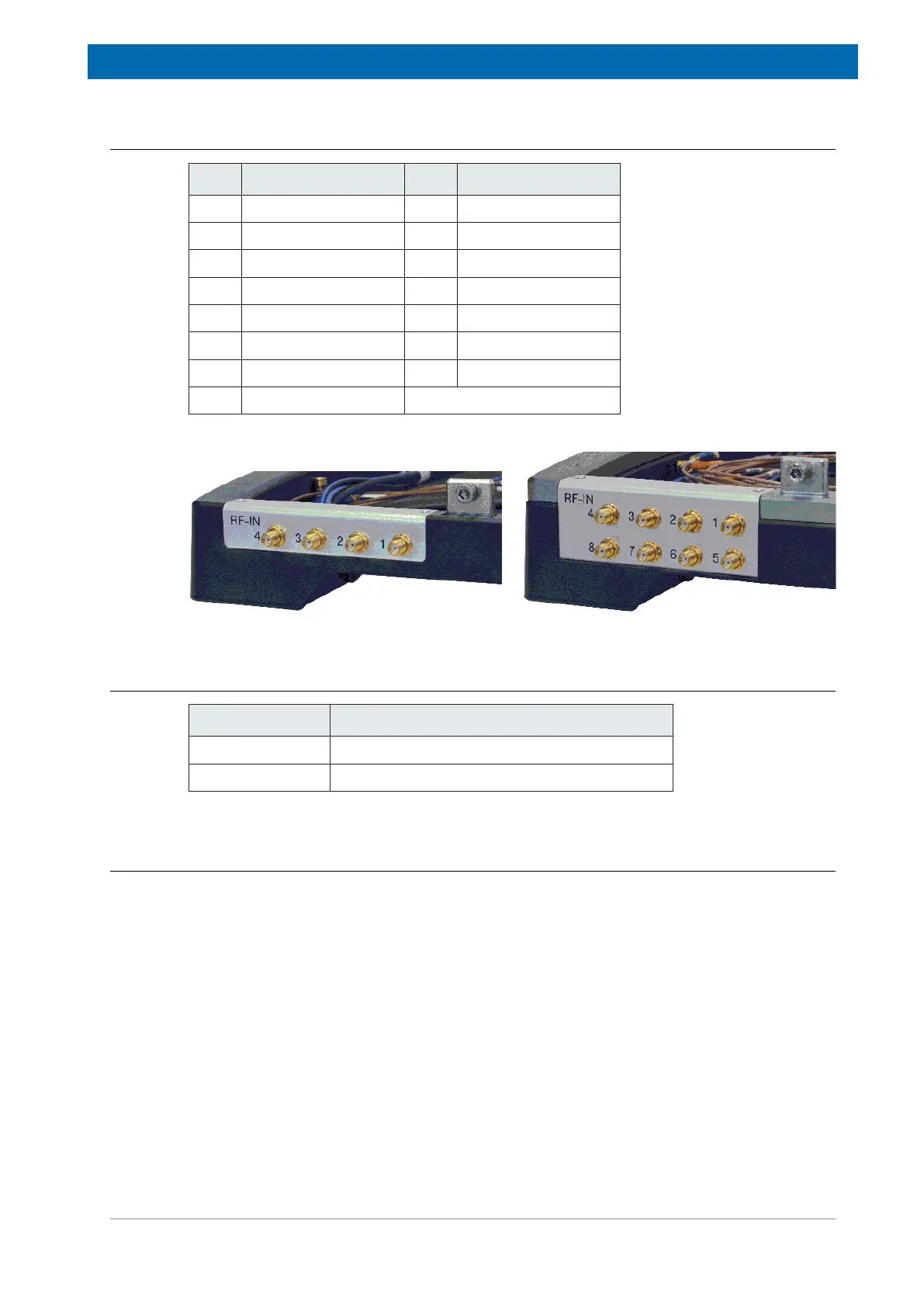

Figure12.4: Rear View MRI BASEPLATE AV4 4CH and 8CH
12.2.2 Part Numbers
Bruker Part No. Description
Z162168 HPPR/2 MRI BASEPLATE AV4 4CH
Z162169 HPPR/2 MRI BASEPLATE AV4 8CH
Table12.2: Part numbers: MRI BASEPLATE AV4
12.2.3 Technical Data
Frequency range
- all RF signals: 0.005 .. 1.5 GHz
Insertion loss @ 1 GHz
- RF-IN: (SMA > SMB) 0.3 dB (connector) + 1.0 dB/m
- RF-OUT: (N > SMB) 0.3 dB (connector) + 1.0 dB/m
- TUNE IN: (QLA Adapter only) 0.5 dB (connector) + 1.7 dB/m
RGP splitter
Resistive 2 or 3-way splitter, 1 resistor per
output:
330 Ohm
