Bruker HPPR/2 User Manual

HPPR/2 MRI Baseplate AV4
H172204_1_001 69 / 92
12 HPPR/2 MRI Baseplate AV4
12.1 Overview
The HPPR/2 MRI BASEPLATE AV4 serve as interconnects for the RF- and RGP wiring
between the electronics console, the HPPR/2 preamplifiers and the MRI probe (coils). It also
has the main protective earth connection for the HPPR/2 preamplifier stack.
There are two versions for MRI systems:
• Z162168 HPPR/2 MRI BASEPLATE AV4 4CH
• Z162169 HPPR/2 MRI BASEPLATE AV4 8CH

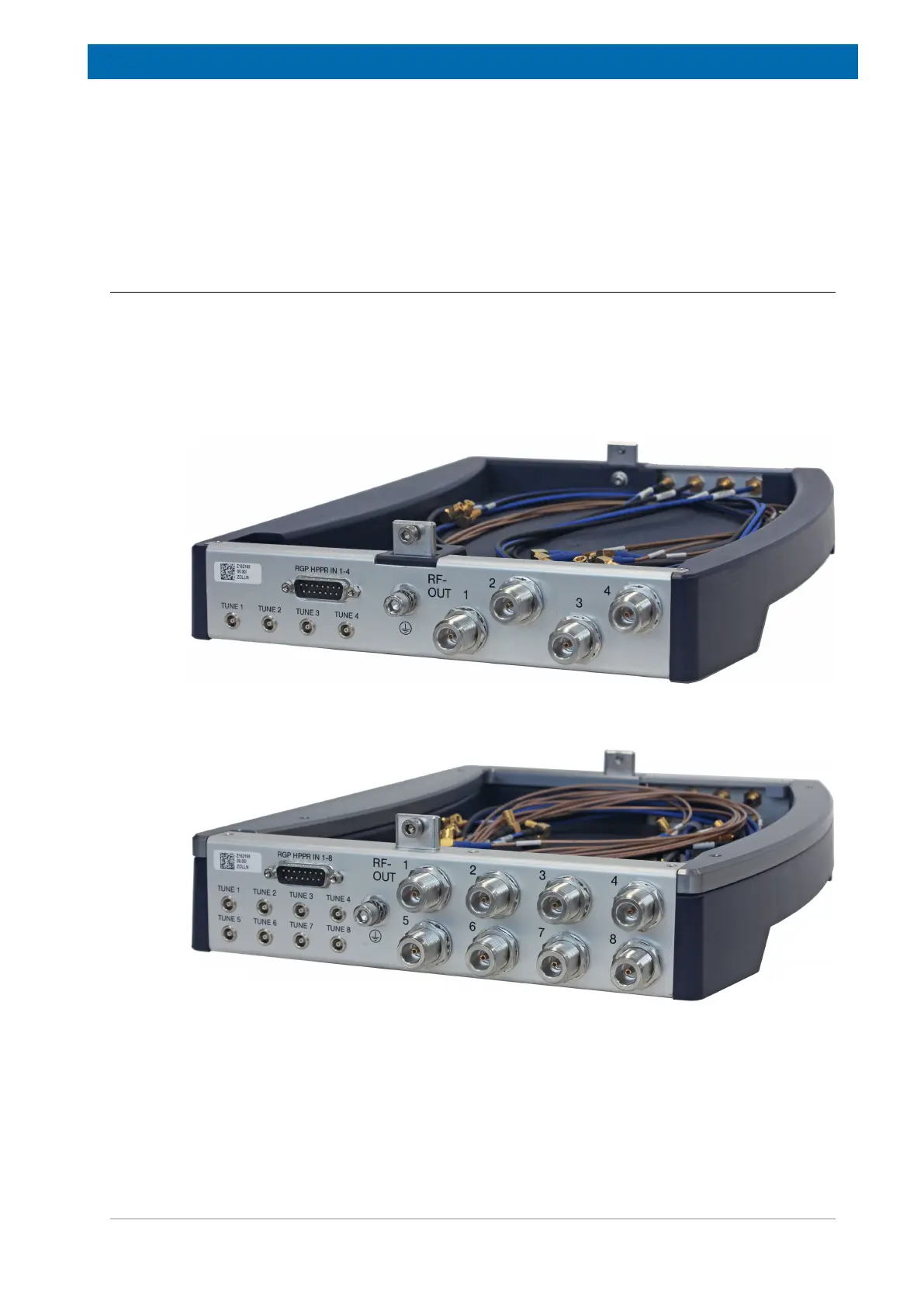

Figure12.1: View MRI BASEPLATE AV4 4CH
Figure12.2: View MRI BASEPLATE AV4 8CH
