8 HPPR/2 Baseplate AV4
8.1 Overview
The HPPR/2 BASEPLATE AV4 serves as an interconnect for the RF- and RGP wiring
between the electronics console and the HPPR/2 preamplifiers. It also has the main
protective earth connection for the HPPR/2 preamplifier stack.
There are several versions for NMR systems:
• Z155568 HPPR/2 BASEPLATE AV4 4CH
• Z155569 HPPR/2 BASEPLATE AV4 8CH
• Z165937 HPPR/2 MAS3 BASEPLATE AV4 8CH

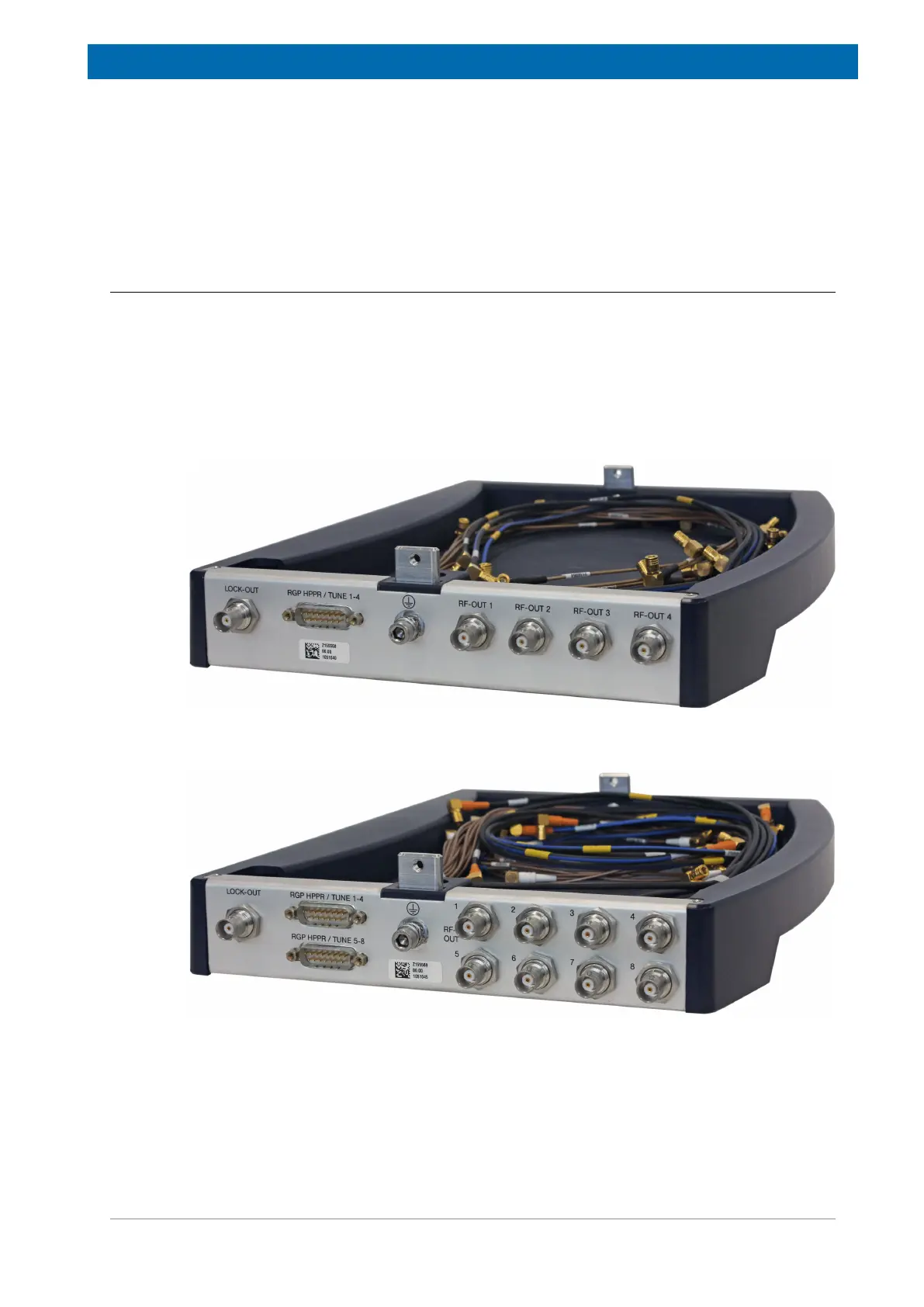

Figure8.1: View BASEPLATE AV4 4CH
Figure8.2: View BASEPLATE AV4 8CH
