HPPR/2 MRI Baseplate AV4
70 / 92 H172204_1_001
12.2 Description
The MRI baseplates have SMA connectors for RF-IN and N connectors for RF-OUT signals
to the TRANSCEIVER (TRX) in the AQS chassis of the console. The TUNE signals from the
TRX are connected via QLA Adapters. The RGP-HPPR signals from the PSM-A are bundled
in cables and linked via d-sub connectors to the baseplate. Inside the baseplate some RGPs
are split with resistive splitters. All cables to the preamplifiers have SMB connectors. TUNE
cables with QLA connectors are not included with the baseplate.

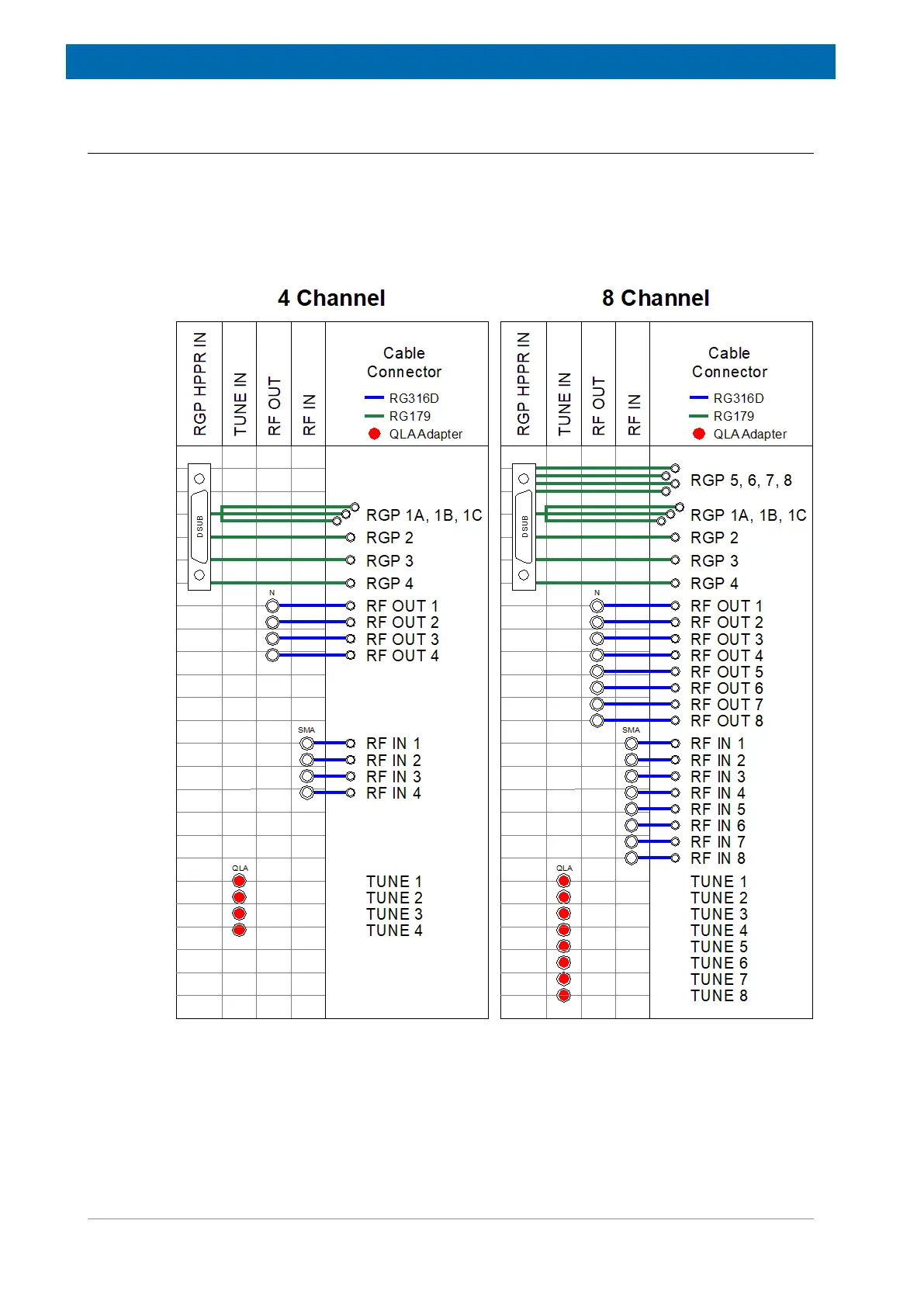

Figure12.3: Internal Wiring: MRI BASEPLATE AV4 4CH & 8CH
