HPPR/2 Preamplifier Modules for AVANCE NEO
H172204_1_001 53 / 92
7.6 RF Pulse Power Capability Overview

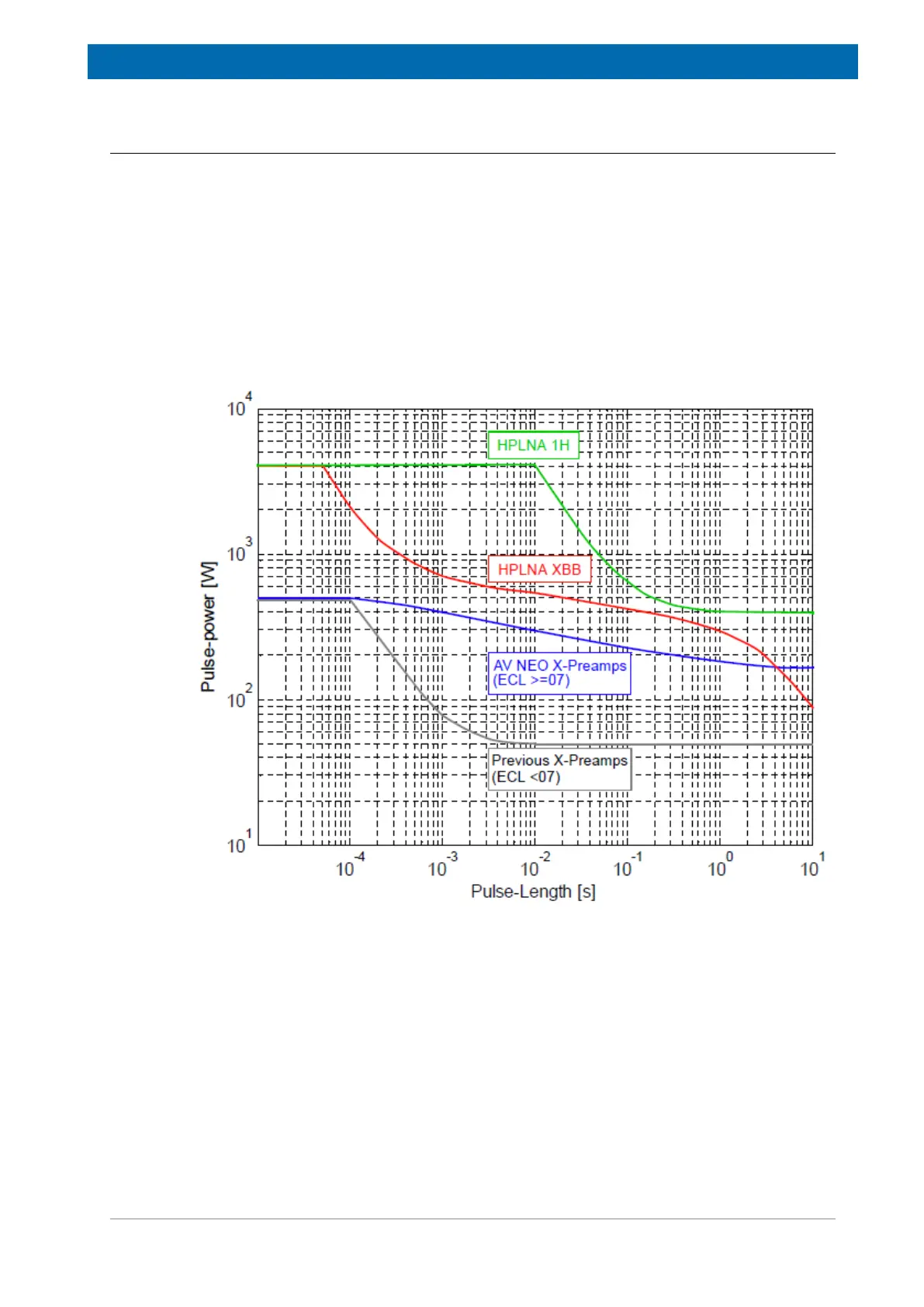

The following graph shows the maximum single RF pulse power capability for all AV NEO
compatible HPPR/2 preamplifier modules. The graph is also valid for repetitive RF-pulses
with a low duty cycle (≤ 2%).
All x-nuclei preamplifier (e.g. selective preamps as 15N, 13C, 31P, 2H and also broadband
preamps as XBB19F 2HP) are summarized and labeled as X-Preamps.
Previous preamplifiers are also shown (gray line).
The RF pulse power capability is limited by maximal dielectric strength or thermal hotspots in
certain electronic components (whichever is earlier).
The graph is only valid for matched conditions. In an unmatched environment, the power
capability will be lowered.
