Bruker HPPR/2 User Manual

HPPR/2 Preamplifier Modules for AVANCE NEO
48 / 92 H172204_1_001

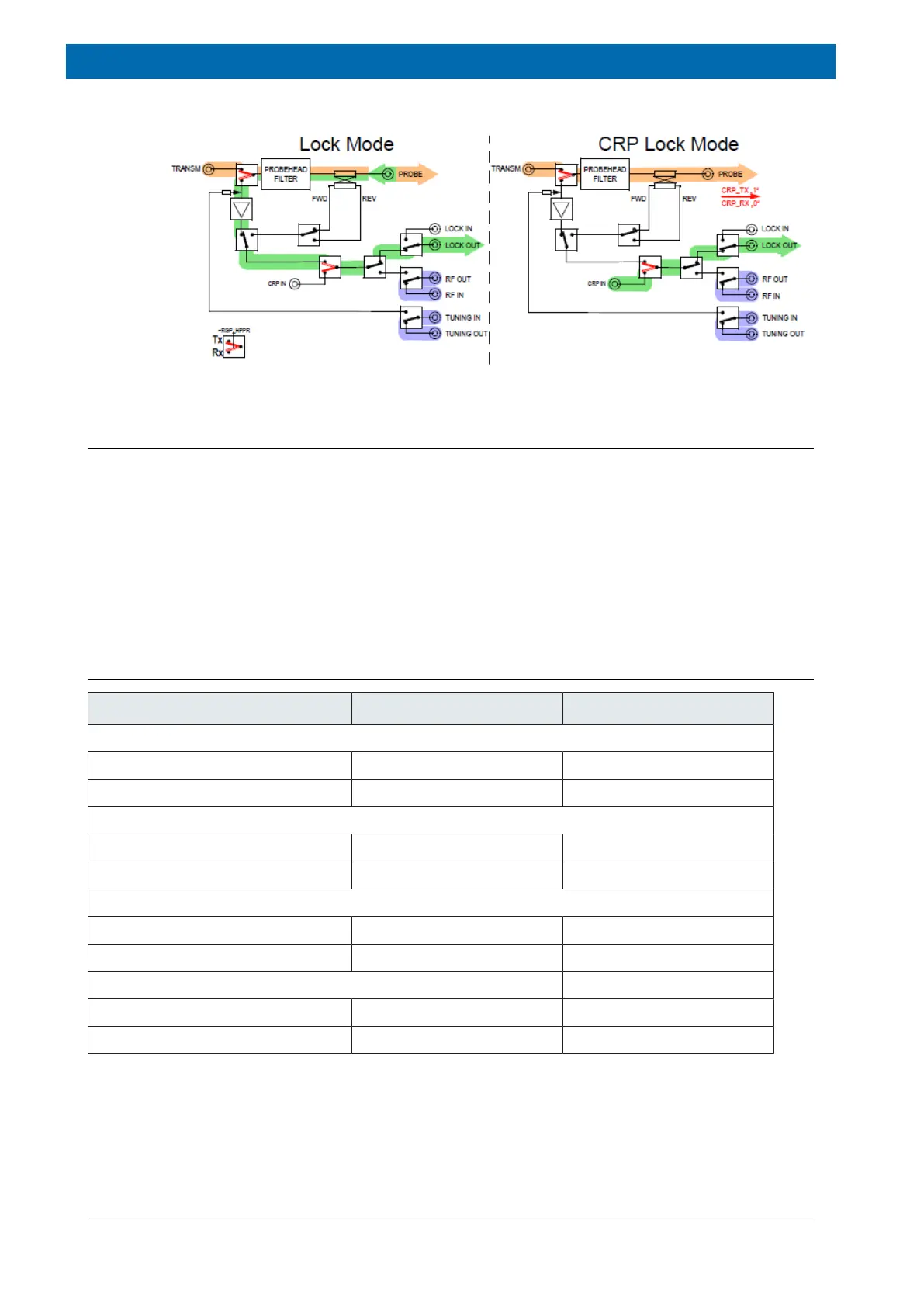

Figure7.7: Operating Modes 1H HPLNA Module
7.5 Technical Specifications
Important technical specifications of AV NEO HPPR/2 modules will be given in the following
section.
All given parameters are valid for the entire module. Specially the noise figure specification is
valid for the entire HPPR/2 module including all implemented filters.
Only the typical values are given for the noise figures. The unit to unit variation is less then
+-0.2dB.
For technical specifications of previous or other module types, please check the previous
HPPR/2 manual version: Z31559 Version 007.
7.5.1 Technical Data AQS 1H2H Preamp (ECL>=03)
300 400
1H Receive Path Performance
Gain (typ) 30 dB 30 dB
Noise Figure (typ) 1.8 dB 1.6 dB
1H Transmit Path Performance
Max. Power Rating, 2% Duty Cycle 150 W / 20 µs, 150 W / 20 µs,
Insertion Loss ≤ 2.8 dB ≤ 2.8 dB
2H Receive Path Performance
Gain (typ) 48 dB 48 dB
Noise Figure (typ) 1.5 dB 1.5 dB
2H Transmit Path Performance
Max. Power Rating, 2% Duty Cycle 300 W (20 µs) 300 W (20 µs)
Insertion Loss ≤ 2.0 dB ≤ 2.0 dB
Table7.4: Technical Data AQS 1H2H Preamp
