VLAN ID Specify the VLAN ID from 2-4094.
VLAN Name
Enter the VLAN name. You may enter up to 17 alphanumeric characters, hyphens,
and underscores.
Management VLAN
If an IP address is assigned to the VLAN, that VLAN will become a management
VLAN in L3 mode.
IPv4 Address
Enter an IPv4 address and a subnet mask to assign them to the VLAN. Up to 32
VLANs that a unique IPv4 addresses is assigned can be created.
Tagged Select when you assign the port to tag member.
Untagged Select when you assign the port to untag member.
Not Member Select when you do not assign the port to any member.
Reset Click to reset the changes to the previous settings.
Uplink
Appears when “Privacy Separator” is selected.
A router should be connected to the uplink port to connect to the Internet.
Uplink ports can communicate with all downlink ports. Specify at least 1 port to
an uplink port.
Downlink
Appears when “Privacy Separator” is selected.
Downlink ports are the ones which each device connected to. Downlink ports can
communicate with uplink ports, but cannot communicate with each downlink
port.
Note: In privacy separator mode, only the device connected to an uplink port can open Settings. If you configure
the port that your PC is connected as a downlink port, you cannot open Settings anymore.

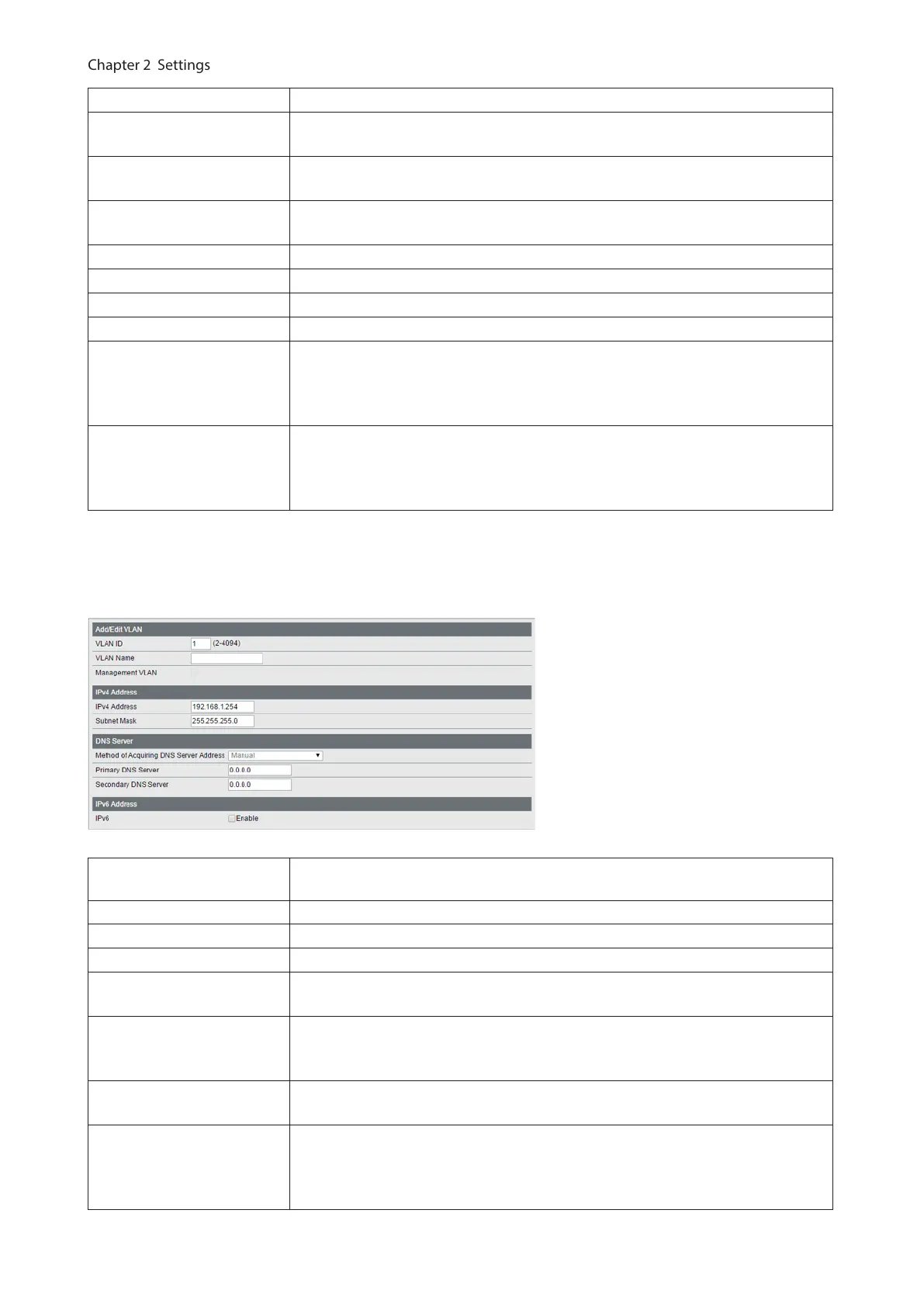

The following screen is displayed when you select VLAN 1 and click [Edit].
Method of Acquiring DNS
Server Address
Select a method of obtaining the DNS server’s IP address.
Primary DNS Server Enter the primary DNS server’s IP address.
Secondary DNS Server Enter the secondary DNS server’s IP address.
IPv6 Check “Enable” to enable IPv6.
Obtain IPv6 address
automatically
Check “Enable” if the switch need to obtain router advertisement from IPv6-
compatible router.
DHCPv6 Client
Check “Enable” if using DHCPv6 client. When “Rapid Commit” is checked, the
communication speed with the DHCPv6 server will be increased if the DHCPv6
server is also compatible with rapid commit.
Link Local Address
Displays the switch’s link local address. This is generated automatically when IPv6
is enabled.
Static Global Address
Enter the global address and prefix length to configure an IPv6 address manually.
The prefix length may contain 1-128. When “EUI-64” is checked, the bottom 64-bit
of the IPv6 address will be generated automatically based on the switch’s MAC
address, in accordance with Modified EUI-64 (RFC4291).
