Figure may differ.

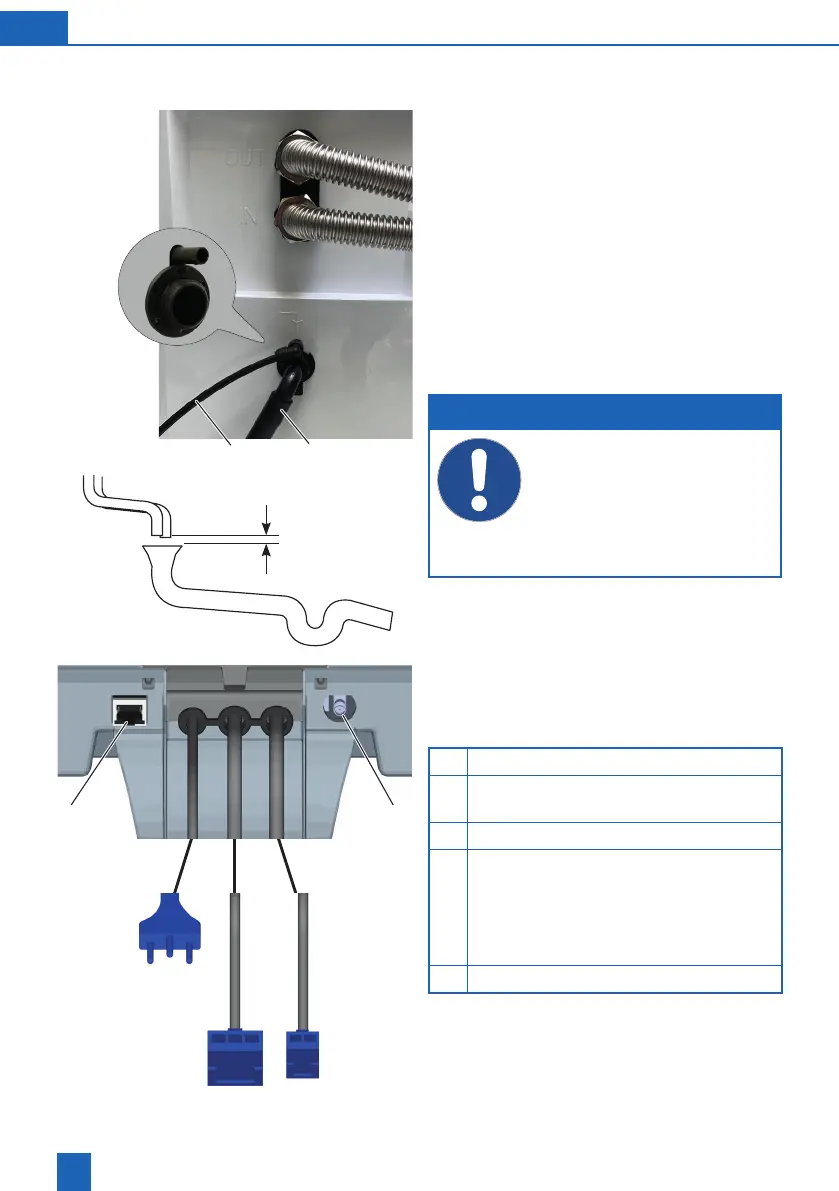

6.2.1 Establishing a sewage system
connection
13
14
OUT
IN
13) to the
product.
least 10 cm to the sewage system connection
(drain), or connect it to the included siphon in
accordance with the installation instructions and
14) to
the product.
Route the rinsing water hose to the sewage
system connection (drain) or connect it to the
included siphon.
Check the plug connection by pulling the connec-
tor back slightly.
NOTE
In accordance with EN 1717, the rinsing
water and overow hoses must be connect-
ed to the sewage system at least 20 mm
above the highest possible waste water level
(unimpeded drainage).
The ushing water and overow hoses
must not be connected or constricted at
any point.
> 20 mm
1615
19
18 17
1 2 3
6.3 Electrical connections
The following connections are available at the rear
of the Easy Fill technology cover:
15 LAN (RJ45) connection
16 GSM antenna connection (optional, at low
signal strength)
17 Dosing pump connection (2-wire)
18 Fault signal contact connection (3 wire),
potential-free changeover contact (max.
24 V / 0.5 A) Terminal assignment:
Terminal 1-2 closed during operation
Terminal 3-2 closed during fault
19
Connect the product to the power supply only
during start-up.
