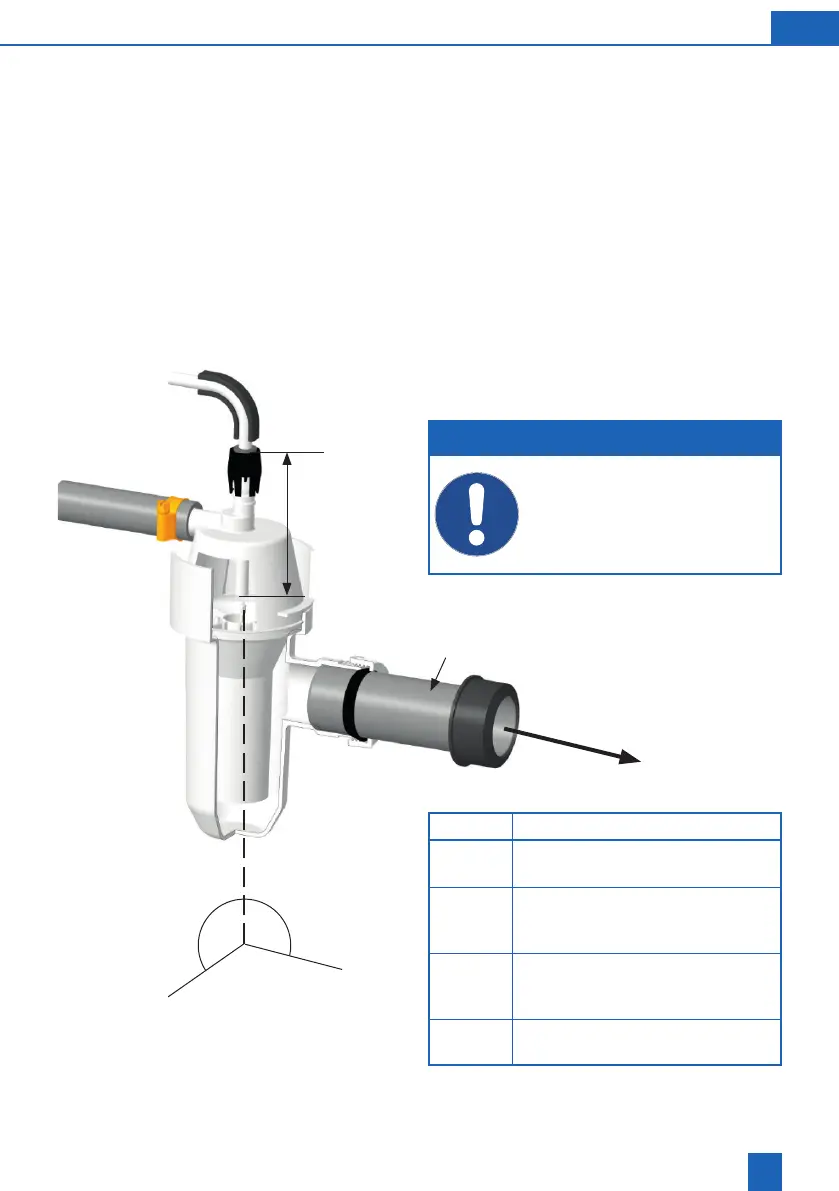

A.2 Installation set for water softeners
The installation set complies with the requirements
of standard EN 1717.
If necessary, put the rubber sleeve (1) on the
DN40 pipe as shown.
Place the coupling nut with the sealing ring (2)
on the pipe and screw it to the siphon.
3) at least
the water softener.
Route the rinsing water hose with an incline to the
connection (4) and push it in by 90 mm.
container to the connection (1), attach it and
secure it with a hose clamp.
NOTE
The ushing water and overow hoses
must not be connected or constricted at
any point.
4
3
Rinsing water hose
90 mm
90°90°
2
1
Quantity Designation
1 Angle terminal strip for the rinsing
water hose
1 Snap-on hose clamp for attaching
with cylindrical nozzle
1 Wire tensioning clamp for attaching
with conical nozzle
4 Flat gaskets for corrugated hoses
DN 40
Building drainage
