A.1.3 Installation
Failure to follow the installation instructions will
void the warranty in the event of damage.
A
R
correct
correct
correct
correct
wrong
correct

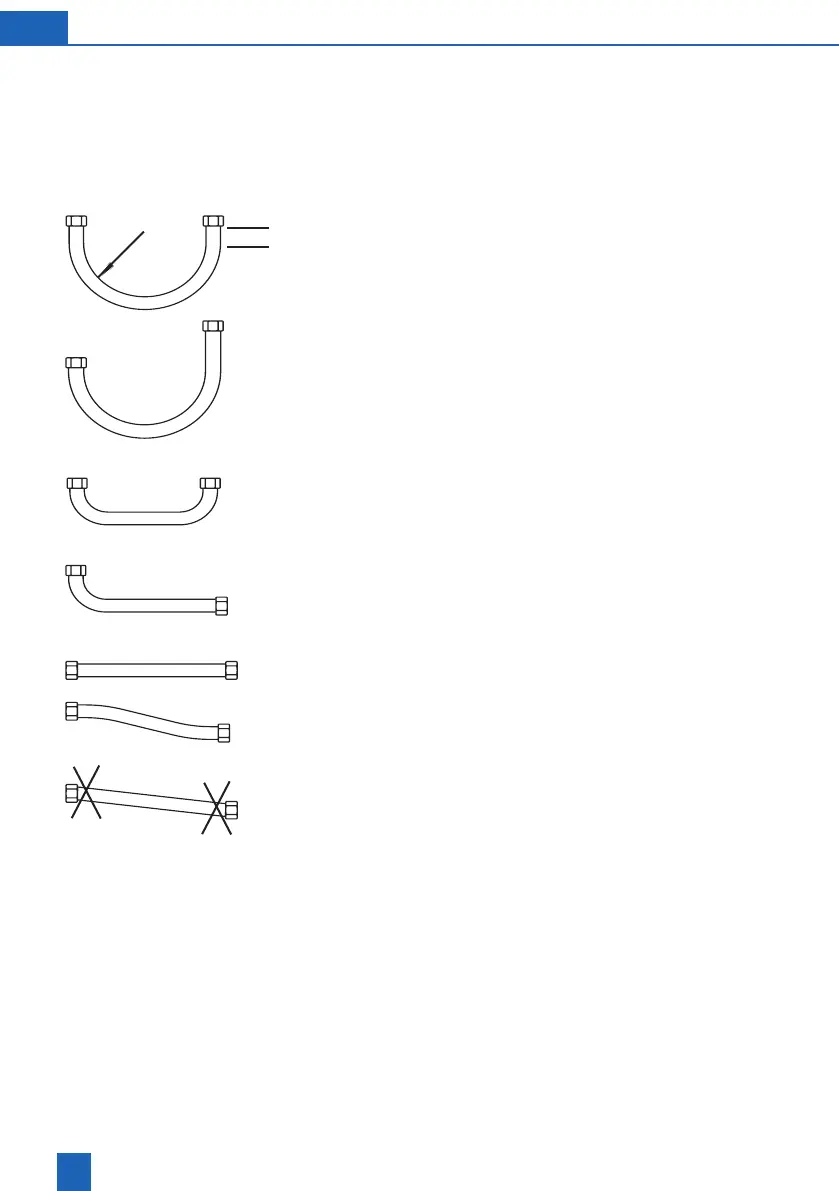

A.1.3.1 Installation instructions
The straight path A must measure at least 30 mm.
The bending radius R must be at least 50 mm.
Never twist or pull the corrugated hoses.
During installation and the period thereafter, the
hoses must not be subject to any external pressure
or elongation.
Only use matching spanners for the hexagon
nuts. Do not use a pipe wrench!
with both corrugated hoses and seal the con-
nections.
Hose for hard water (outgoing arrow on connection
Hose for soft water (outgoing arrow on softener,
Note:
water system at least 20 mm above the highest
waste water level (unimpeded drainage).
