CHAPTER 3 EXPOSURE SYSTEM
3-16
COPYRIGHT © 1999 CANON INC. CANON 405/335 REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)

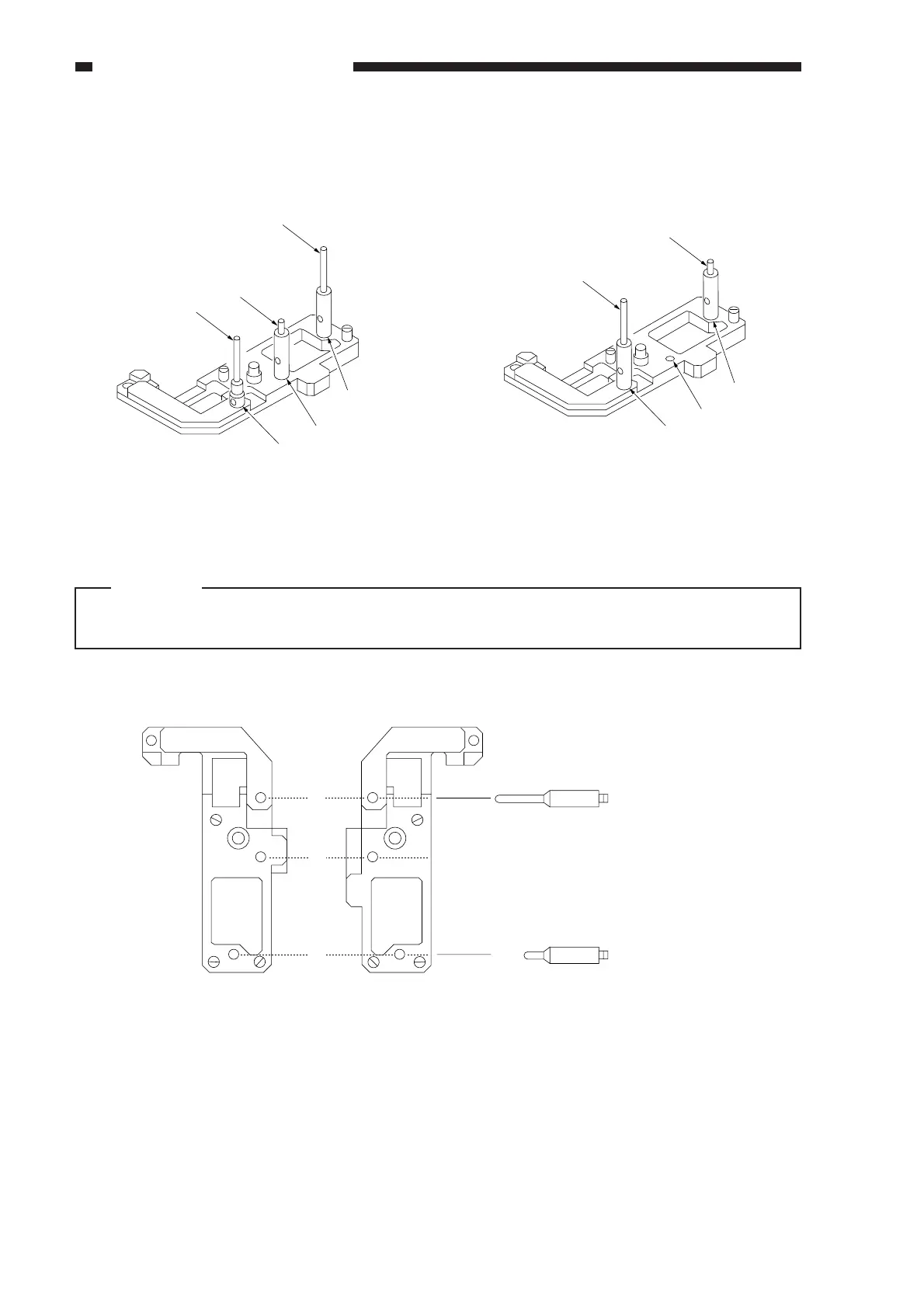

4. Fitting the Mirror Positioning Tool
Use the mirror positioning tool FY9-3009-040 by changing its pin arrangement as shown
below. Note that [1] [2] [3] in the figures indicate the locations of the pins, while [A] [B] [C]
indicate the pins.
Figure 3-513 FY9-3009-040 Initially Figure 3-514 FY9-3009-040 Adapted
for Use
Caution:
Note that pin [A] of the mirror positioning tool (FY9-3009-040) will not be used for the
machine.
Figure 3-515
[1]
[2]
[3]
[A]
[B]
[C]
[C]
[1]
[2]
[3]
[B]
[1]
[2]
[3]
Longest pin;
fit into 1.
Shortest pin;
fit into 3.
<Front>
<Rear>
