Canon imagePROGRAF iPF750 User Manual

Printing CAD Drawings
Printing Line Drawings and T ext (W indows)
This topic describes how to print line drawings based on the following example.
• Document: CAD drawing
• Page size: A3 (297.0 × 420.0 mm [1 1.7 × 16.5 in])
• Paper: Roll paper
• Paper type: Plain Paper
• Roll paper width: A2/A3 roll (420.0 mm [16.5 in])

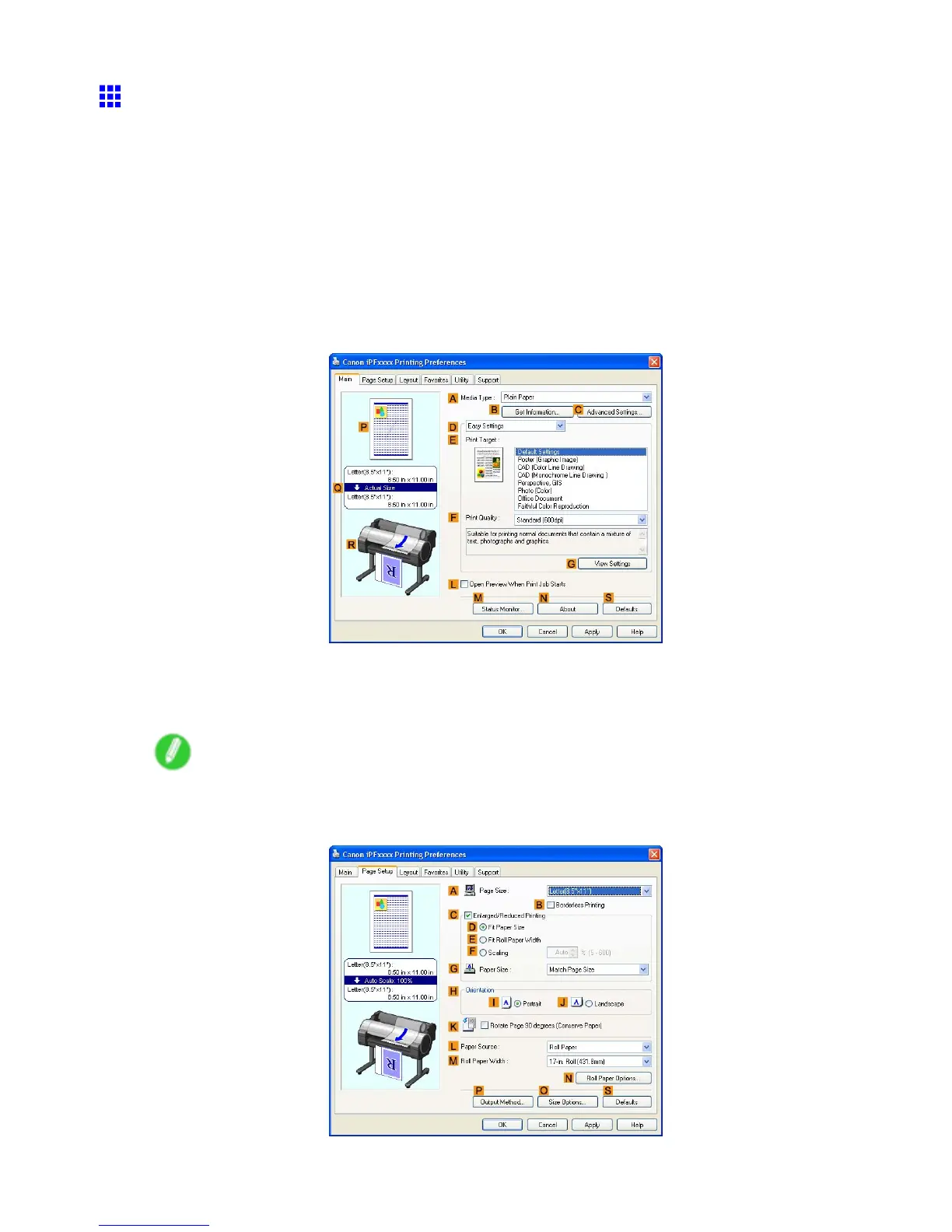

1. Choose Print in the application menu.
2. Select the printer in the dialog box, and then display the printer driver dialog box. ( → P .346)
3. Make sure the Main sheet is displayed.
4. In the A Media T ype list, select the type of paper that is loaded. In this case, click Plain Paper .
5. After conrming that D Easy Settings is selected, click CAD (Color Line Drawing) or CAD
(Monochrome Line Drawing) in the E Print T arget list.
Note
• Y ou can check the settings values selected in the E Print T arget list by clicking G V iew Settings .
6. Click the Page Setup tab to display the Page Setup sheet.
162 W orking With V arious Print Jobs
