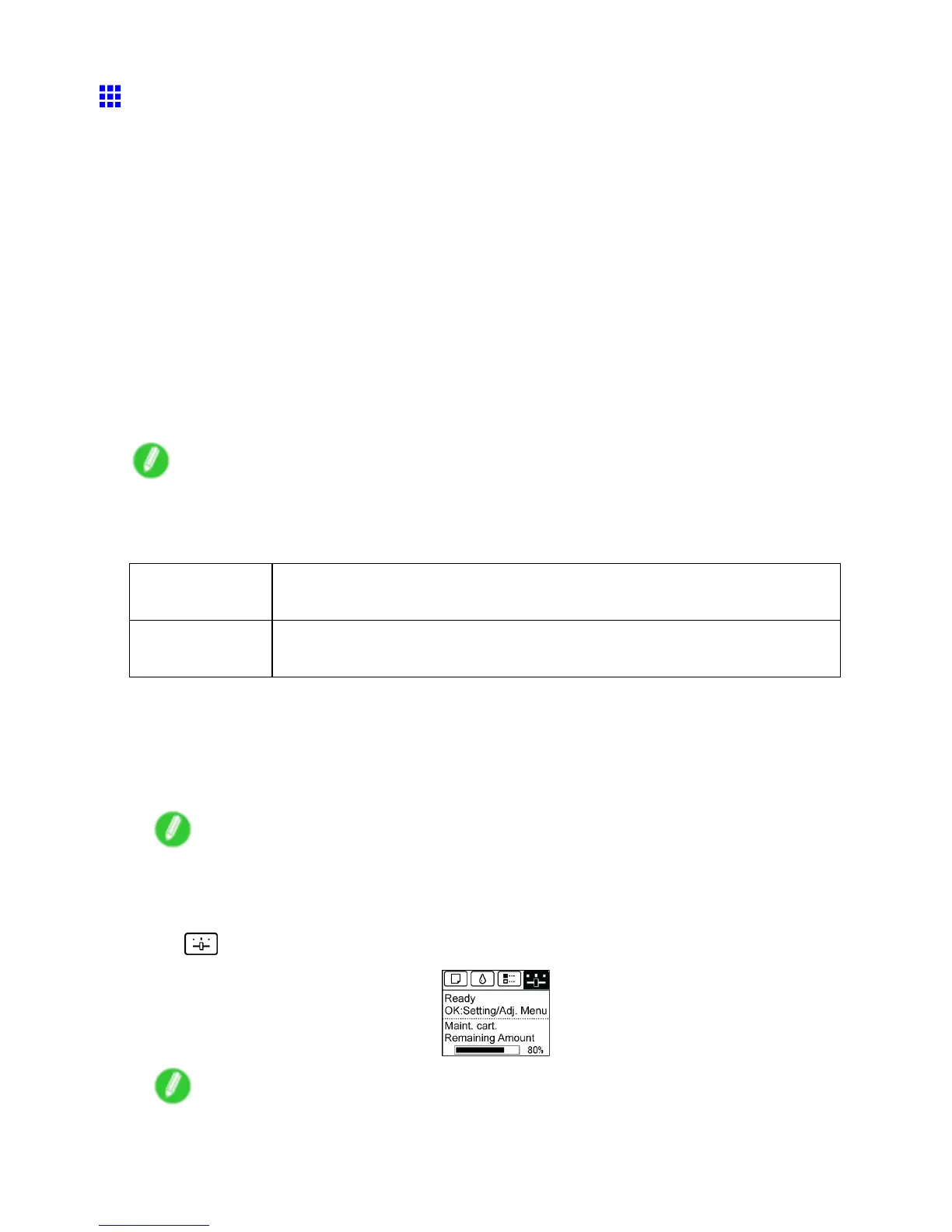

Adjusting the feed amount
Adjusting Line Length (Adjust Length)
T o ensure that lines in CAD drawings are printed at exactly the right length, use Adjust Length to adjust the
amount that paper is advanced.
There are two options in Adjust Length : AdjustmentPrint and Change Settings .
• AdjustmentPrint
After a test pattern is printed, you will measure the discrepancy based on the results of printing.
• Change Settings
No test pattern is printed. Instead, you will measure a document already printed to determine the
discrepancy .
Additionally , two modes are available in both AdjustmentPrint and Change Settings : A:High or
B:Standard/Draft . Choose the mode that suits your particular printing application.
• A:High
This setting is applied when Highest or High is selected in Print Quality in the printer driver .
• B:Standard/Draft
This setting is applied when Standard or Draft is selected in Print Quality in the printer driver .
Note
• Always check the Adj. Priority values before using Adjust Length . ( → P .613)
• Use paper of the same type and size for adjustment as you will use for printing.
Paper to Prepare
Rolls
• An unused roll at least 10 inches wide
• High-precision ruler
Sheets
• One sheet of unused paper of at least A4/Letter size
• High-precision ruler
Perform adjustment as follows.
1. Load the paper .
• Attaching the Roll Holder to Rolls (→P .103)
• Loading Rolls in the Printer (→P .106)
• Loading Sheets in the Printer (→P .136)
Note
• Always make sure the loaded paper matches the type of paper specied. Adjustment cannot be
completed correctly unless the loaded paper matches the settings.
2. On the T ab Selection screen of the Control Panel , press ◄ or ► to select the Settings/Adj.
tab ( ).
Note
• If the T ab Selection screen is not displayed, press the Menu button.
Adjustments for Better Print Quality 619
To Next Page
