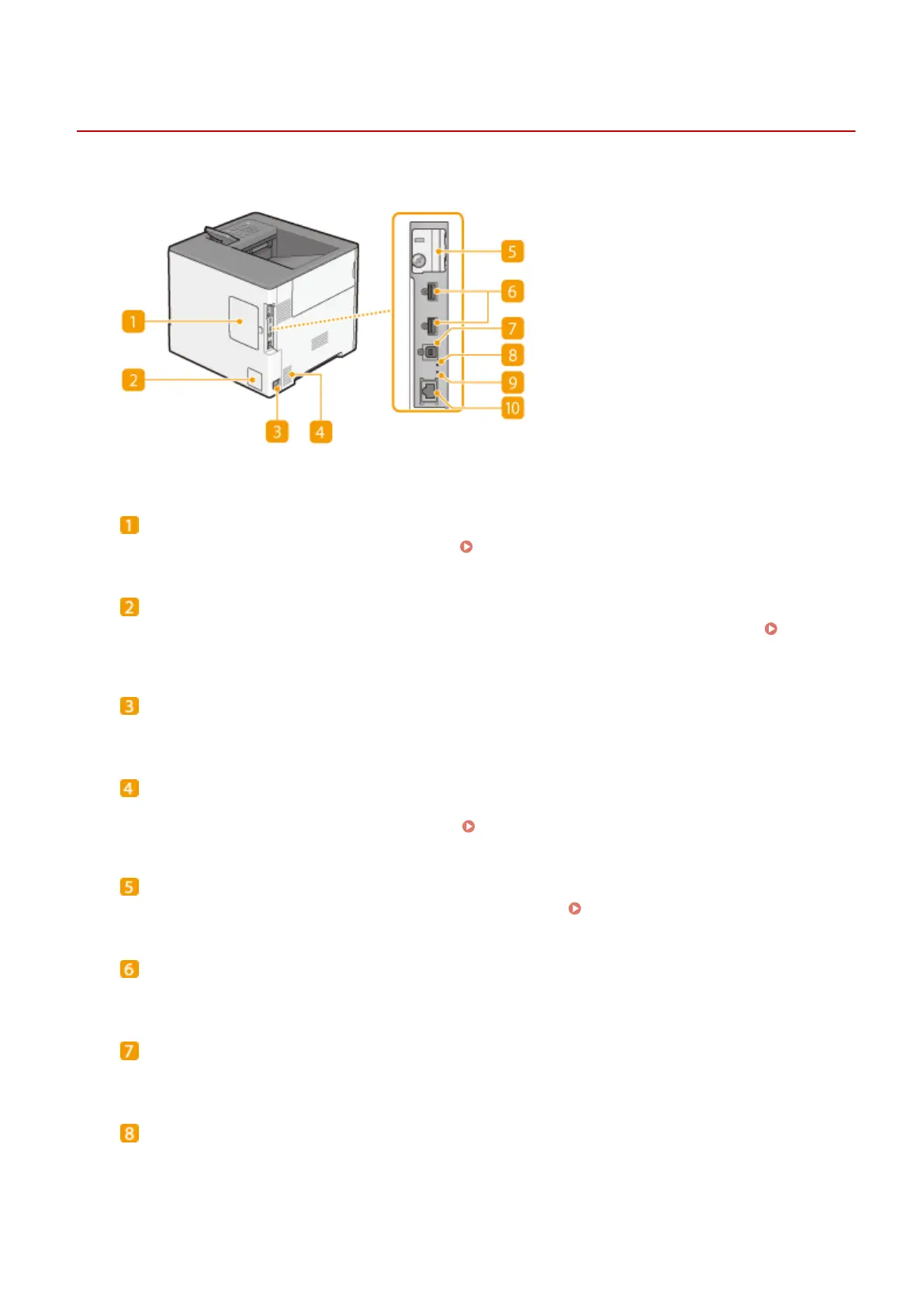

Back Side
0YSF-009
Back cover
Open the back cover to install the optional ROM. Installing the ROM(P. 629)
Rating label
The label shows the serial number, which is needed when making inquiries about the machine. When a
Problem Cannot Be Solved(P. 559)
Power socket
Connect the power cord.
Ventilation slot
Air from inside the machine is vented out to cool down the inside of the machine. Note that placing objects in
front of the ventilation slots prevents ventilation. Installation(P. 3)
SD card slot cover
Open the SD card slot cover when installing the optional SD card. Installing an SD Card(P. 633)
USB port (for USB device connection)
Connect a USB device that is used with MEAP applications.
USB port (for computer connection)
Connect a USB cable when connecting the machine and a computer.
ACT indicator
The ACT indicator blinks while data is being sent or received.
