Appendix B: Parts overview

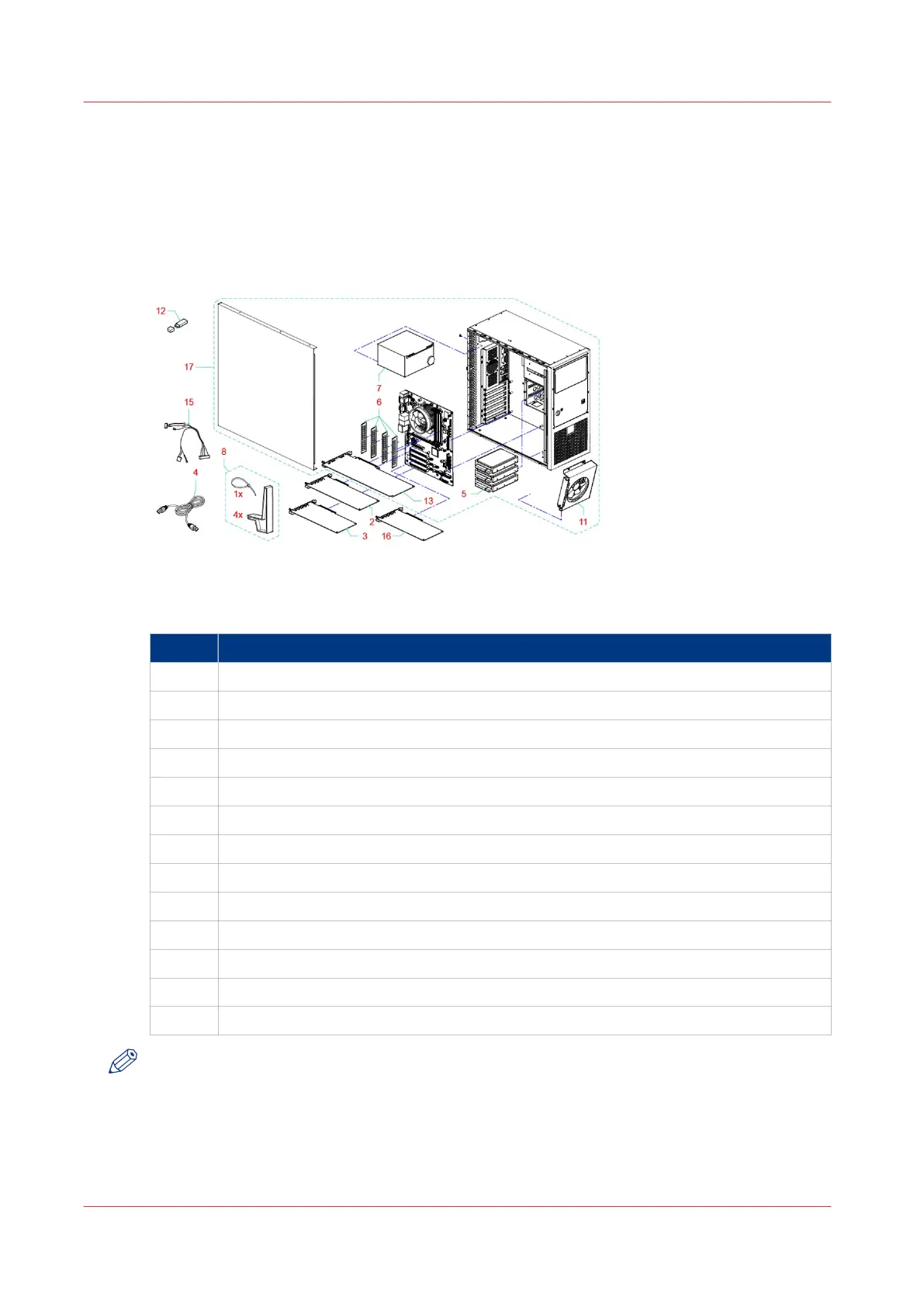

Overview of the service parts
Illustration
Component - function table
No Part
2 PBA DDI IF BOARD
3 PBAP AUX_CONTROL
4 DATACABLE RJ45-RJ45CRSVR SFTP 2.8M
5 HDD 3,5” SATA II 250GB 7200RPM (3X)
6 MEMORY MODULE 4GB DDR3 (4X)
7 POWER SUPPLY 600W
8 PEDESTAL (4X) + TIEWRAP
11 SYSTEM FAN 120MM
12 USB KEY
13 PCI-E X16 GRAPHIC BOARD
15 HARNESS 22W01
16 ETHERNET BOARD ROHS (IPDS)
17 INDUSTRIAL CONTROLLER iBase
NOTE
For the part numbers see the parts catalogue.
Appendix B: Parts overview
132 Chapter 11 - Appendix
PRISMAsync V3.2
