Replace the DDR3 modules
The MB950 board supports four DDR3 memory socket for a maximum total memory of 16GB of
the DDR3 DIMM memory type.
The
PRISMAsync is equipped with 4x4GB DIMM (total memory size 16GB).
NOTE
When servicing components of the
PRISMAsync always wear a grounded strap around your
wrist, to avoid electrostatic discharge that will harm your equipment.
Step Action
1
Remove side cover and middle bracket.
•
Follow the instructions as described in
Access internal components
on page 67.
2
Open the clips by pressing them outward.
•
Firmly press on the clips on the left and the right side of the connector. The DDR3
module will be lifted out of the connector.
3
Align the DDR3 module with memory slot.
4
Install the DDR3 module in memory slot
•
Gently push the DDR3 module in an upright position until the clips of the slot
close, to hold the DDR3 module in place when the DDR3 module touches the bot-
tom of the slot.

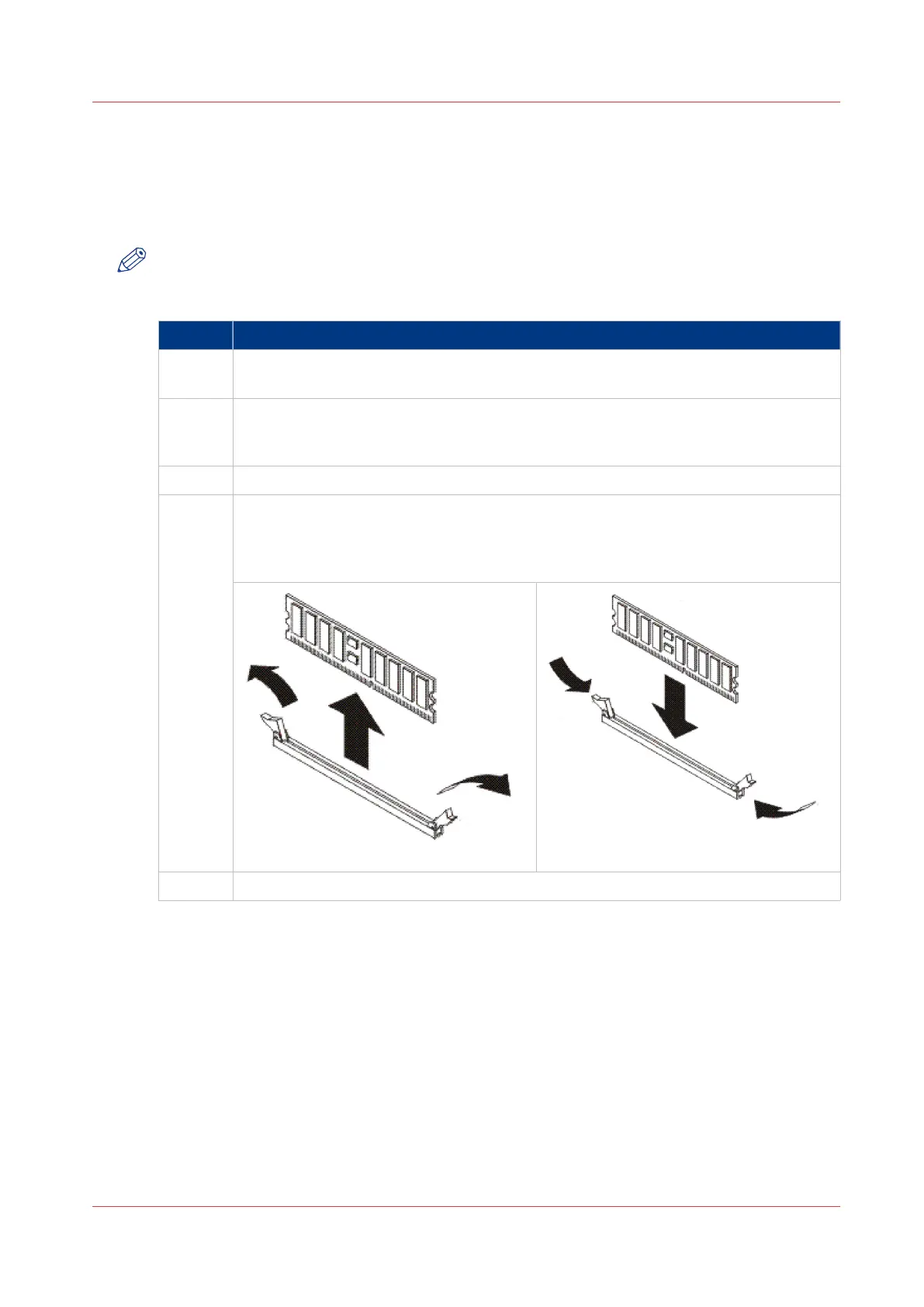

[21] Removing DDR3 module
[22] Inserting DDR3 module
5
Re-install middle bracket and side cover.
Replace the DDR3 modules
Chapter 7 - Service procedures 73
PRISMAsync V3.2
