Hardware components overview
Introduction
The following chapters describe the servicing of the following components:
Boards, cables
DIMMs (memory modules)
Fan
Power supply
Hard disk drive

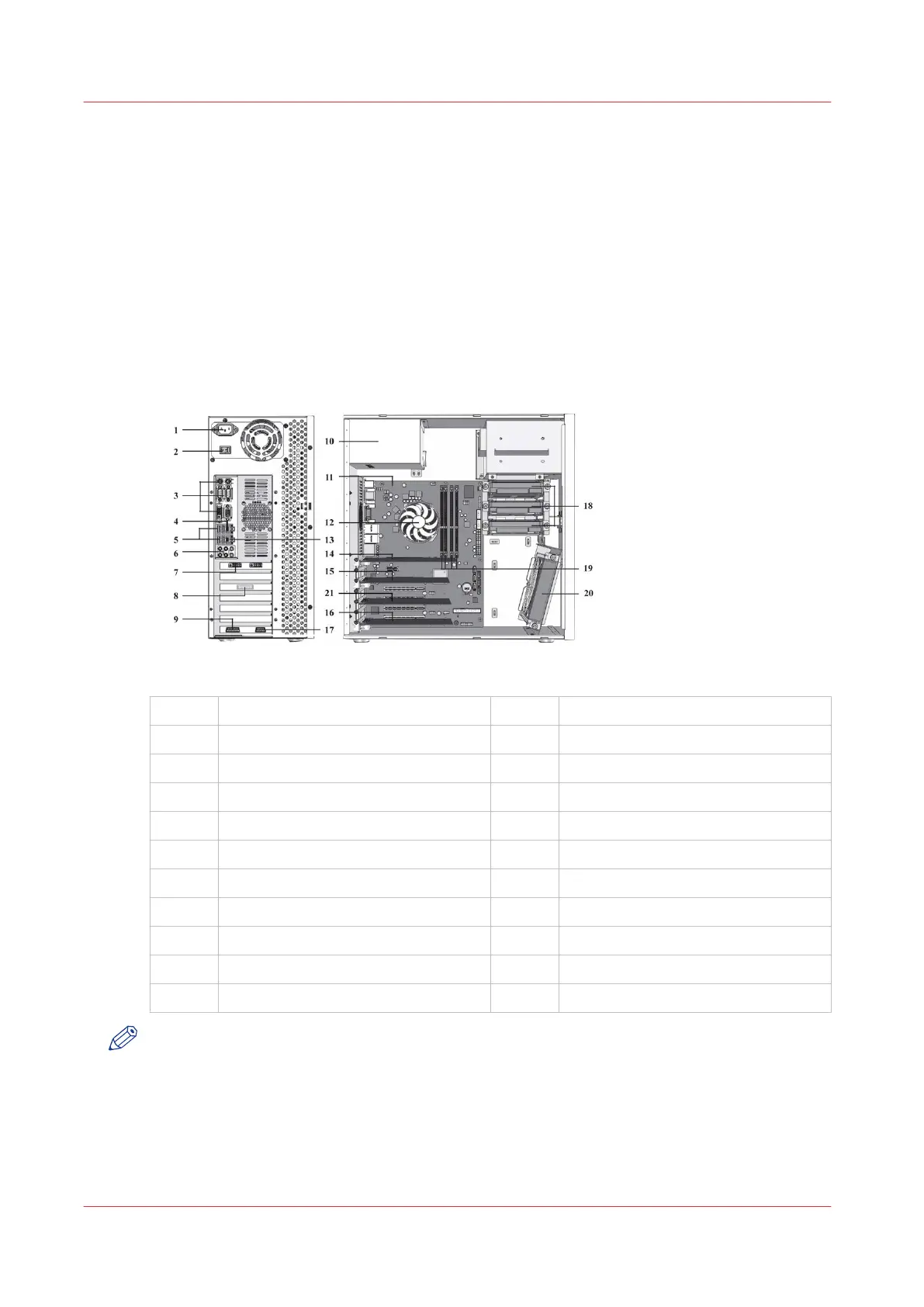

Hardware component overview
1 Power connector 12 CPU cooler
2 On/Off switch 13 CMD connection copier
3 Not used 14 Graphics board (GPU)
4 Network connection 15 DDI Interface board
5 USB ports 16 AUX control board
6 Not Used 17 Attention light connection
7 UI panel (DVI) 18 Hard Disk Drives (250GB)
8 Data connections copier 19 DIMMs
9 UI panel 20 System fan
10 Power supply 21 Network card (IPDS)
11 Motherboard
NOTE
See the
Hardware components overview
66 Chapter 7 - Service procedures
PRISMAsync V3.2
