Install/Replace the Ethernet board
The extra Ethernet board (Intel PRO/1000 GT Desktop Adapter) is needed when IPDS functionality
is enabled (Extra license). The board is needed for the Codishell tool to analyse IPDS-problems. It
can also be used to connect the laptop to the
PRISMAsync.
NOTE
When servicing components of the
PRISMAsync always wear a grounded strap around your
wrist, to avoid electrostatic discharge that will harm your equipment.
Step Action
1
Remove side cover and middle bracket.
•
Follow the instructions as described in
Access internal components
on page 67.
2
Unpack the new board.
3
Remove the fifth metal bracket (starting from the CPU).
•
Use a Philips screwdriver to remove the bracket..
4

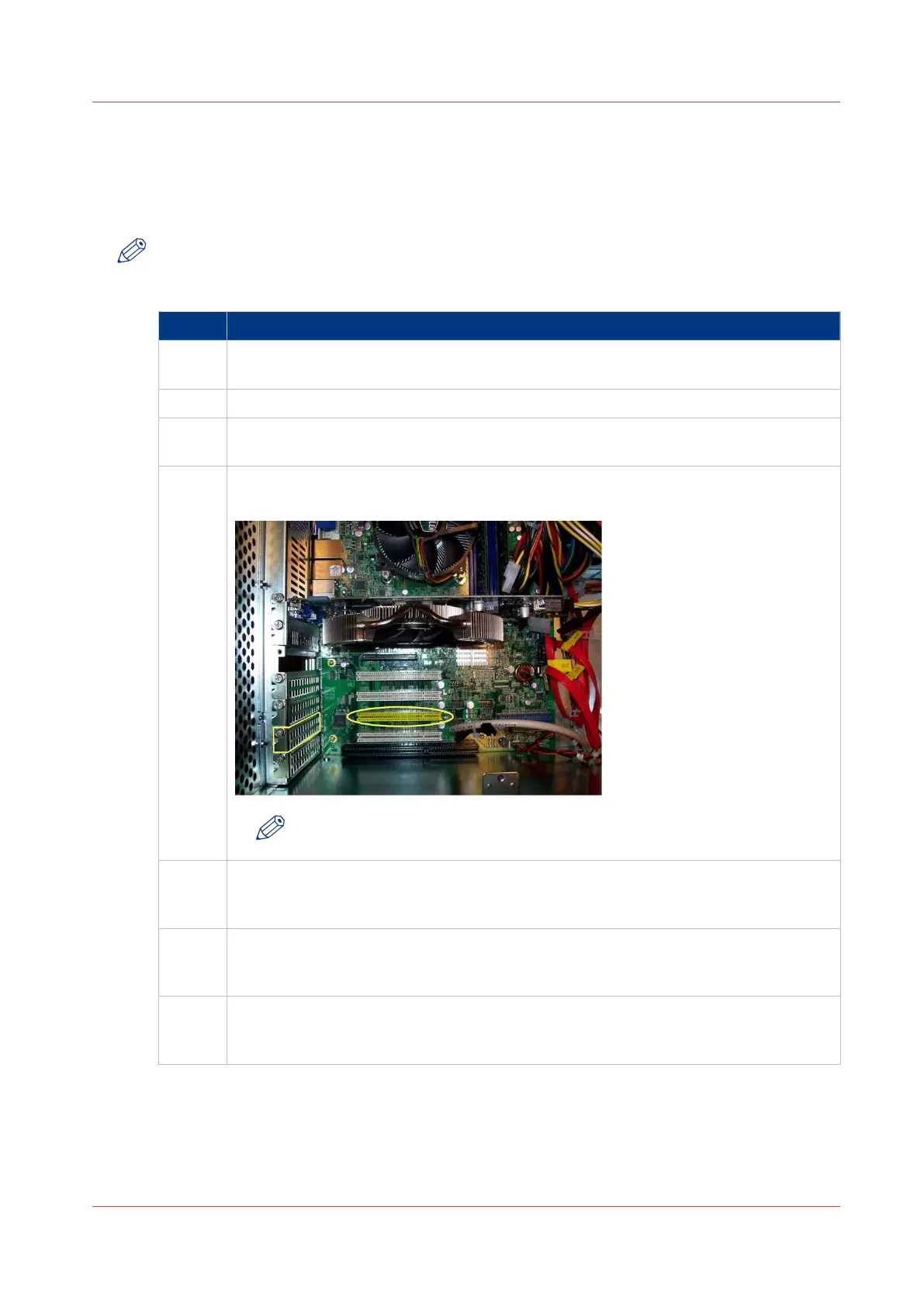

Place the board in the PCI connector.
•
Firmly press the board in the PCI connector.
NOTE
Make sure to use the indicated slot.
5
Fasten the Ethernet board.
•
Fasten the board with a single screw on the PCI bracket side with a Philips screw-
driver.
6
Re-install middle bracket and side cover.
•
Make sure the fixing on the middle bracket is in position. It should fit exactly on the
Ethernet board.
7
Re-install system software
•
If the Ethernet board is installed for the first time (no replacement) there will be no
driver installed for it. Therefore you have to re-install the PRISMAsync software.
Install/Replace the Ethernet board
Chapter 7 - Service procedures 75
PRISMAsync V3.2
