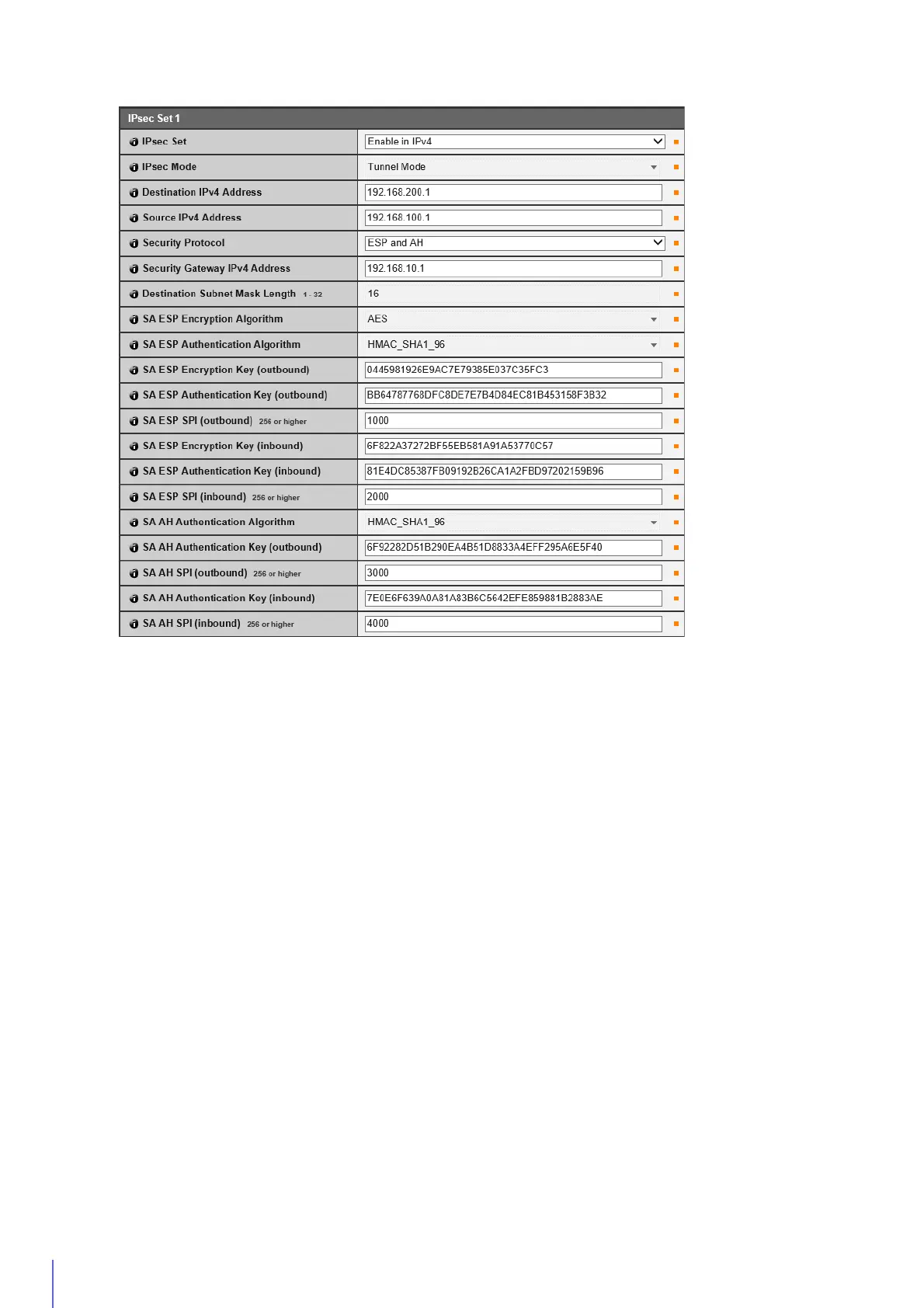

[IPsec Set]
Set whether IPv4 or IPv6 will use or will not use IPsec sets.
[IPsec Mode]
Select the IPsec mode.
[Destination IPv4 Address], [Destination IPv6 Address]
Enter the IP address of the connection destination.
[Source IPv4 Address], [Source IPv6 Address]
Enter the IP address of the source.
[Security Protocol]
Select the IPsec protocol.
If [ESP] is selected, enter only the setting items relating to ESP.
If [AH] is selected, enter only the setting items relating to AH.
If [ESP and AH] is selected, enter all setting items.
[Security Gateway IPv4 Address], [Security Gateway IPv6 Address]
Enter the IP address of the security gateway if [IPsec Mode] is set to [Tunnel Mode].
[Destination Subnet Mask Length] (IPv4), [Destination Prefix Length] (IPv6)
Enter the subnet mask (IPv4) or prefix length (IPv6) when [IPsec Mode] is set to [Tunnel Mode].
When [Security Protocol] Is Set to [ESP] or [ESP and AH]
[SA ESP Encryption Algorithm] to [SA ESP SPI (inbound)] must be set.
[SA ESP Encryption Algorithm]
Set the ESP encryption algorithm to suit the encryption algorithm supported by the device to connect to.
Normally [AES] or [3DES] is recommended.
[SA ESP Authentication Algorithm]
Set the ESP authentication algorithm to suit the authentication algorithm supported by the device to connect to.
