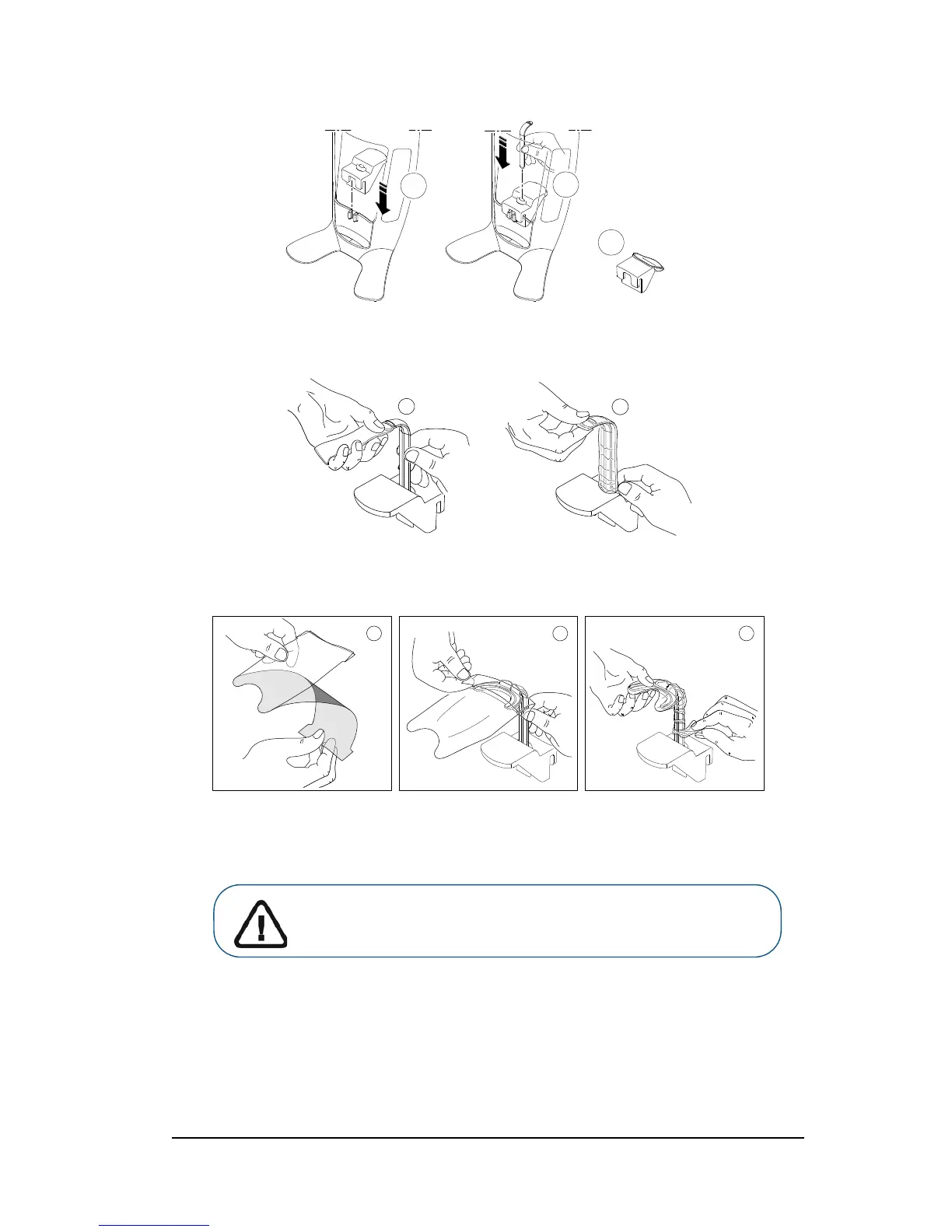

5. Insert a hygienic barrier over the bite block.
• If you are using the standard bite block, fit the hygienic barrier as shown in (C) and (D).
• If you are using the Frankfort guide bite block for panoramic, use the same single use
hygienic sheaths as for use with 3D bite blocks (C), (D), (E).
Make sure that you cover the bite block completely with the hygienic barrier.
A
B a
B b
D
C
E
CD
Important: You must cover the bite blocks with FDA-cleared
protective sheaths that are available from distributors.
