62-11785 3–10
3.7 CHANGING SETPOINT
1. With the system powered up (START/RUN-OFF switch in the START/RUN position) or in PC Mode and the
default screen displayed (press the Back soft key if required):
2. Press the or key to bring the displayed setpoint to the desired value.
TIP: The setpoint will change one degree with each press and release of an arrow key or the setpoint
will scroll if the key is pressed and held.
3. Press the “=” key to save the new setpoint. The MessageCenter will display “SETPOINT CHANGED” for 10
seconds.
4. If the “=” key is not pressed the setpoint screen will flash, the MessageCenter will display “SETPOINT NOT
CHANGED” and then return to original setpoint.
By default, setpoints of -22°F to +95°F (-30°C to +35°C) may be entered using the display mounted keys. The con-
trol system always retains the last entered setpoint in memory. The setpoint will change 1° (one full degree) OR
0.1° (one tenth of a degree - if configured to do so) for each press and release of the or key.
NOTE
The control system may be configured with a minimum and/or maximum setpoint other than the
default values listed above. “MAX SETPOINT HAS BEEN REACHED” or “MIN SETPOINT HAS BEEN
REACHED” will display in the MessageCenter when either of these conditions is reached.
Setpoint may be changed any time the START/RUN - OFF switch is in the START/RUN position, or when the unit
is in PC Mode EXCEPT when:
Viewing the Alarm List, Data List or Functional Parameters OR
When the unit is in Pretrip OR
When the unit is in Sleep Mode.
Pressing the = key will cause the new displayed setpoint value to become active and “SETPOINT CHANGED” will
be displayed. If the new value is not entered, after 10 seconds of no display mounted key activity, the entire display
and Light Bar will flash (with “SETPOINT NOT CHANGED” displayed) and then revert back to the last entered set-
point. All other keys are active at this time and if a key is pressed while the display is flashing, the flashing will stop,
and the requested function will be performed.
TIP
The setpoint may be changed quickly by pressing and holding the or key until the desired set-
point is reached. The longer the key is held, the faster the setting will change.

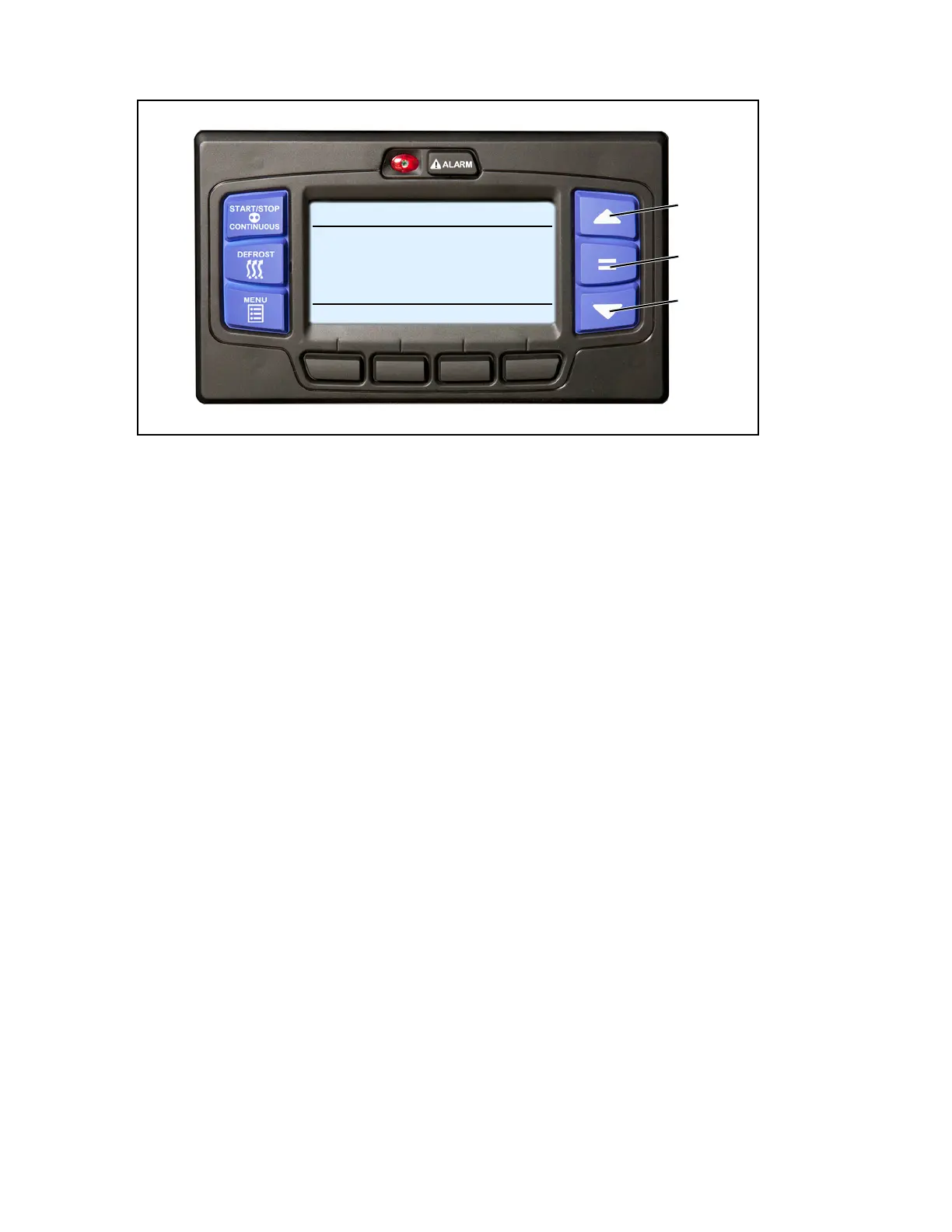

2
1
2
START/STOP ELECTRIC COOL
BOX TEMPERATURE
o
FSETPOINT
o
F
STATUS OK
34.3
34
