2–17 62-11785

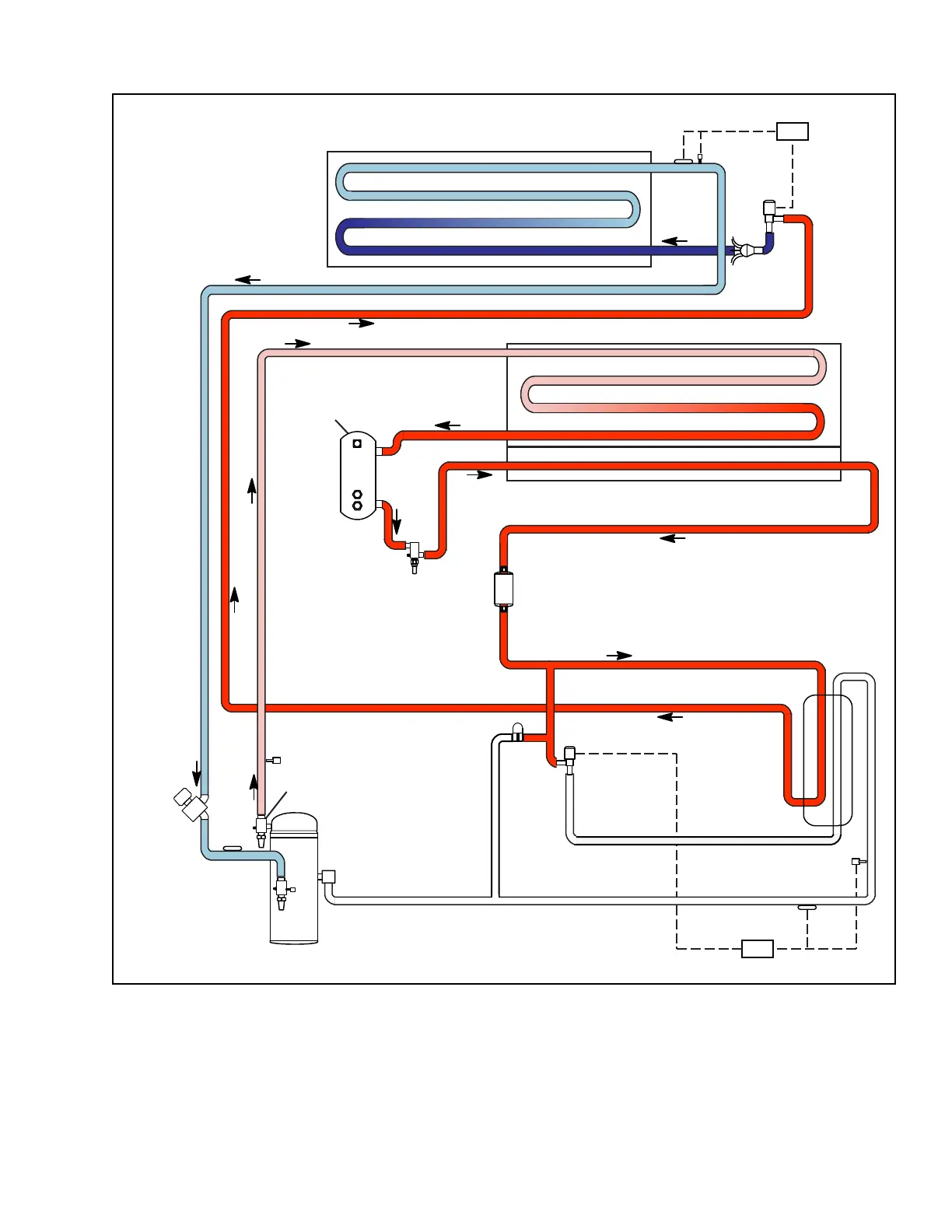

Figure 2.8 Refrigeration Circuit Standard Mode
Evaporator
Condensor
Reciever
Subcooler
Liquid Line
Service Valve
Filter Drier
Economizer
ECOP
ECOT
ECXV
LIV N/C
Compressor
Economizer
Connection
CSMV
Compressor Discharge
Service Valve
CST
Fusible
Plug
EVOT
EVOP
Distributor
EVXV
MM
CDP
MM
