10–1 62-11785
SECTION 10
WIRING

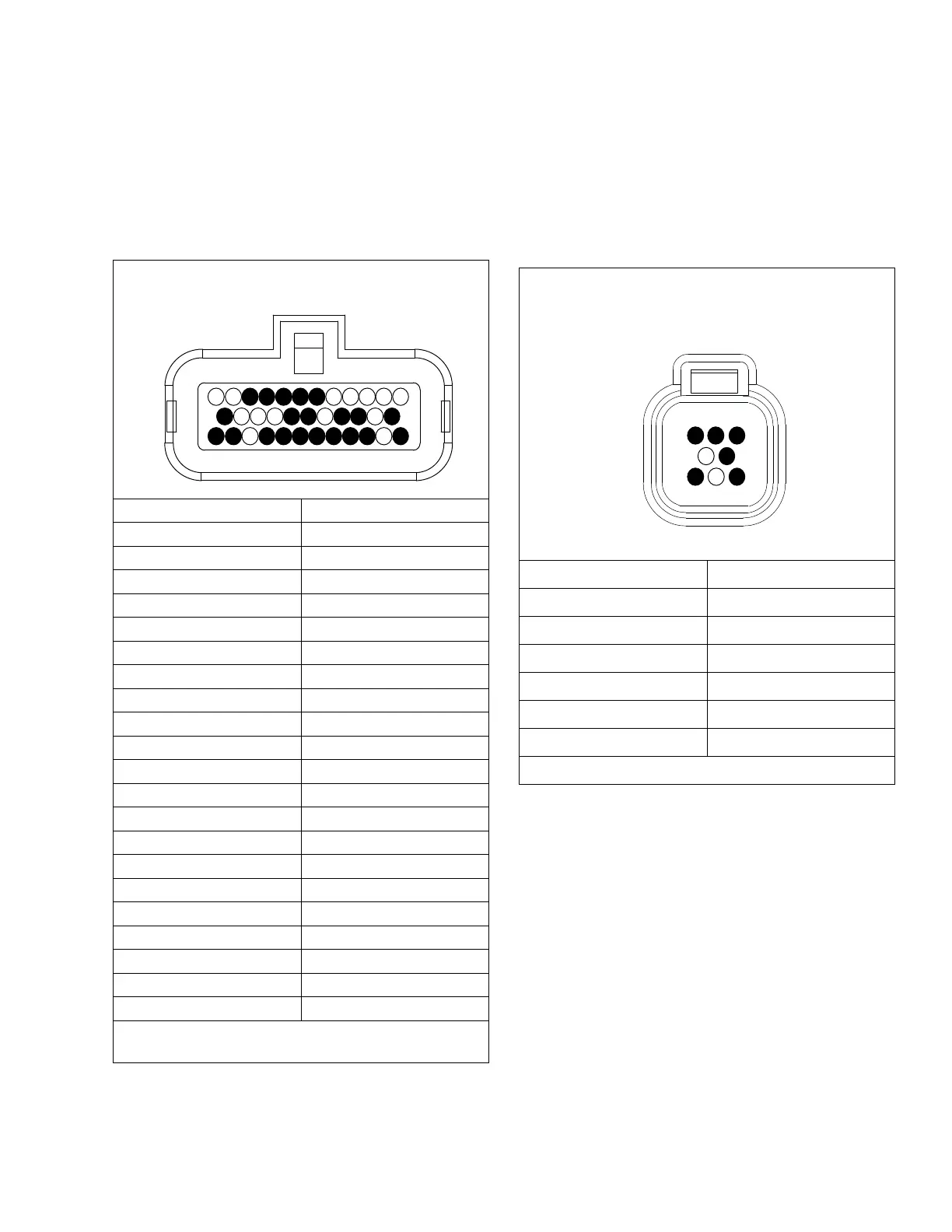

10.1 HARNESS CONNECTOR WIRING
NOTE
All illustrations provided in this Section are looking at the connector connection end (with the wires in
the back).
Component Terminal
SAT PWR-A 6
LB-B 7
3MM-34 8
3MM-23 9
HVB7-E 10
PCM-35 13
HVB7-F 15
3MM-18 16
SP-17 18
1MM-1 19
3MM-15 23
AFAS-A (F6-A) 24
3MM-13 26
3MM-14 27
3MM-28 28
2MM-12 29
2MM-23 30
2MM-29 31
1MM-6 32
SP-18 34
PCM-13 35
Unused Terminals: 1, 2, 3, 4, 5, 10, 11, 12, 14, 17, 20,
21, 22, 25, 33
PCM ï WHITE
1
12
24
35
Component Terminal
PCM-19 1
HVB7-C 2
SP-15 3
HVB7-D 4
PCM-32 6
SP-16 8
Unused Terminals: 5 & 7
1MM ï BLACK
1
3
6
8
