62-11785 10–2

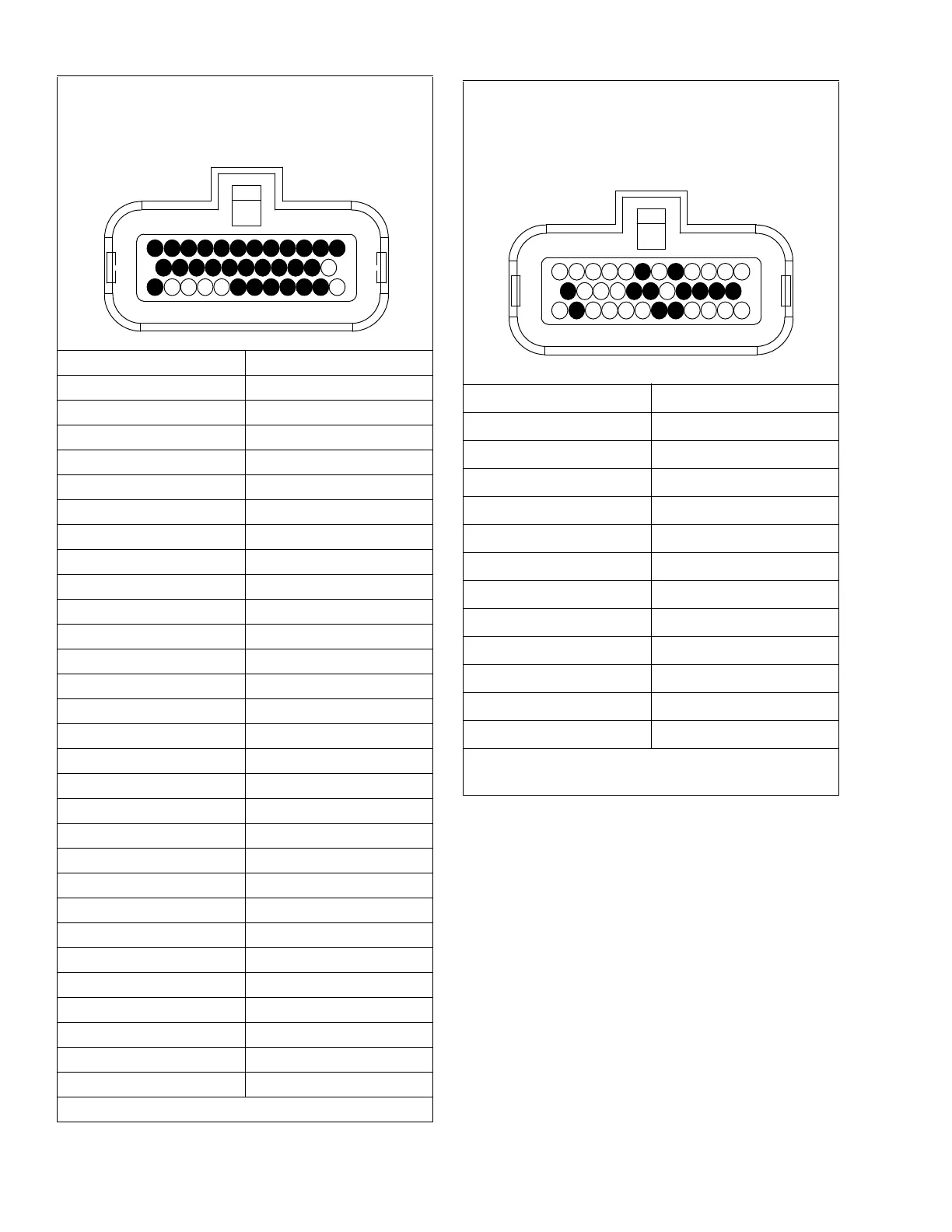

Component Terminal
AAT-B 1
AAT-A 2
DP16-G / 1RAT-A 3
DP16-H / 1RAT-B 4
DP16-C / 1SAT-A 5
DP16-D / 1SAT-B 6
DP16-E / EVOT-A 7
CDT-B 8
CSP-3 9
CDP-3 10
DP16-B / 1DTT-A 11
PCM-29 12
ECOP-3 14
ECOT-B 15
CST-B 16
DP16-S / EVOP-3 17
DP16-F / EVOT-B 18
CDT-A 19
CSP-1 20
CDP-1 21
DP16-A / 1DTT-B 22
PCM-30 23
DP16-P / EVOP-1 25
ECOT-A 26
CST-A 27
ECOP-1 28
PCM-31 29
SP-20 30
SP-24 35
Unused Terminals: 13, 24, 31-34
2MM ï BLACK
1
12
24
35
Component Terminal
LIV-1 5
LB-H 7
PCM-26 (AFAR) 13
PCM-27 14
PCM-23 15
SP-23 16
PCM-16 18
DAS Common (A) 19
PCM-9 23
PCM-28 28
DAS Open (B) 29
PCM-8 34
Unused Terminals: 4, 5, 8, 9, 12, 17, 20-22, 24-27, 30-
33 & 35
3MM ï GRAY
1
12
24
35
