10–3 62-11785

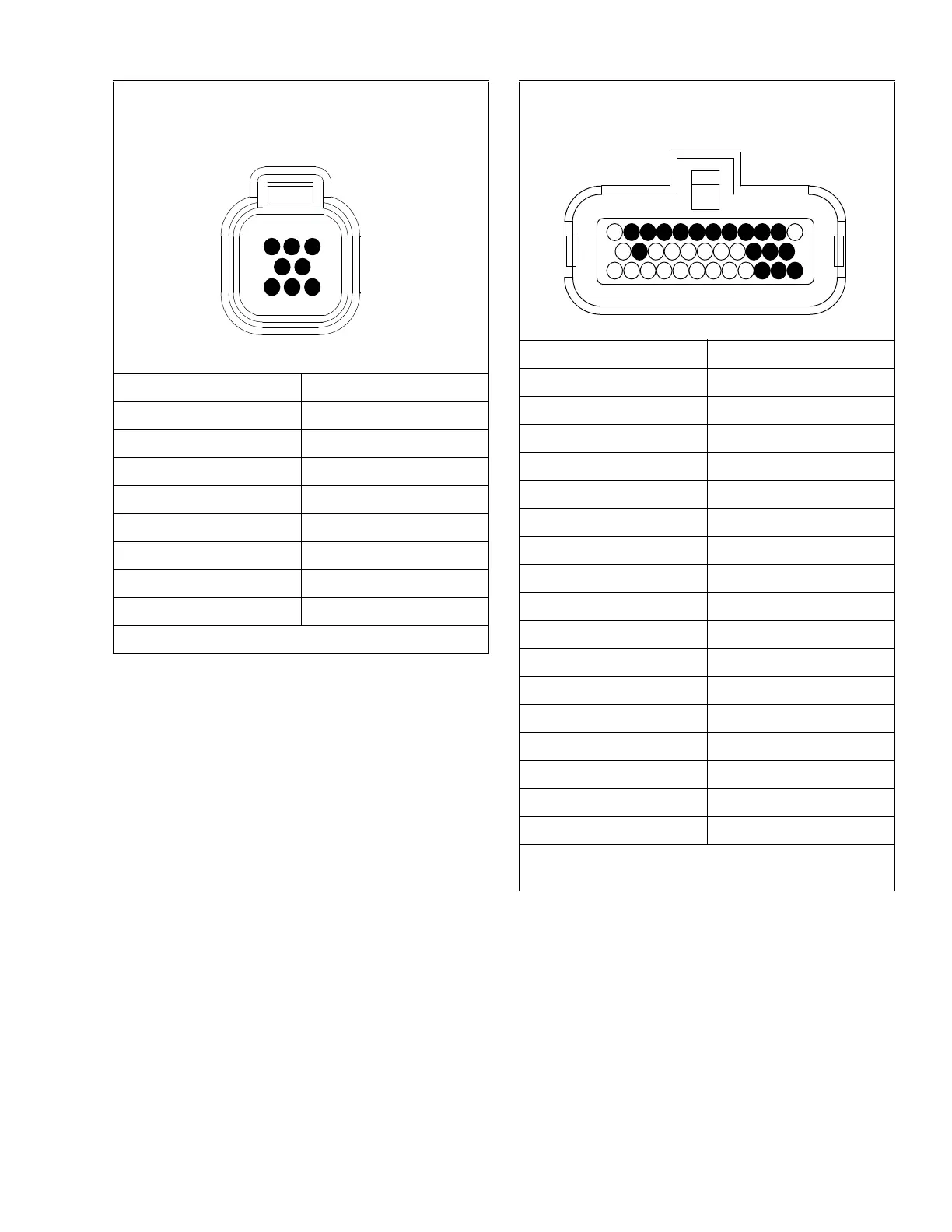

Component Terminal
SP-15 1
DM-2 (CAN-HI) 2
DM-1 (LOGIC GND) 3
DM-6 (CAN-LO) 4
HVB7-H 5
SP-16 6
HVB7-G 7
DM-10 (LOGIC PWR) 8
Unused Terminals: None
1SVM ï BLACK
1
3
6
8
Component Terminal
CSMV-A 2
CSMV-B 3
CSMV-C 4
CSMV-D 5
DP16-N / EVXV-E 6
DP16-J / EVXV-A 7
DP16-K / EVXV-B 8
DP16-L / EVXV-C 9
DP16-M / EVXV-D 10
SP-17 11
DS-A 13
REM-A* 14
REM-C* 15
SP-18 22
DS-B 24
REM-B* 25
REM-D* 26
Unused Terminals: 1, 12, 16-21, 23, 27-35
*Option
2SVM ï BLUE
1
12
24
35
