3.21 REMOTE PANEL

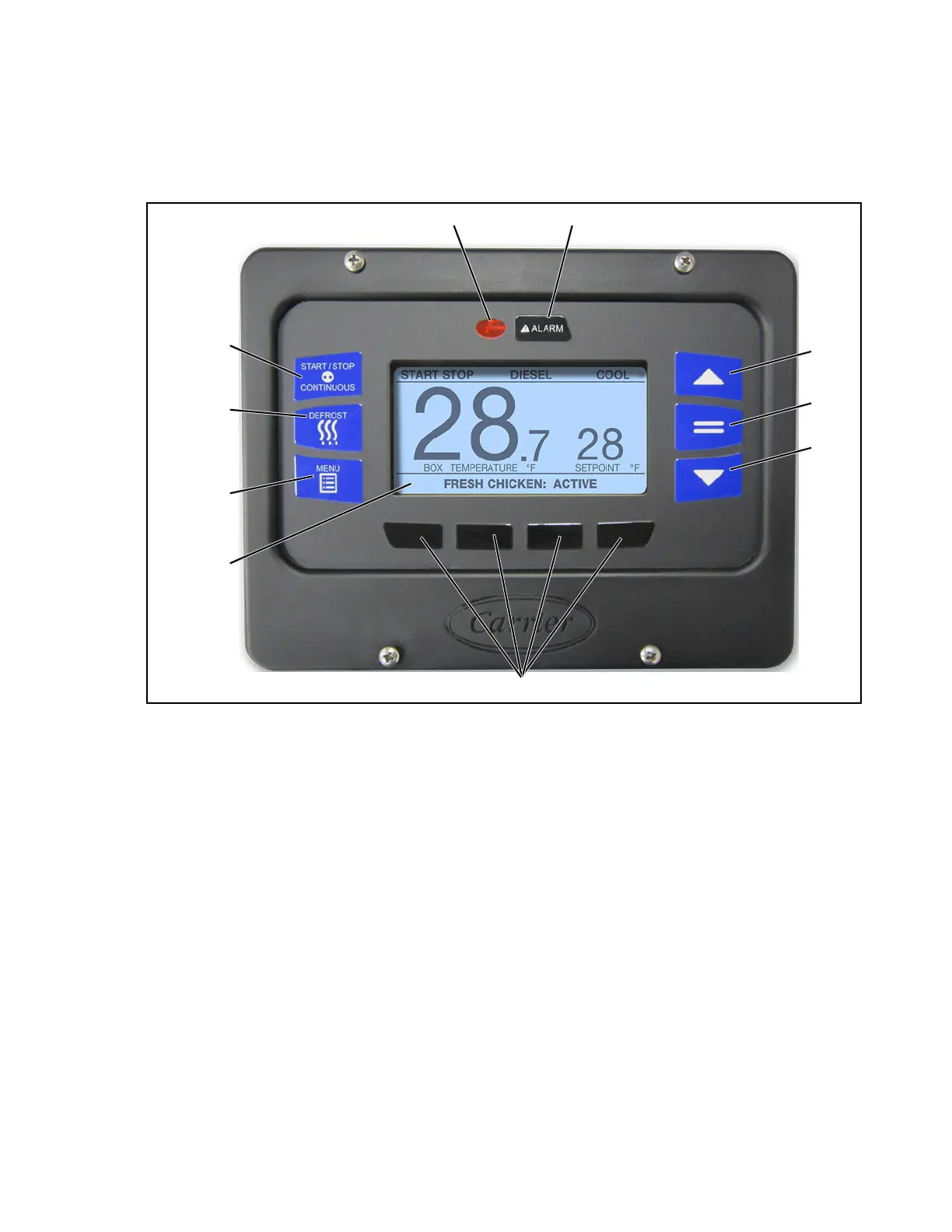

The unit may be fitted with an optional remote control panel. The remote panel, which is very similar to the display
module, displays compartment setpoints, compartment temperatures and operating modes (heat, cool or defrost).
The setpoint may be modified and the unit may be started and stopped using the remote panel. This compact remote
panel can be mounted to suit the individual operator’s preferences - on the front bulkhead, or in the compartment
(even in the wall itself). Remote Panel keys, soft keys and alarm indicators are in the same locations as the main APX
display module.
1. MENU key
2. DEFROST key
3. START/STOP - CONTINUOUS Key
4. Alarm LED
5. Alarm Key
6. “=” (Select) Key
7. Arrow Keys
8. Soft Keys
9. Display
- - - - -
The Remote Panel can be used to:
• Turn the unit On/Off
• Check compartment temperatures
• Check and change setpoints
• Initiate manual defrost
• Check mode of operation
• Initiate Pre-trip
The Remote Panel cannot be used to:
• Enter Advance User and Technician modes
• Access any USB Functions; USB menus, PC Mode, Print
The Remote Panel does not have these features:
• There is no USB port on the remote panel
• There is no SROS (Start/Run/Off) switch at the remote panel. Remote Panel unit ON/Off is controlled by the
“UNIT ON/OFF” soft key (replaces the Engine Hours soft key in the main display)
