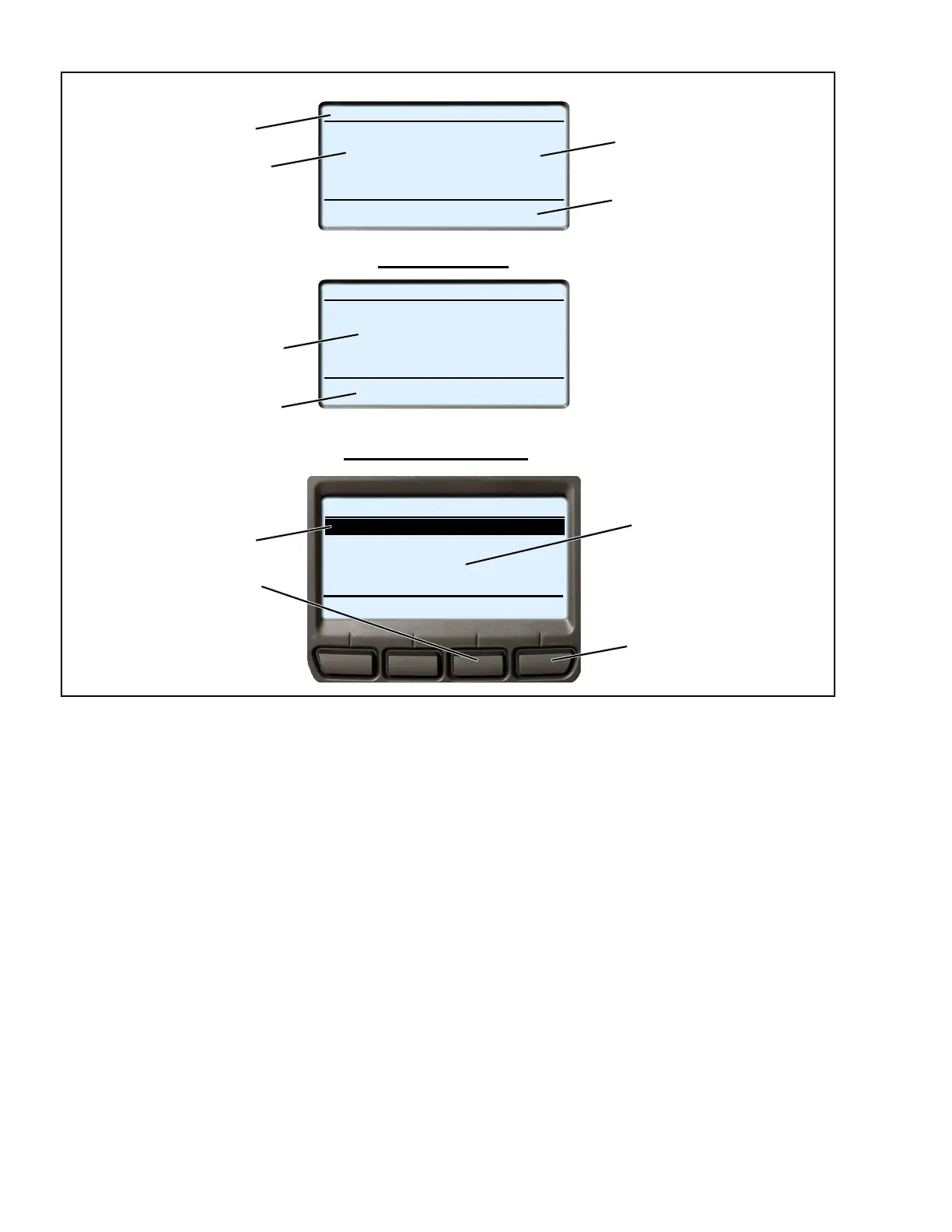

3.2 DISPLAY SCREENS
1. Status Bar
2. Box Temperature
3. Setpoint
4. Message Center
5. Operator Message Panel
6. Soft Key Descriptions
7. Highlight - White letters on black background
8. BACK key - Used to return to previous screen
9. EXIT key - Used to return to the default screen
10. The position of the highlighted item and total number of items in the list is displayed in the status bar. Up to
5 items may be displayed at one time. Press the ▼ key to view additional items, or the ▲ key to scroll back
up the list. “END OF LIST” will be displayed after the last item in the list.
START/STOP ELECTRIC COOL
BOX TEMPERATURE
o
FSETPOINT
o
F
STATUS OK
34.3
34
START/STOP ELECTRIC COOL
Viewing Menu Soft Key
INTELLISET
PRETRIP
HOUR
METER
UNIT
DATA
Selections
Press Menu Key to Scroll
SAMPLE SCREEN (1 OF 3)
DISPLAYED ITEM #1
DISPLAYED ITEM #2
DISPLAYED ITEM #3
END OF LIST
BACK
EXIT
Default Screen
Typical Menu Screen
1
2
3
4
5
6
7
8
9
10
